Description

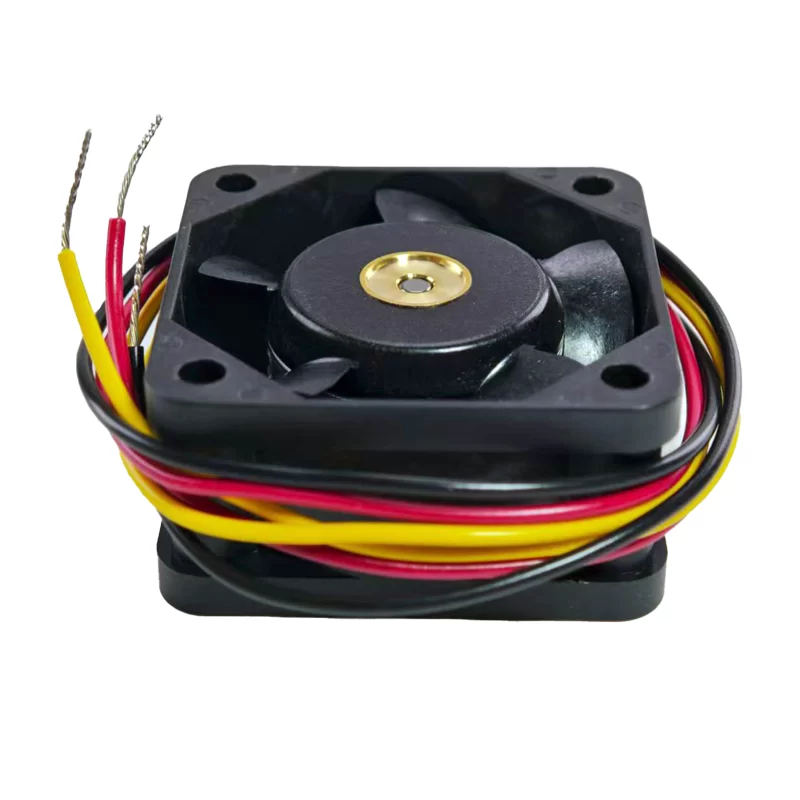

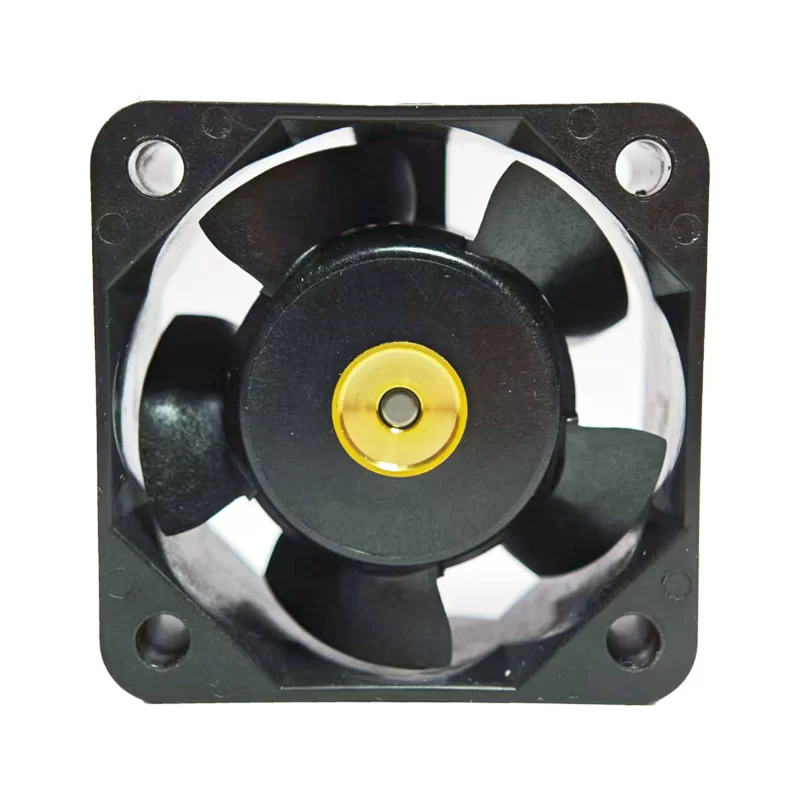

The Sanyo Denki 109P0424H6D01 is a 24V DC Axial Fan with dimensions of 40x40x20mm, belonging to the San Ace 40 series. It draws 0.07A (1.68W), spins at 8300RPM, and delivers an airflow of 14.0m³/h (8.23CFM) with a static pressure of 69.64Pa (0.280IN H2O), while producing a noise level of 35dB(A). This fan features durable ball bearings, and its frame and impeller are constructed from plastic. It includes motor protection against locked rotor and reverse polarity, and comes with a 3-wire termination that provides a pulse sensor output for speed monitoring. It is widely used in compact electronic devices, small servers, networking equipment, and various industrial cooling applications where space is limited.
109P0424H6D01 Fan Parameters
Model: 109P0424H6D01
Manufacturer: Sanyo Denki
Type: DC Axial Fan
Dimensions: 40 x 40 x 20 mm
Nominal Voltage: 24 V DC
Operating Voltage Range: 13.2 .. 27.6 V DC
Rated Current: 0.07 A
Power Consumption: 1.68 W
Speed: 8300 RPM
Airflow: 14.0 m³/h (8.23 CFM)
Static Pressure: 69.64 Pa (0.280 IN H2O)
Noise Level: 35 dB(A)
Bearing Type: Ball Bearing
Frame Material: Plastic (UL94V-0 PBT)
Impeller Material: Plastic (UL94V-0 PBT)
Min. Ambient Temperature: -10 °C
Max. Ambient Temperature: 70 °C
Life Expectancy: 40000 h at 60°C
Series: San Ace 40
Termination: 3-wire leads
Motor Protection: Locked Rotor Burnout Protection, Reverse Polarity Protection
Features: Pulse Sensor
Approval: UL, CSA, TUV, CE
Application: Compact electronic devices, small servers, networking equipment, industrial control panels, and other space-constrained cooling solutions.
