Description

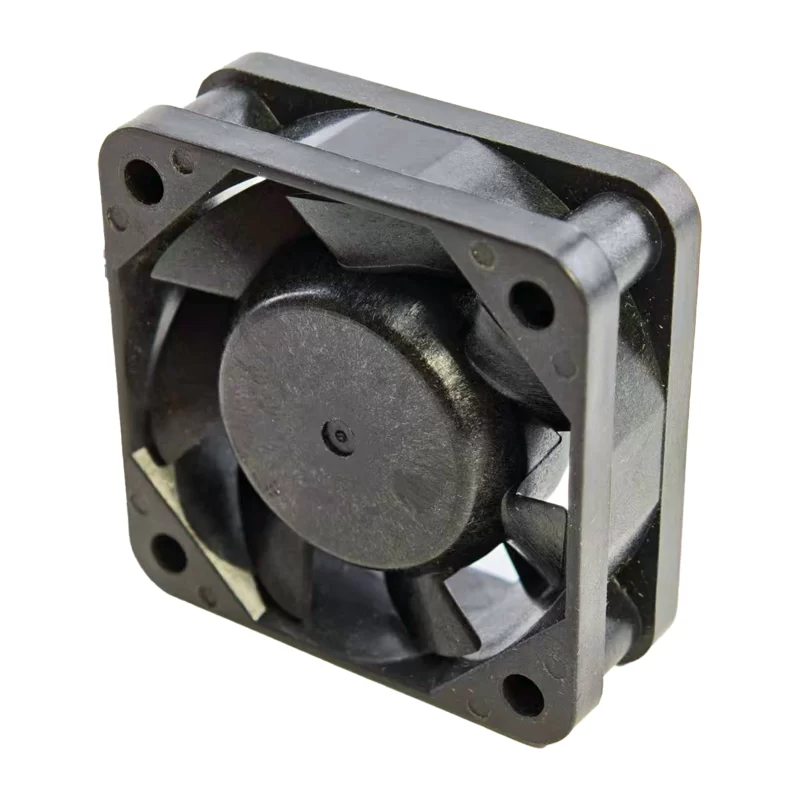

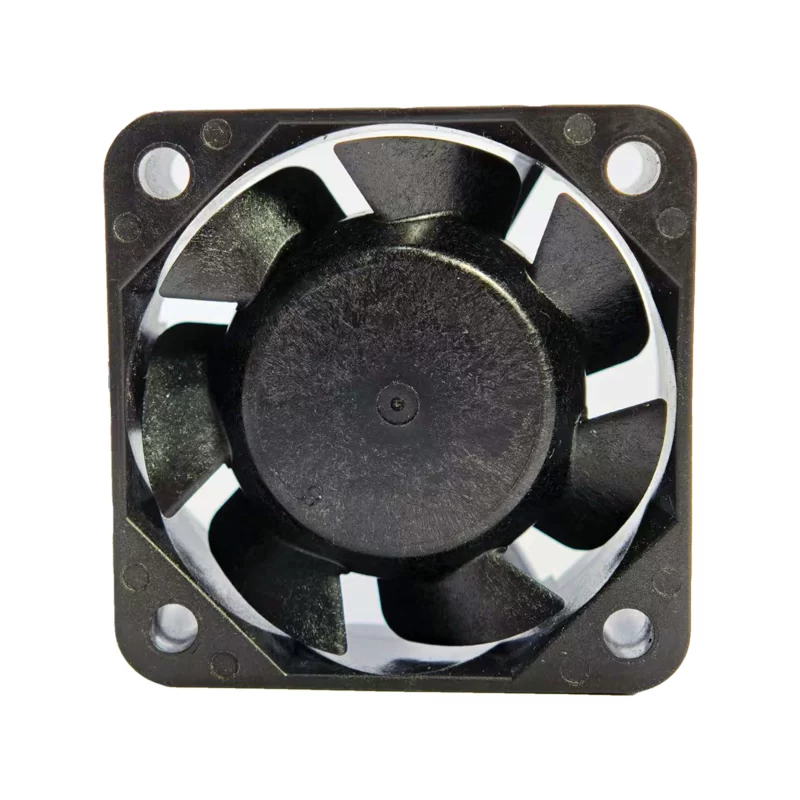

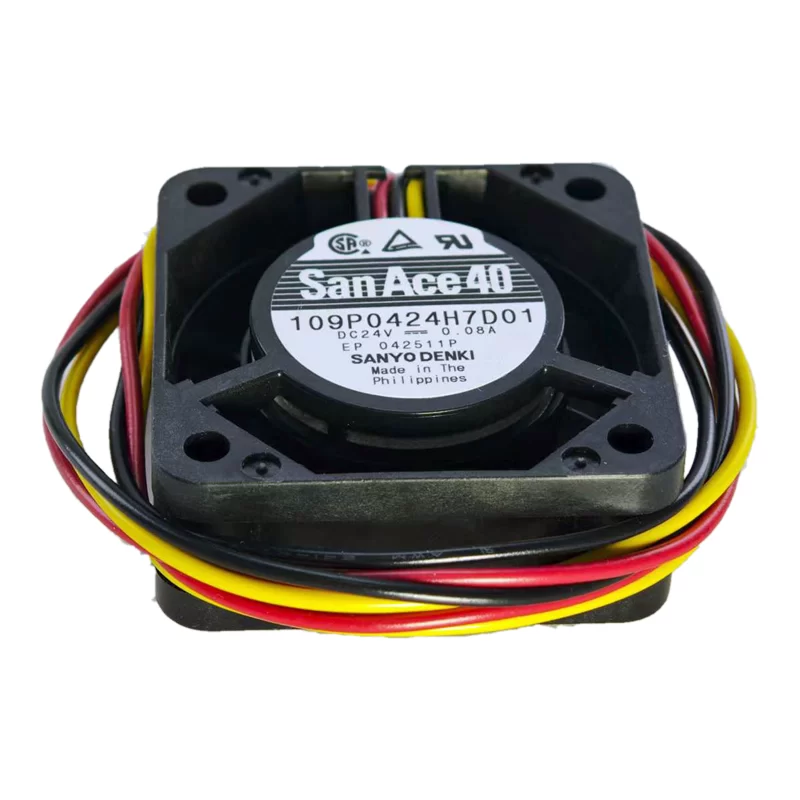

The Sanyo Denki SanAce40 109P0424H7D01 is a compact, high-efficiency DC axial fan with dimensions of 40 x 40 x 15 mm. Designed for quiet operation, it provides 6.4 CFM (10.9 m³/h) of airflow at 7700 RPM with a low noise level of 28 dB(A). It operates on a voltage range of 20.4-27.6V and is built with durable plastic materials. The fan’s three-wire termination provides a dedicated speed sensor for monitoring.
109P0424H7D01 Fan Parameters
Manufacturer: Sanyo Denki
Series: SanAce40
Model: 109P0424H7D01
Fan Type: DC Axial Fan
Dimensions: 40 x 40 x 15 mm
Rated Voltage: 24 VDC
Voltage Range: 20.4-27.6V
Current Rating: 0.08 A
Power Consumption: 1.92 W
Airflow: 6.4 CFM (10.9 m³/h)
Static Pressure: 75.5 Pa (0.303 inch H₂O)
Speed: 7700 RPM
Noise Level: 28 dB(A)
Termination: Three Wire Leads
Features: Speed Sensor (Tachometer/FG signal)
Housing Material: Plastic
Impeller Material: Plastic
Operating Temperature: -20 °C ~ 70 °C
Lifetime @ Temp: 6000 Hours @ 60 °C, 90000 Hours @ 40 °C
Weight: 32 g
Application: The 109P0424H7D01 is suitable for cooling in Fanuc equipment, compact electronics, server blades, and other applications where space is limited and low noise is critical.
