Description

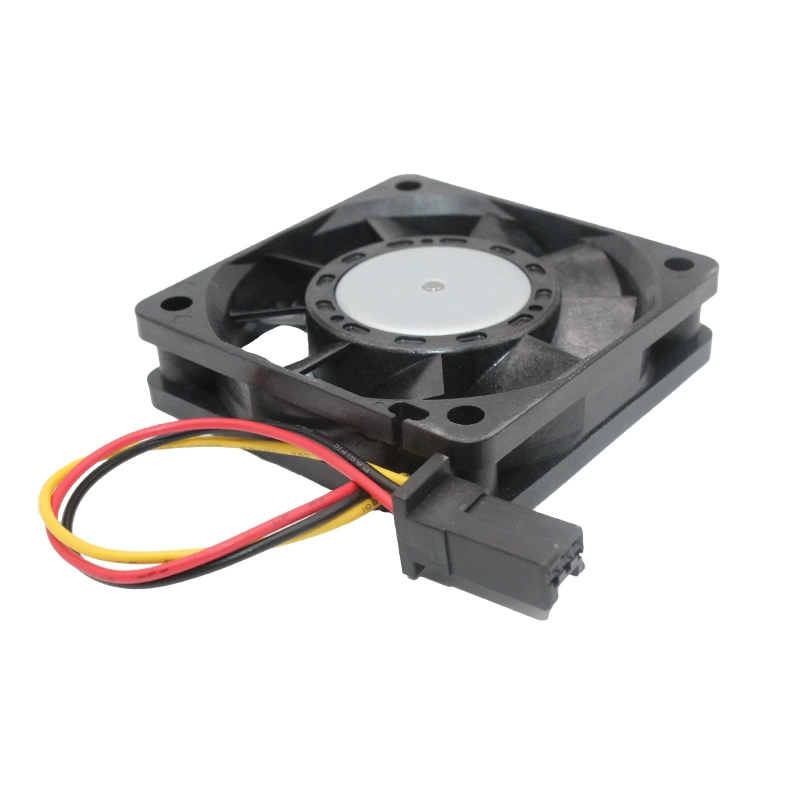

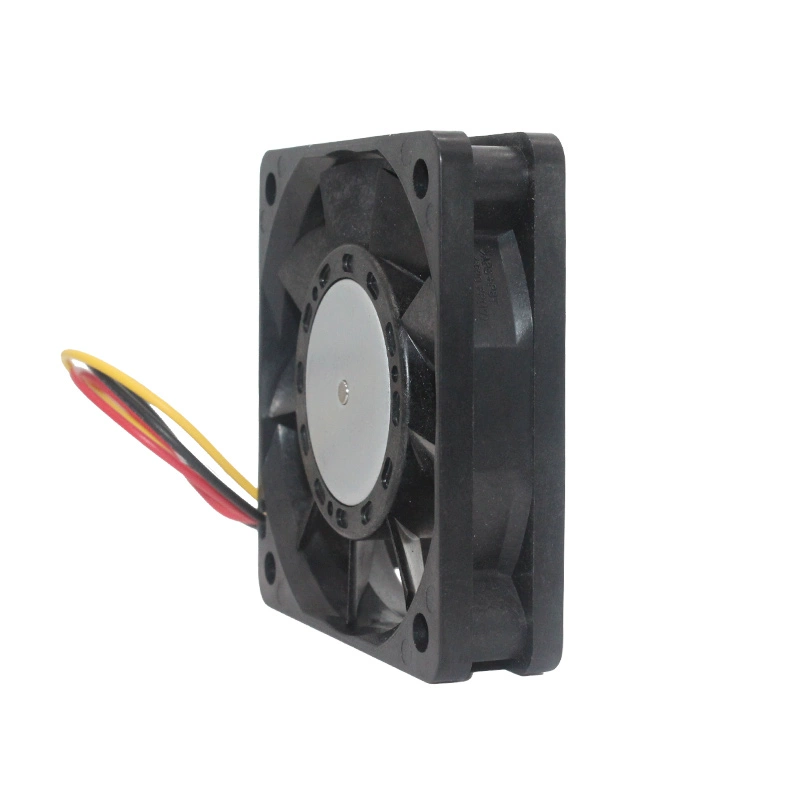

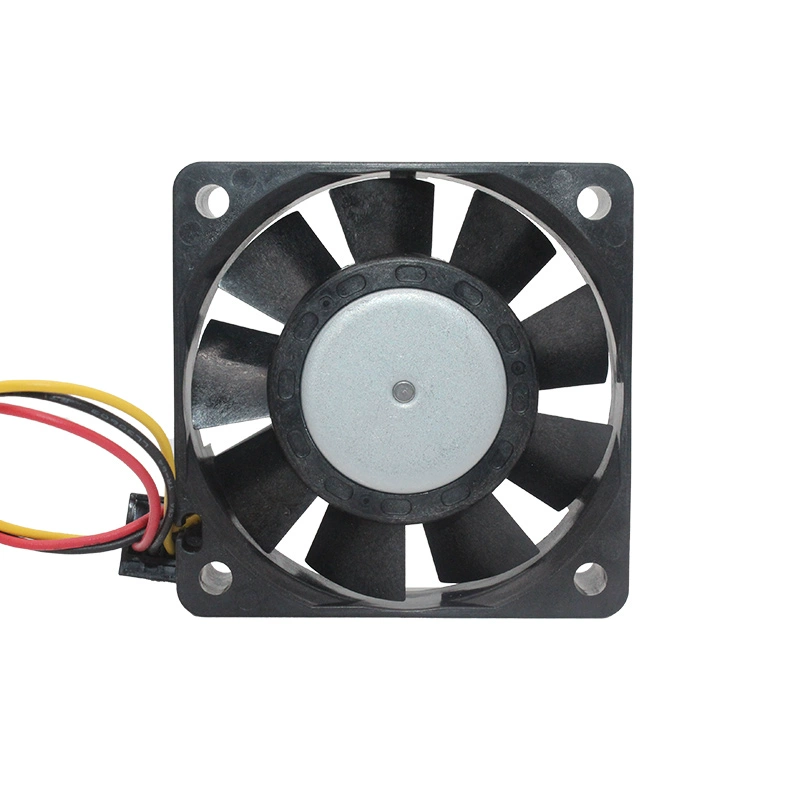

The Sanyo Denki San Ace 60, model 109P0624S701, stands out as a compact yet powerful cooling solution, ideal for applications demanding effective heat dissipation. This 60x60x15mm fan operates on 24VDC, delivering a robust 16.9 CFM of airflow and 0.236 in H₂O of static pressure at 5000 RPM, all while maintaining a relatively low noise level of 36.0 dB. Equipped with durable ball bearings, it boasts an impressive 40,000-hour life expectancy at 60°C. Essential features like locked rotor protection and a speed sensor provide critical system monitoring and safety. With its blend of performance, reliability, and protective capabilities, the 109P0624S701 is an excellent choice for keeping your vital electronics cool.
109P0624S701 original authentic Sanyo 6015 system fan 24V 0.08A three-wire speed measurement 60X15MM
Product Model: 109P0624S701
Manufacturer: Sanyo Denki
Series: San Ace 60
Type: Tubeaxial DC Brushless Fan
Dimensions: 60mm L x 60mm H x 15mm W
Rated Voltage: 24 VDC
Operating Voltage Range: 14 to 27.6 VDC
Current Rating: 0.08 A
Power: 1.92 W
Rated Speed: 5000 RPM
Air Flow: 16.9 CFM
Static Pressure: 0.236 in H₂O
Noise Level: 36.0 dB
Bearing Type: Ball Bearing
Features: Locked Rotor Protection, Speed Sensor
Termination: 3 Wire Leads
Operating Temperature: -20 to 70°C
Life Expectancy: 40,000 hours
Material: Plastic frame and impeller
Approval Agencies: CSA, TUV, UL
