Description

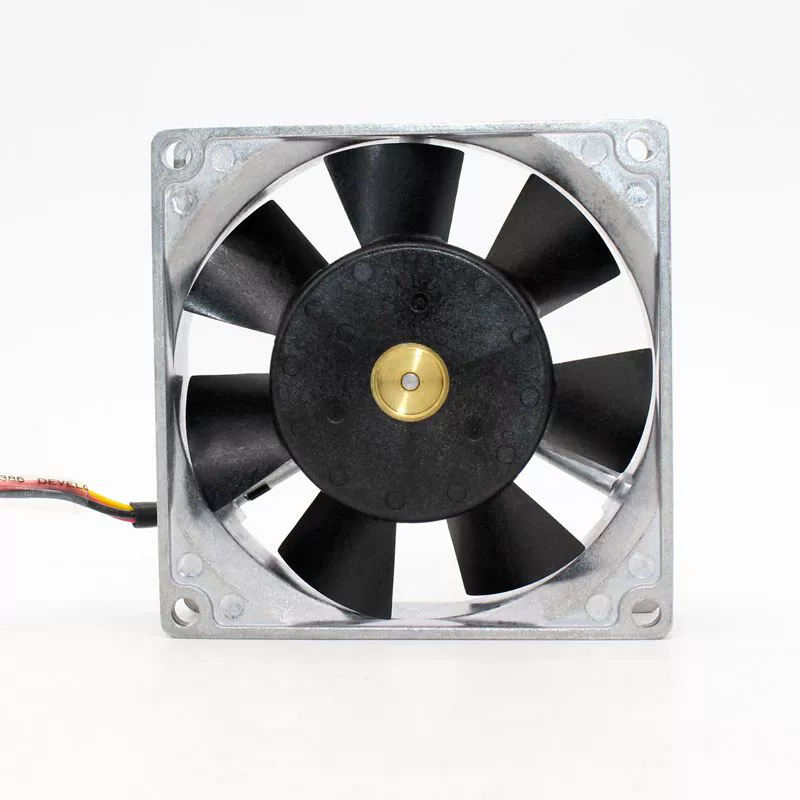

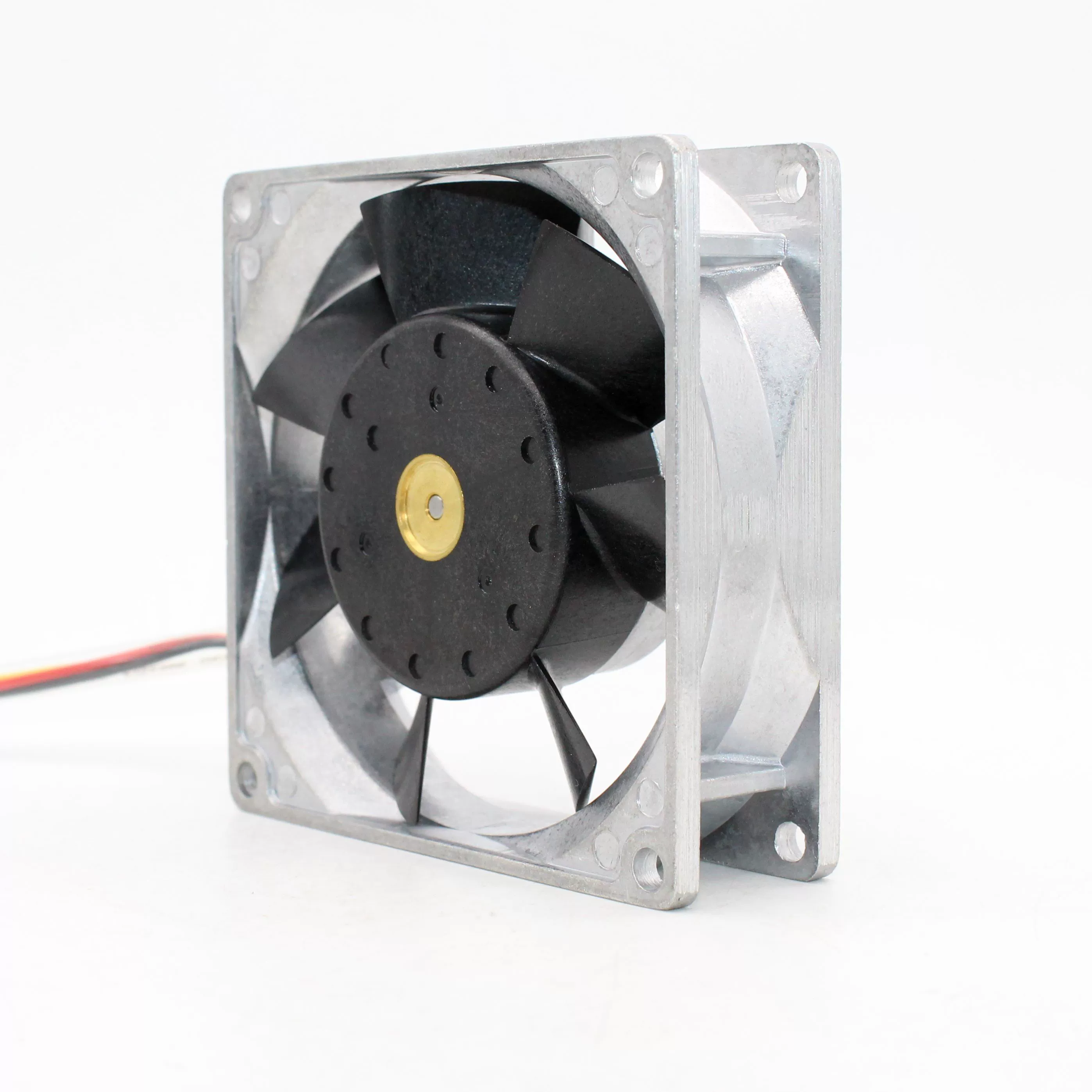

The Sanyo Denki 109P0812F401 is a compact 80x80x25mm DC axial fan engineered for effective thermal management in electronic devices and systems. Operating on a 12V DC power supply, this fan precisely draws 0.14A of current, consuming 1.68W of power. Equipped with 3-wire leads, this model ensures dependable operation in various cooling applications.
109P0812F401 Fan Parameters
Model Number: 109P0812F401
Manufacturer: Sanyo Denki
Series: San Ace 80
Type: DC Axial Fan
Dimensions: 80mm x 80mm x 25mm
Rated Voltage: 12 VDC
Voltage Range: 6 VDC to 13.8 VDC
Rated Current: 0.14A
Rated Power: 1.68 W
Bearing Type: Ball Bearing
Life Expectancy: 60,000 hours (at 60°C, rated voltage, continuous operation in free air)
Frame Material: Plastic (UL 94V-0 flammability rating)
Blade Material: Plastic (UL 94V-0 flammability rating)
Termination: 3-Wire Leads
Features: Locked Rotor Protection, Reverse Polarity Protection
Operating Temperature: -10°C to +70°C
Safety Standards: UL, TUV, CSA
Application: Cooling for communication equipment, control equipment, power supply equipment, PCs, and general electronic devices.
