Description

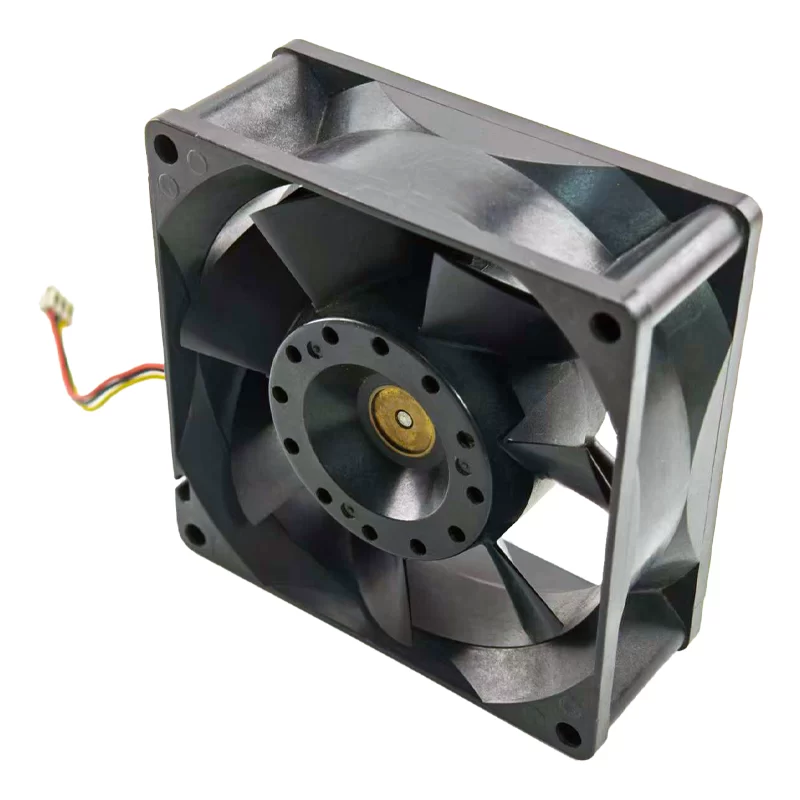

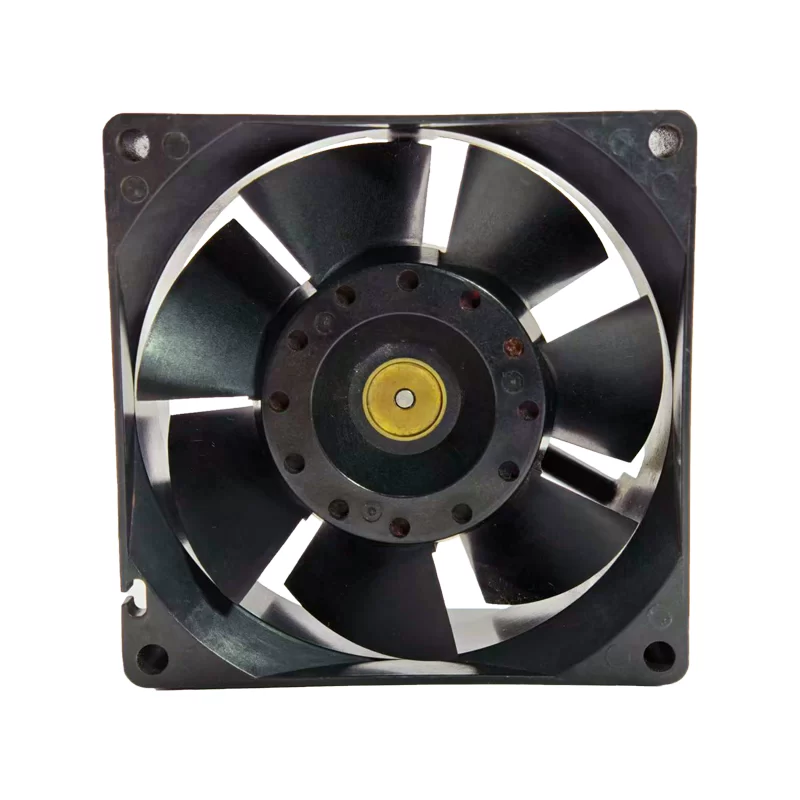

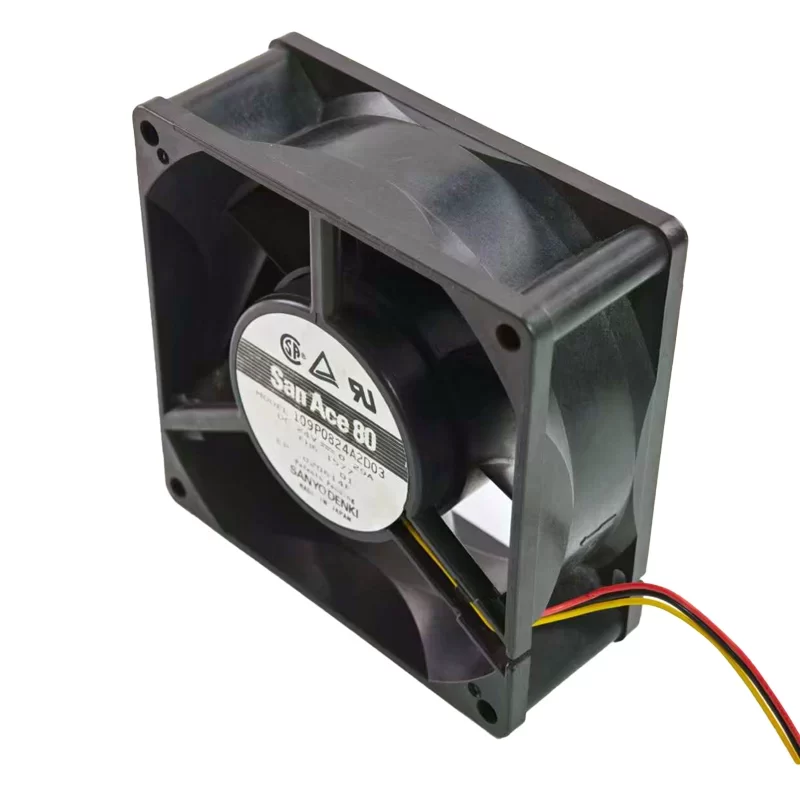

The Sanyo Denki 109P0824A2D03 is a high-performance DC Axial Fan with dimensions of 80×80×25 mm. This model operates on a 24 VDC Rated Voltage with a Rated Current of 0.29 A, resulting in a Rated Input Power of 6.96 W. It is constructed with a Ball Bearing system and features a 3-wire lead for Pulse Sensor output (speed monitoring). The fan achieves a Rated Speed of 4,800 RPM, providing a high Airflow of 56.0 CFM (95.1 m3/h) and a high Static Pressure of 0.34 inAq (84.7 Pa). It is designed for demanding cooling scenarios that require moving a significant volume of air against high system resistance, such as densely packed servers or industrial inverters.
109P0824A2D03 Fan Parameters
Model: 109P0824A2D03
Manufacturer: Sanyo Denki
Type: DC Axial Fan
Dimensions: 80×80×25 mm
Motor Design: Brushless DC Motor
Bearing Type: Ball Bearing
Rated Voltage: 24 VDC
Rated Current: 0.29 A
Rated Input: 6.96 W
Rated Speed: 4,800 RPM
Airflow: 56.0 CFM (95.1 m3/h)
Static Pressure: 0.34 inAq (84.7 Pa)
Noise Level: 46 dB/A
Operating Voltage Range: 12 VDC to 27.6 VDC
Frame Material: Plastic (UL94V-0)
Impeller Material: Plastic (UL94V-0)
Termination: 3-Wire Leads
Life Expectancy: 60,000 h (at 60 ∘C)
Safety Approval: UL, TUV, CE
Application
The 109P0824A2D03 is a powerful cooling fan optimized for high thermal load environments. Its high static pressure capability makes it ideal for cooling dense server racks, high-power telecommunications switches, and industrial PC chassis where airflow must overcome internal obstructions.
