Description

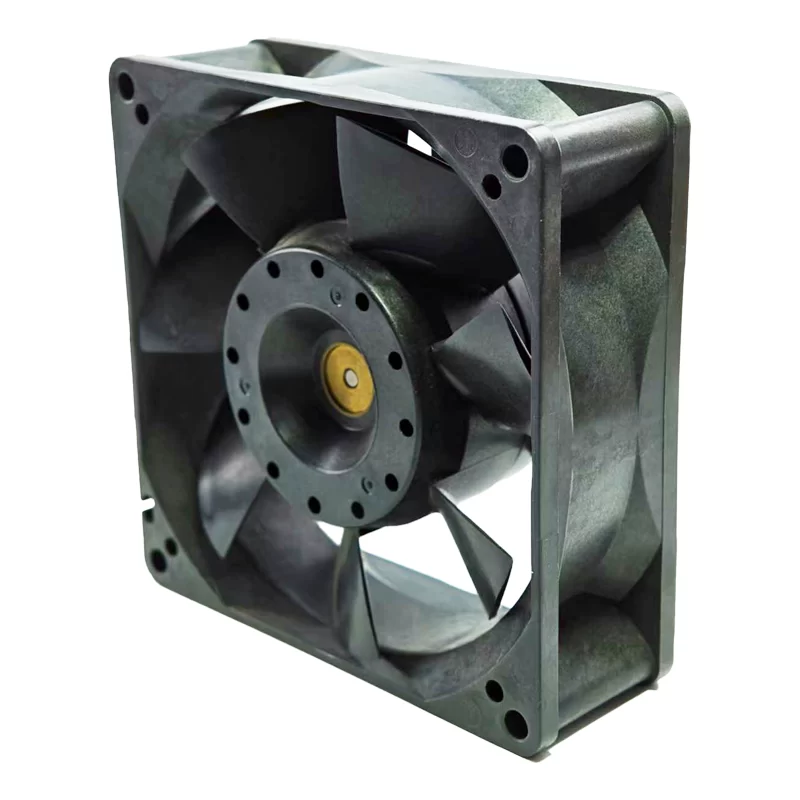

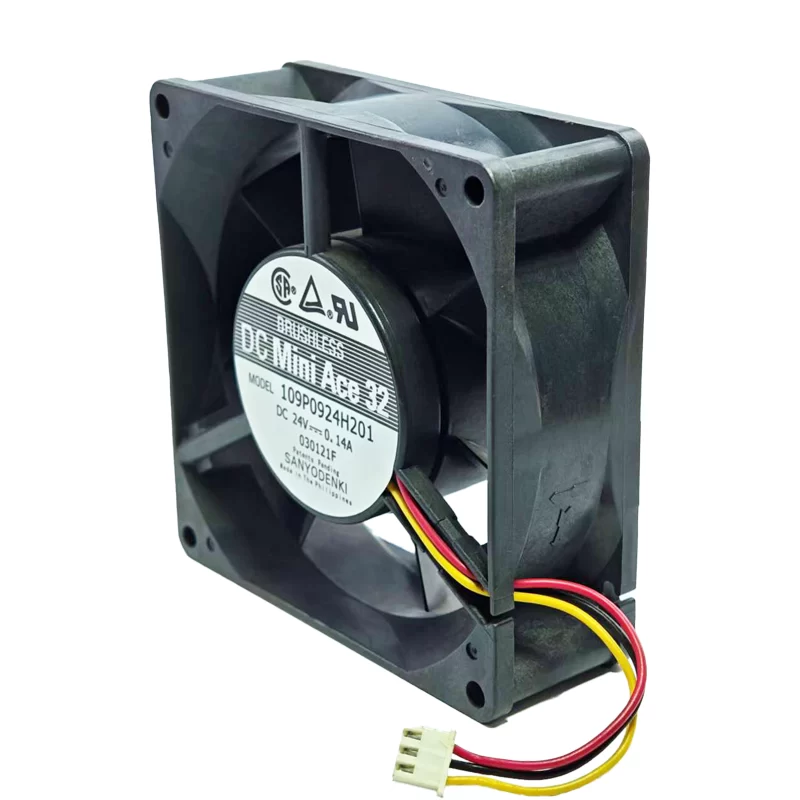

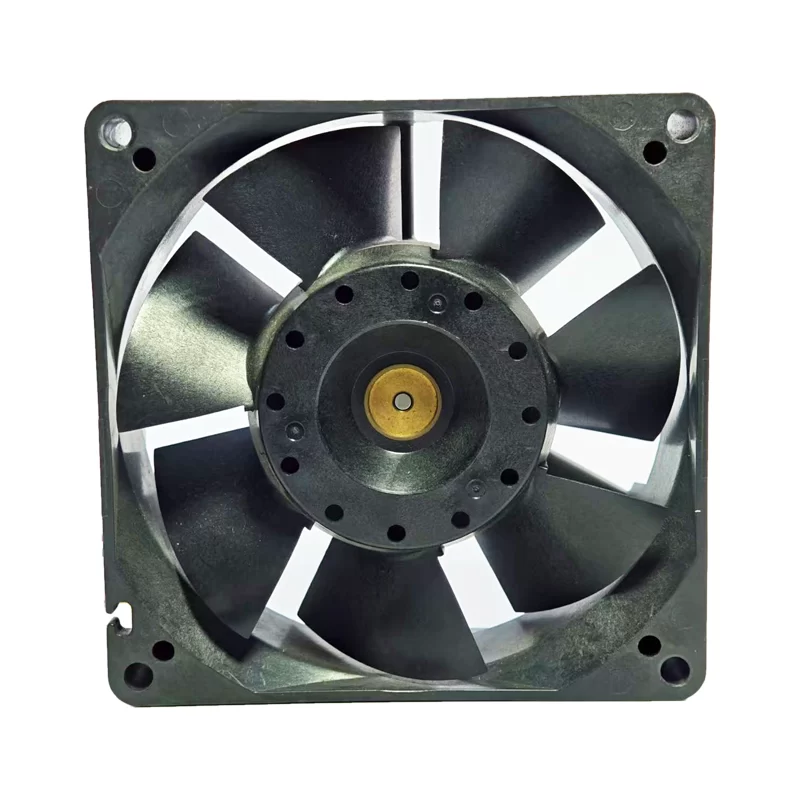

The Sanyo Denki 109P0924H201 from the DC Mini Ace 32 Series is a 92x92x32mm DC axial fan engineered for reliable and efficient cooling in various electronic and industrial equipment. Operating on 24 VDC within a typical voltage range of 20.4–27.6 VDC, this fan draws 0.14A of current, consuming 3.36W of power. It achieves a rotational speed of 2850 min-1, delivering an airflow of 56.2 CFM (1.59 m³/min or 95.4 m³/h). With a noise level of 33 dB(A) and utilizing durable double ball bearings, it ensures stable and relatively quiet operation. This model typically features 3-wire leads for connection, including a pulse sensor for speed monitoring. Its design makes it suitable for applications such as computer cases, inverters, and general equipment requiring consistent airflow.
109P0924H201 Fan Parameters
Model Number: 109P0924H201
Manufacturer: Sanyo Denki
Series: DC Mini Ace 32
Type: DC Axial Fan
Dimensions: 92mm x 92mm x 32mm
Rated Voltage: 24 VDC
Operating Voltage Range: 20.4–27.6 VDC
Rated Current: 0.14A
Power Consumption: 3.36 W
Speed: 2850 min-1
Airflow: 56.2 CFM (1.59 m³/min or 95.4 m³/h)
Noise Level: 33 dB(A)
Bearing Type: Double Ball Bearing
Termination: 3-Wire Leads (with Pulse Sensor/Tachometer output)
Weight: Approximately 150-160 g
Application: Computer cases, inverters, industrial control panels, power supplies, general equipment cooling.
