Description

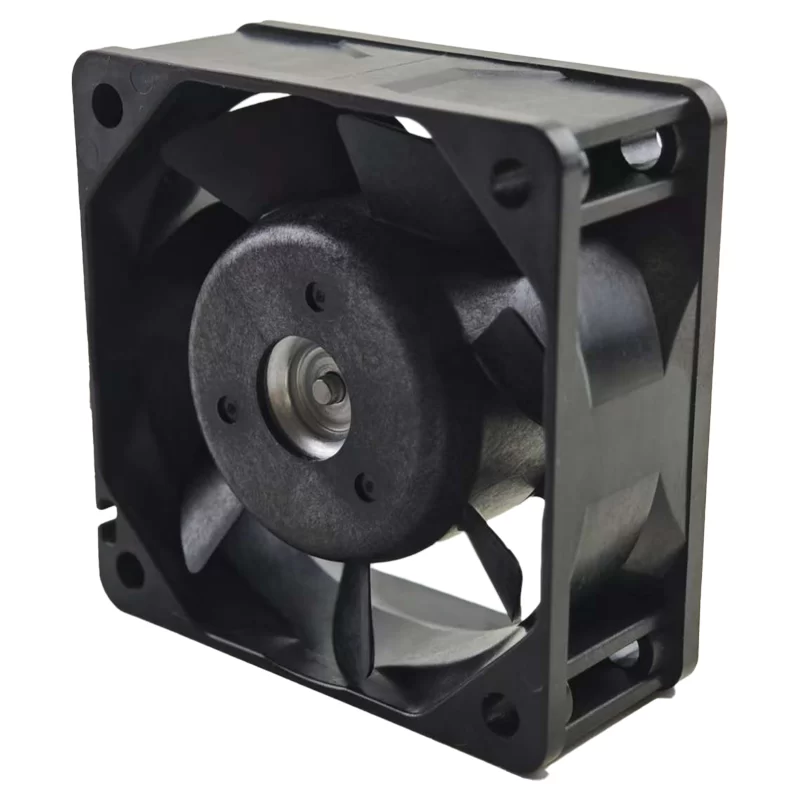

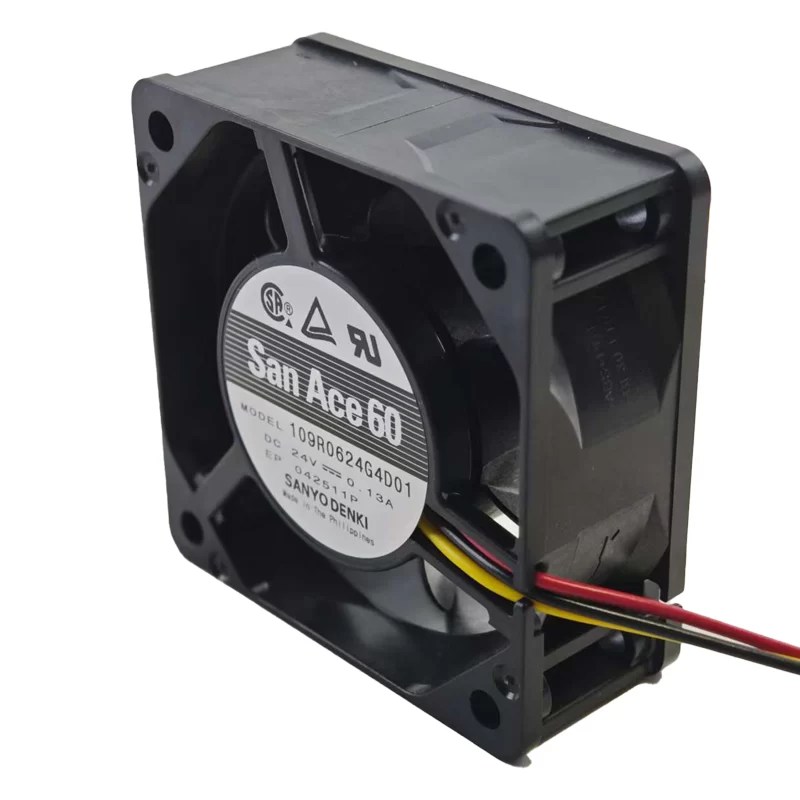

The Sanyo Denki 109R0624G4D01 is a 60x60x25mm DC axial fan designed for effective thermal management. Operating on 24 VDC within a typical voltage range of 20.4–27.6 VDC, this fan draws 0.13A of current, consuming 3.12 W of power. It achieves a rotational speed of 5600 RPM, delivering an airflow of 27.5 CFM (approximately 0.78 m³/min). With a noise level of 39 dB(A) and utilizing durable ball bearings, it ensures stable and relatively quiet operation. This model typically features 3-wire leads for connection, including a locked rotor sensor for monitoring. Its robust construction with plastic frame and impeller makes it suitable for applications such as servers, telecommunications equipment, power supplies, and general electronic cooling.
109R0624G4D01 Fan Parameters
Model Number: 109R0624G4D01
Manufacturer: Sanyo Denki
Series: San Ace 60 (9R type)
Type: DC Axial Fan
Dimensions: 60mm x 60mm x 25mm
Rated Voltage: 24 VDC
Operating Voltage Range: 20.4–27.6 VDC
Rated Current: 0.13A
Power Consumption: 3.12 W
Speed: 5600 RPM
Airflow: 27.5 CFM (0.78 m³/min)
Static Pressure: 87.3 Pa (0.351 inch H2O)
Noise Level: 39 dB(A)
Bearing Type: Ball Bearing
Frame Material: Plastic (UL 94V-0)
Blade Material: Plastic (UL 94V-1)
Termination: 3-Wire Leads (with Locked Rotor Sensor)
Expected Life: 40,000 hours @ 60°C (L10 life)
Operating Temperature: -20°C to +70°C
Weight: 90 g
Certifications: CSA, TUV, UL
Application: Servers, ICT equipment, power supplies, industrial control systems, general electronics cooling.
