Description

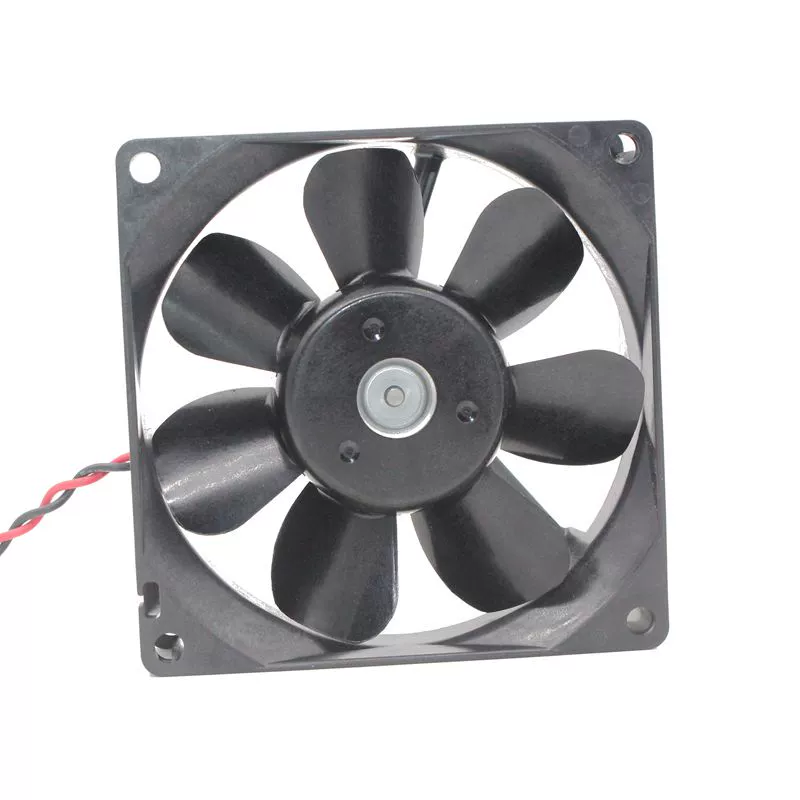

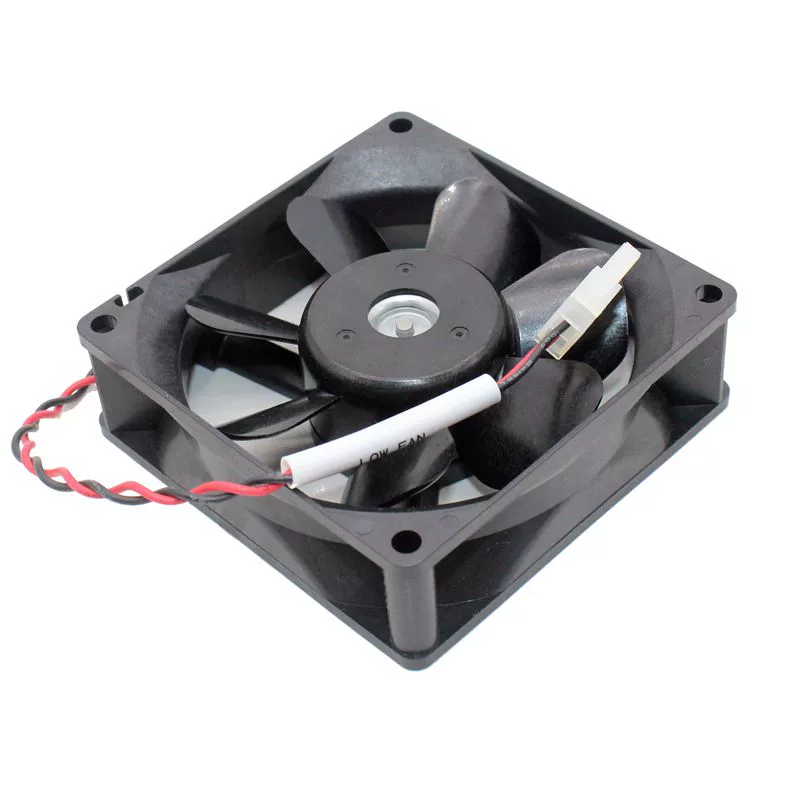

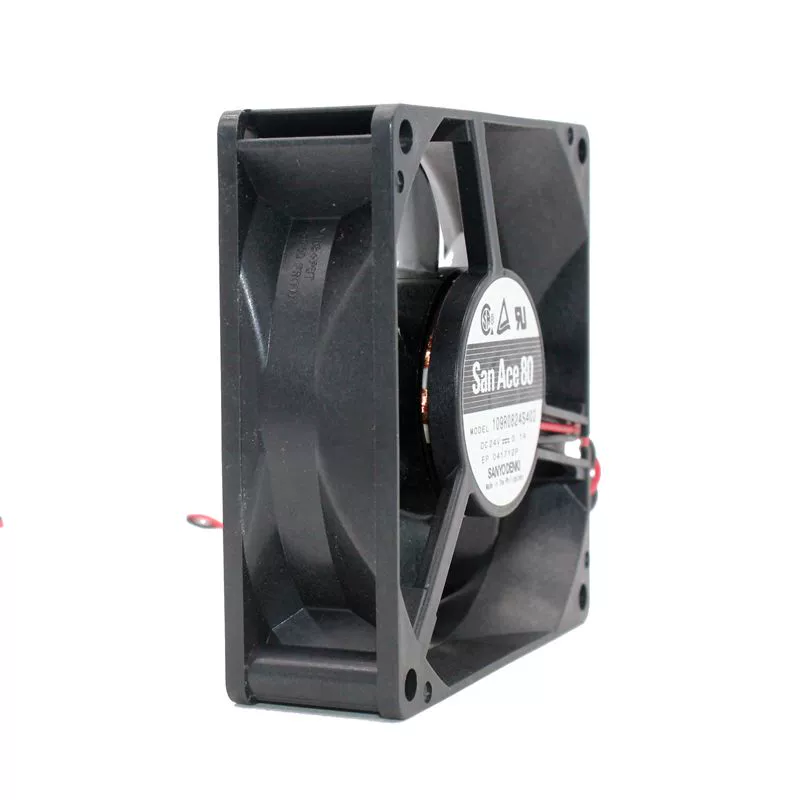

The Sanyo Denki 109R0824S402 is a compact 80x80x25mm DC axial fan designed for thermal management in various electronic and industrial equipment, including communication, control, and power supply systems. Operating on a 24V DC power supply, this fan draws 0.100A of current, consuming 2.4W of power. It achieves a rotational speed of 3400 RPM, delivering an airflow of 1.2 m³/min (42.4 CFM) and a static pressure of 48.1 Pa (0.193 in H₂O). With a low noise level of 34.0 dB(A) and utilizing durable ball bearings, this model ensures a long operational life of 60,000 hours at 60°C and provides reliable, quiet cooling performance. It also includes locked rotor protection for enhanced safety.
109R0824S402 Fan Parameters
Model Number: 109R0824S402
Manufacturer: Sanyo Denki
Series: San Ace 80
Type: DC Axial Fan
Dimensions: 80mm x 80mm x 25mm
Rated Voltage: 24 VDC
Voltage Range: 12 VDC to 27.6 VDC
Rated Current: 0.100A
Rated Power: 2.4 W
Speed: 3400 RPM
Airflow: 1.2 m³/min (42.4 CFM)
Static Pressure: 48.1 Pa (0.193 in H₂O)
Noise Level: 34.0 dB(A)
Bearing Type: Ball Bearing
Life Expectancy: 60,000 hours (at 60°C, rated voltage, continuous operation in free air)
Frame Material: Plastic (UL 94V-0 flammability rating)
Blade Material: Plastic (UL 94V-0 flammability rating)
Termination: 2 Wire Leads
Features: Locked Rotor Protection
Operating Temperature: -20°C to +70°C
Safety Standards: UL, TUV, CSA
Application: Heat source cooling for communication equipment, control equipment, power supply equipment, general air blowing, circulation, and diffusion.
