Description

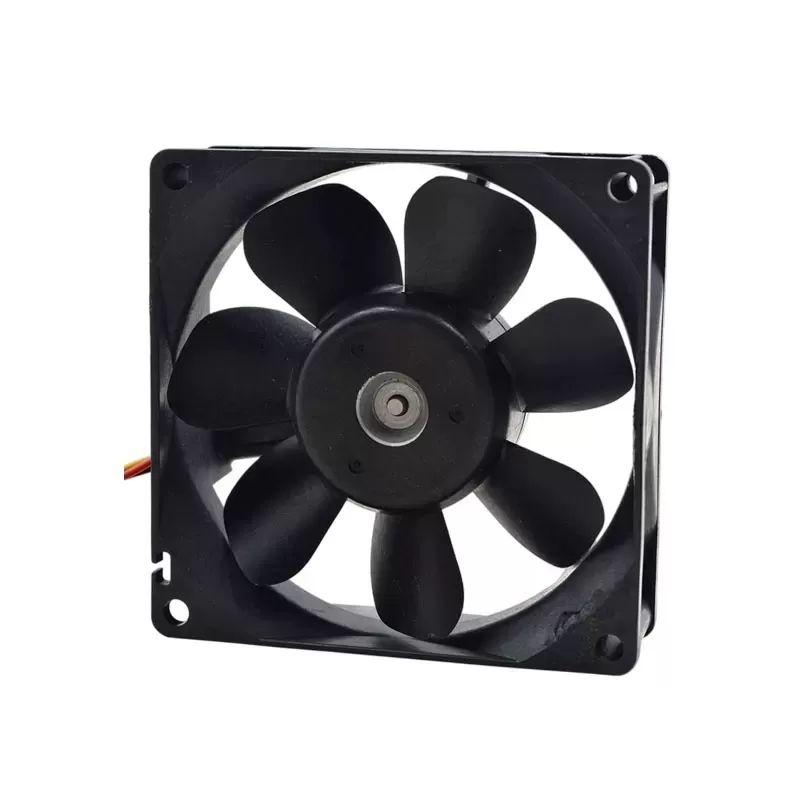

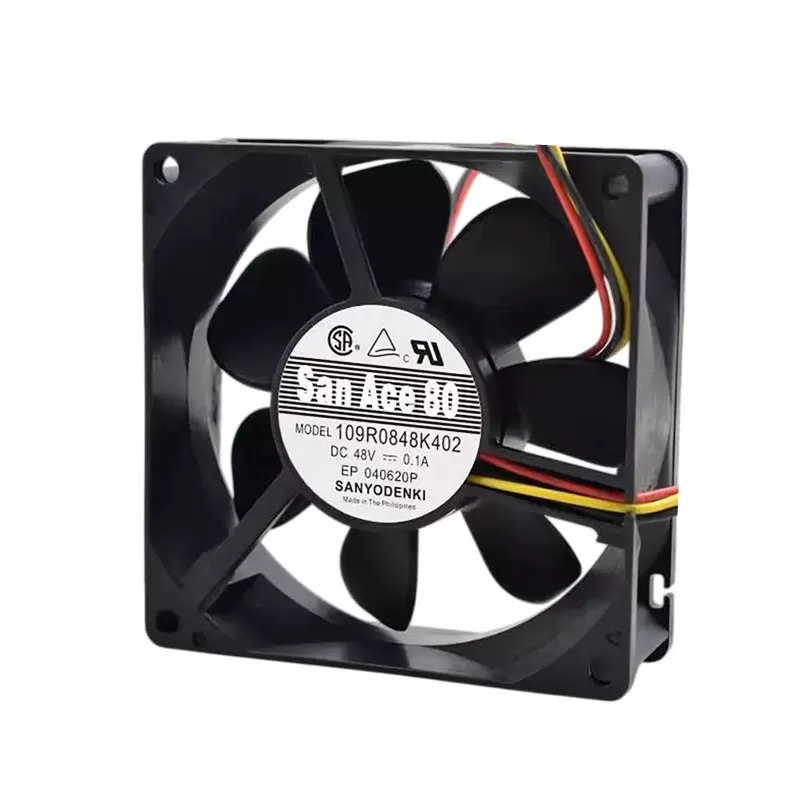

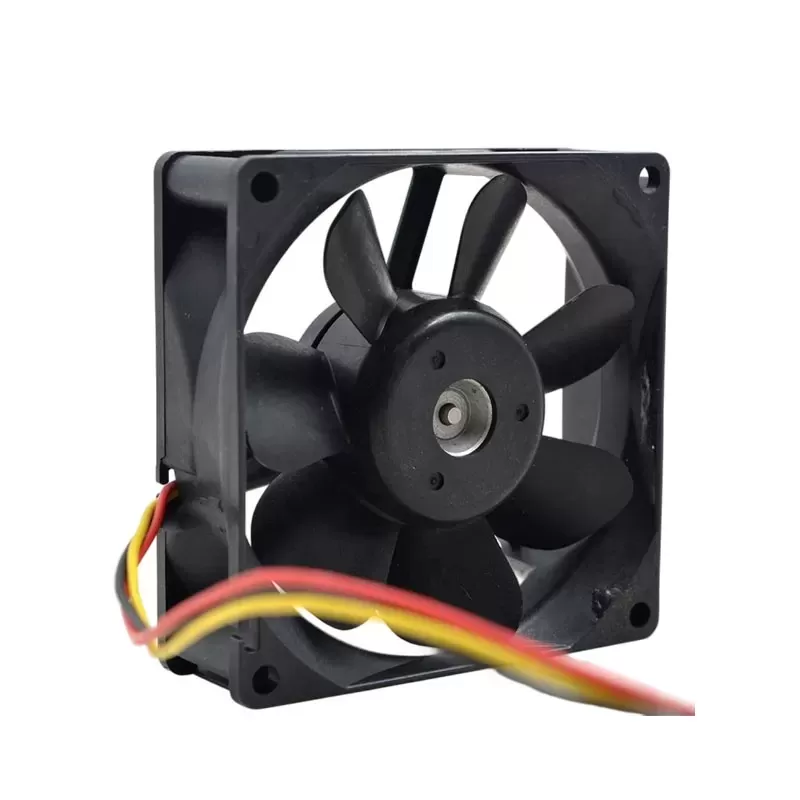

The Sanyo Denki 109R0848K402 is a high-performance 48V DC axial fan from the San Ace 80 series, measuring 80x80x25mm. Operating at 48V DC, it draws 0.1 amps of current and consumes 4.8 watts of power. This fan is designed to achieve a high speed of 4600 RPM, delivering a strong airflow of 55.1 CFM (1.56 m³/min) with a static pressure of 88.4 Pa (0.355 inchH2O) and a noise level of 41 dBA. Equipped with durable ball bearings and features like locked rotor burnout protection and a speed sensor (tachometer), it provides robust and efficient cooling solutions, making it well-suited for demanding electronic equipment such as servers, power supplies, and industrial PCs.
109R0848K402 Fan Parameters
Model Number: 109R0848K402
Manufacturer: Sanyo Denki
Brand: San Ace 80
Type: DC Axial Fan
Dimensions: 80mm x 80mm x 25mm
Rated Voltage: 48 VDC
Operating Voltage Range: 40.8 – 55.2 VDC
Rated Current: 0.1A
Rated Power: 4.8 W
Speed: 4600 RPM
Airflow: 55.1 CFM (1.56 m³/min) or 93.6 m³/h
Static Pressure: 88.4 Pa (0.355 inchH2O)
Noise Level: 41 dBA
Bearing Type: Ball Bearing
Service Life: 40,000 hours at 60°C
Frame Material: Plastic (UL 94V-0 or UL94V-1)
Impeller Material: Plastic (UL 94V-0 or UL94V-1)
Operating Temperature: -20°C to +60°C (or +70°C)
Weight: 95 g to 110.22 g
Connector: 3 Wire Leads
Features: Speed Sensor (Tachometer), Locked Rotor Burnout Protection
Approvals/Certifications: UL, CSA, TUV
Key Application: Server cooling, Power supplies, Industrial PCs, Electronic equipment cooling
