Description

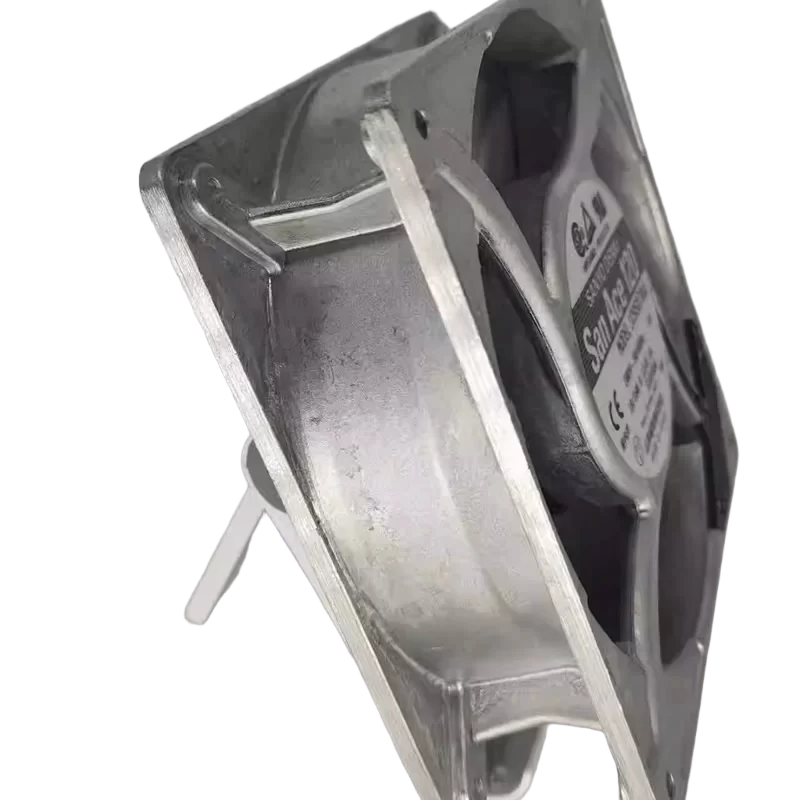

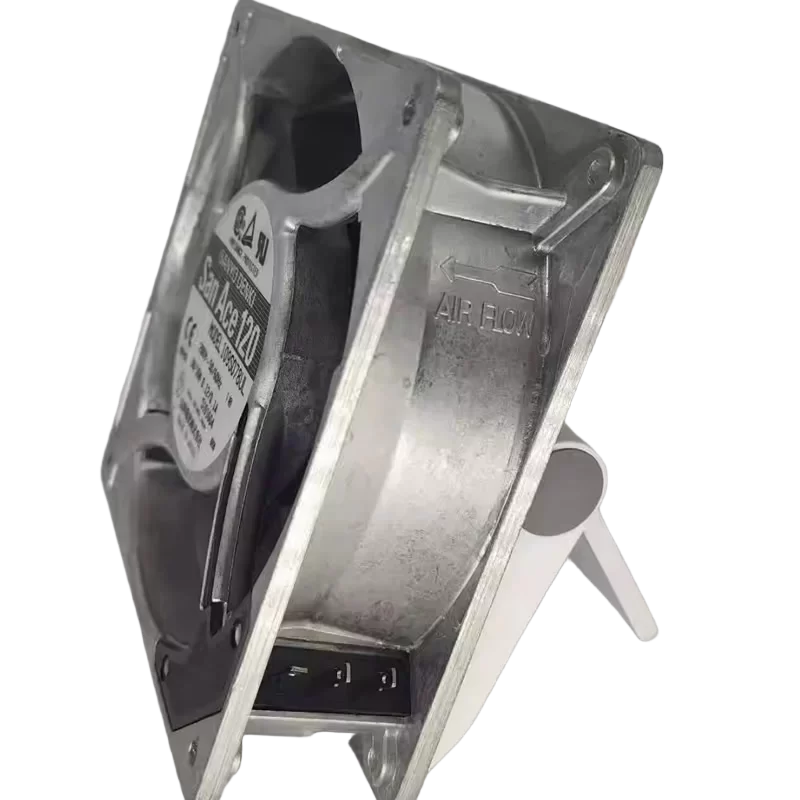

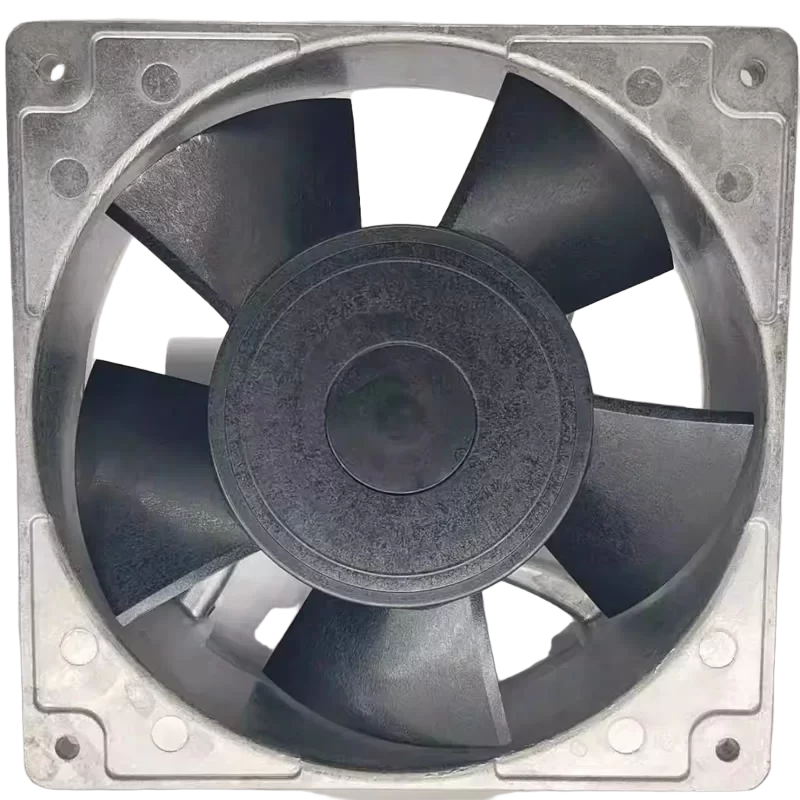

The 109S078UL is an AC Axial Fan with dimensions of 120×120×38 mm. This fan operates on 200 VAC and features a Ball Bearing system. It supports dual-frequency operation: at 50 Hz, it achieves an airflow of 150.0 m3/h (88.3 CFM), a static pressure of 57.9 Pa (0.233 inH2O), and a noise level of 42 dB(A); at 60 Hz, the performance increases to 174.0 m3/h (102.5 CFM), a static pressure of 68.7 Pa (0.276 inH2O), and a noise level of 45 dB(A). It is built with an aluminum frame and is certified by PSE,CE,UL,TUV, and CSA.
109S078UL Fan Parameters
Model: 109S078UL
Manufacturer: Sanyo Denki
Fan Type: AC Axial Fan
Dimensions: 120×120×38 mm
Nominal Voltage: 200 VAC
Frame Material: Aluminum
50 Hz Operating Point:
Rated Power: 18 W
Airflow: 150.0 m3/h (88.3 CFM)
Static Pressure: 57.9 Pa (0.233 inH2O)
Noise Level: 42 dB(A)
60 Hz Operating Point:
Rated Power: 16 W
Airflow: 174.0 m3/h (102.5 CFM)
Static Pressure: 68.7 Pa (0.276 inH2O)
Noise Level: 45 dB(A)
Bearing System: Ball Bearing
Expected Life: 56,000 hours at 40∘ C
Approvals: PSE,CE,UL,TUV,CSA
Mass: 550 g
Application
The 109S078UL is typically used for general-purpose cooling in equipment that operates across various international power grids (50 Hz/60 Hz), such as electrical enclosures, control panels, power supplies, inverters, and other 19-inch rack-mount equipment requiring robust 120 mm AC airflow.
