Description
Model Number: 11925SA-12P-EL
Manufacturer: NMB Technologies Corporation
Series: 11925SA
Fan Type: DC Brushless Axial Fan
Dimensions L x H x W: 119 mm x 119 mm x 25 mm
Rated Voltage: 12 VDC
Operating Voltage Range: 7 VDC to 13.8 VDC
Rated Current: 0.33 A to 0.50 A
Input Power: 3.96 W to 6.0 W
Wiring: 2 Wire Leads or 3 Wire Leads
Bearing Type: Ball Bearing
Rotational Speed RPM: 2800 RPM to 3100 RPM
Maximum Airflow: 100.6 CFM to 102.05 CFM
Maximum Static Pressure: 0.243 In H2O
Noise Level: 40.5 dB to 43 dB
Frame Material: Plastic
Impeller Blade Material: Plastic
Features: Auto Restart, Locked Rotor Sensor
Operating Temperature Range: -10°C to +60°C
Expected Life L10: 40,000 Hours at 60°C
Mass: 165 g

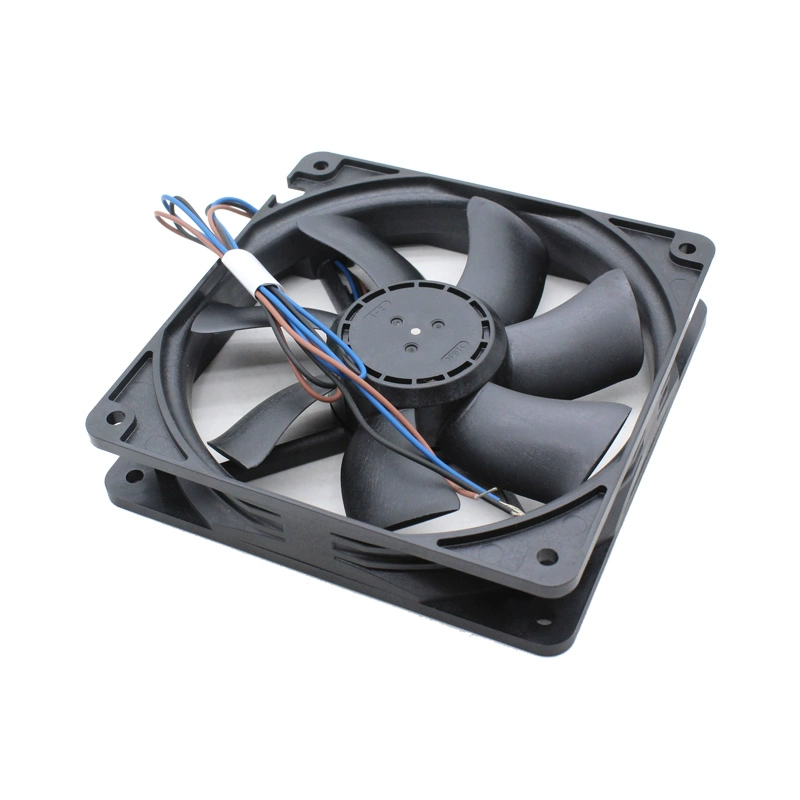

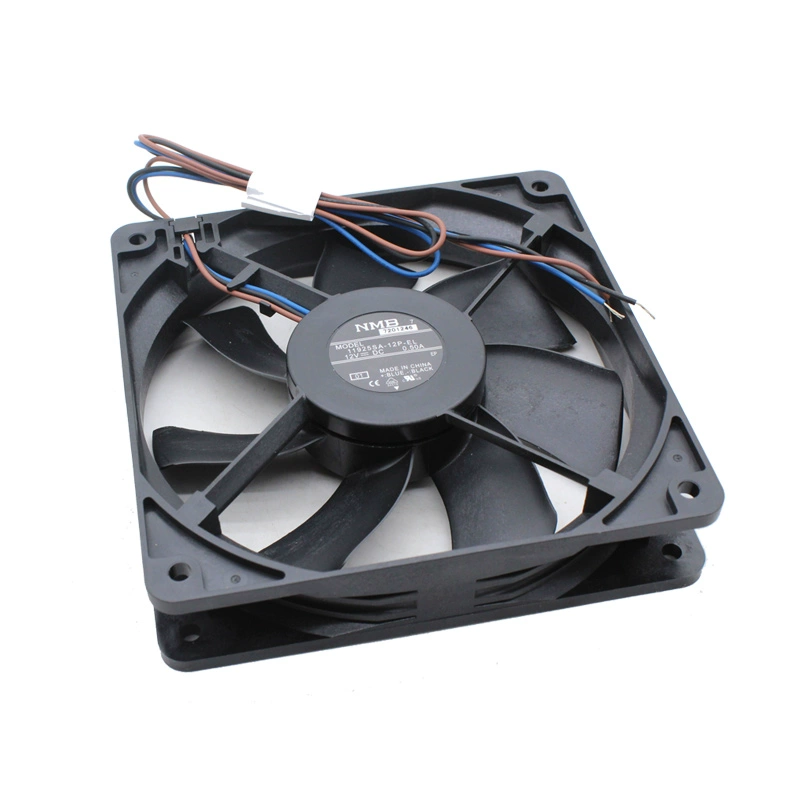

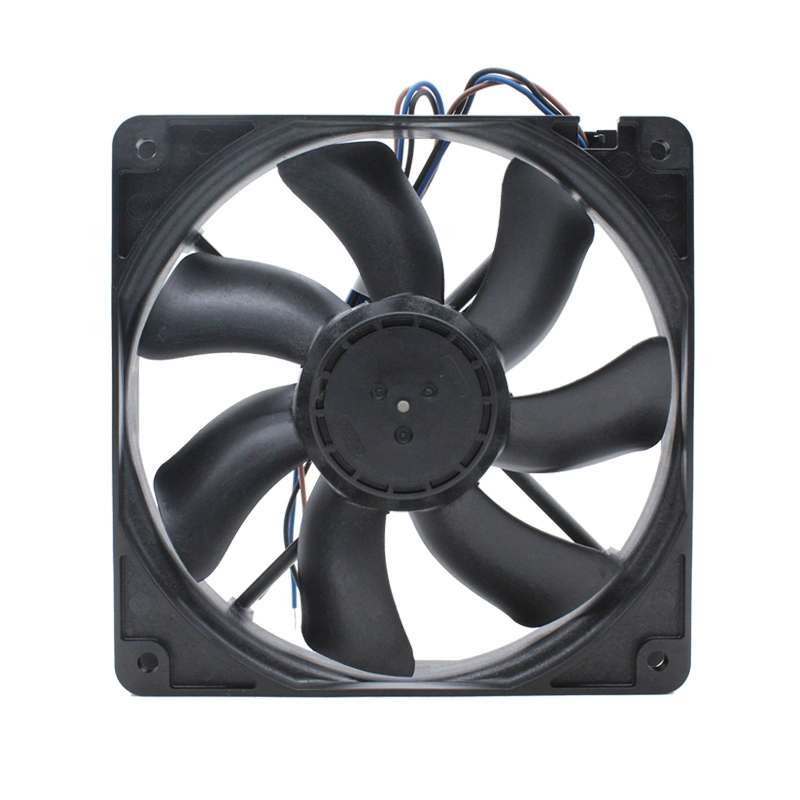

The NMB 11925SA-12P-EL is a reliable 119x119x25mm DC axial fan from NMB Technologies, designed for efficient cooling in various electronic systems. Operating on 12VDC, it consumes between 3.96W and 6.0W of power with a current draw from 0.33A to 0.50A. This fan features durable ball bearings for a long operational life of 40,000 hours at 60°C. It delivers a substantial airflow of 100.6 CFM to 102.05 CFM at speeds ranging from 2800 RPM to 3100 RPM, with a moderate noise level of 40.5 dB to 43 dB. It often includes a locked rotor sensor for system monitoring and auto restart capability, enhancing its reliability in critical applications. This fan is a common and effective choice for cooling server chassis, industrial control cabinets, power supplies, and general electronic enclosures.
