Description

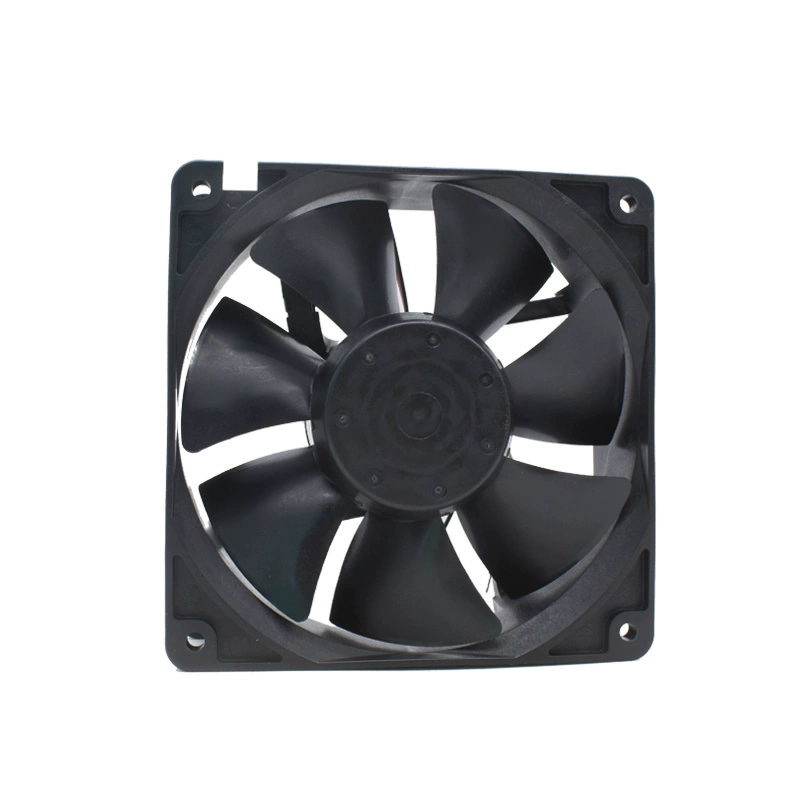

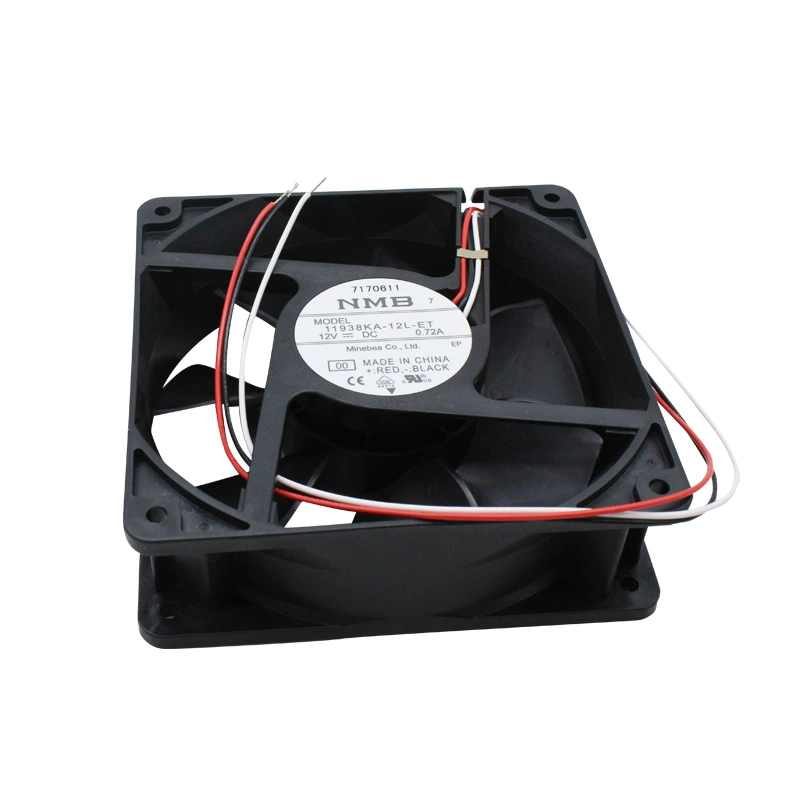

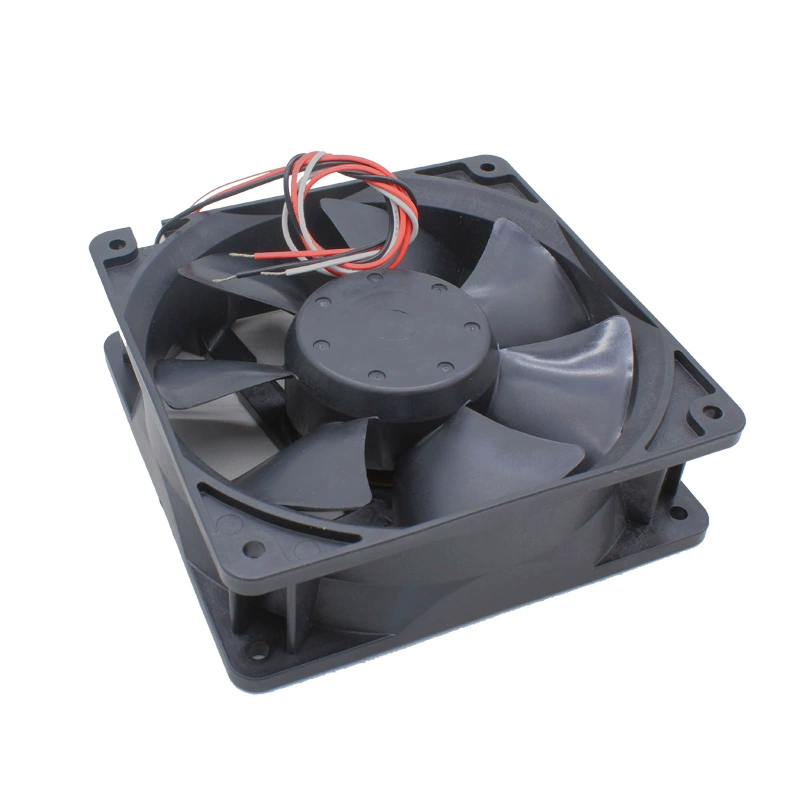

The NMB 11938KA-12L-ET-00 is a reliable DC Axial Cooling Fan from NMB Technologies, designed for effective thermal management in a wide range of electronic equipment. Operating on 12V DC power, it draws 0.72A of current, resulting in an 8.64W power consumption. Measuring 119mm x 119mm x 38mm, this fan is well-suited for cooling applications in servers, industrial machinery, and larger enclosures where substantial airflow is required. It rotates at a speed of 3400 RPM, delivering an airflow of 128 CFM and generating a static pressure of 0.38 inch-H2O. With a noise level of 47 dBA, it provides efficient cooling with a moderate acoustic profile. Equipped with 3-wire leads, it includes a speed sensor for monitoring and utilizes durable ball bearings. The fan boasts a long life expectancy of 100,000 hours at 25°C and is designed to operate reliably within a temperature range of -10°C to 70°C, also featuring auto restart and polarity protection for dependable performance.
Model Number: 11938KA-12L-ET-00
Manufacturer: NMB Technologies
Type: DC Axial Cooling Fan
Rated Voltage: 12V DC
Operating Voltage Range: 6V to 13.8V DC
Rated Current: 0.72A
Rated Power: 8.64W
Speed: 3400 RPM
Airflow: 128 CFM
Static Pressure: 0.38 inch-H2O
Noise Level: 47 dBA
Dimensions: 119mm x 119mm x 38mm
Connector: 3-Wire Leads
Bearing Type: Ball Bearing
Life Expectancy: 100,000 hours at 25°C
Operating Temperature: -10°C to 70°C
Frame Material: Plastic (UL94V-0)
Impeller Material: Plastic (UL94V-0)
Features: Auto Restart, Speed Sensor (Tachometer), Polarity Protection
