Description

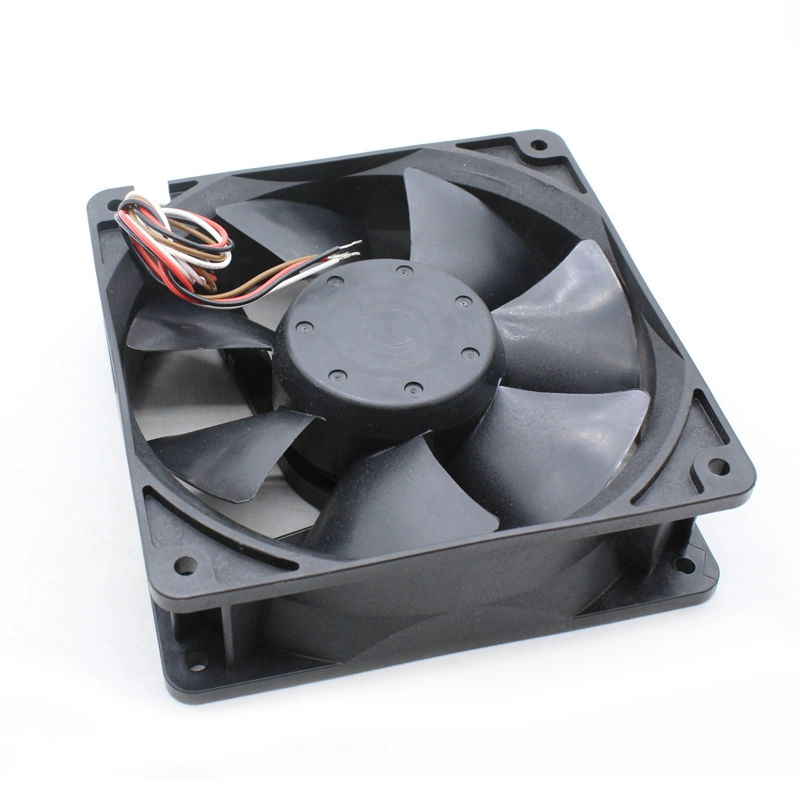

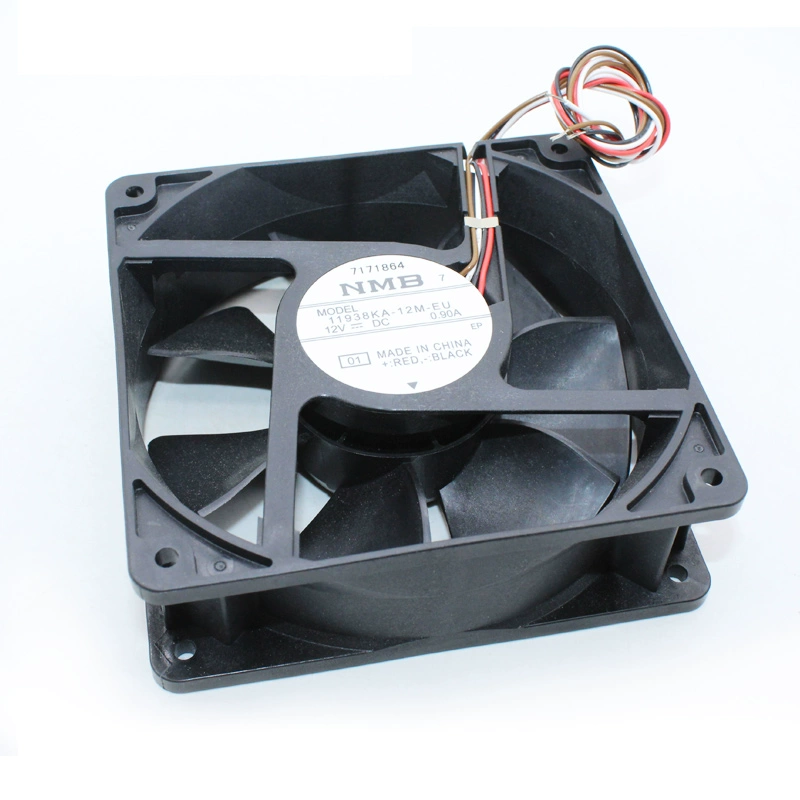

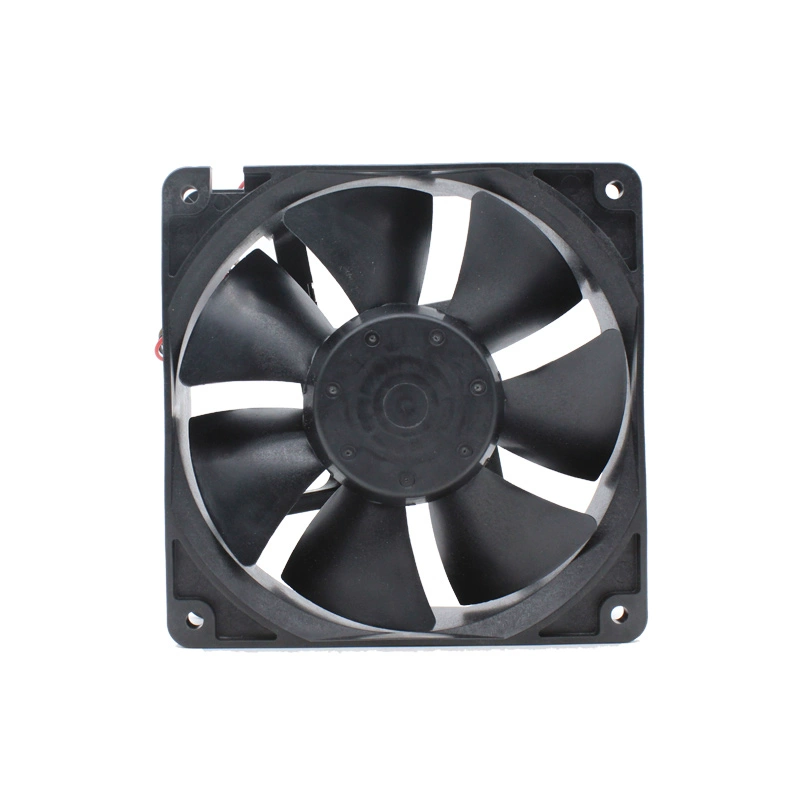

The NMB 11938KA-12M-EU-01 is a high-performance DC Axial Cooling Fan from NMB Technologies, designed for robust thermal management in demanding electronic systems. Operating on 12V DC power, it draws 0.90A of current, resulting in 10.8W of power consumption. Measuring 119mm x 119mm x 38mm, this fan is well-suited for cooling applications in servers, networking equipment, industrial controls, and other systems where significant airflow and precise control are required. It rotates at a speed of 3700 RPM, delivering a strong airflow of 137.7 CFM and generating a static pressure of 0.49 inch-H2O. With a noise level of 52.5 dBA, it provides powerful cooling. Equipped with 4-wire leads, it offers advanced control with PWM capabilities for precise speed adjustment and a speed sensor (tachometer) for monitoring fan status. Utilizing durable ball bearings, the fan boasts a long life expectancy of 100,000 hours at 25°C. It is designed to operate reliably within a temperature range of -10°C to 70°C and includes auto restart and polarity protection for dependable performance.
4715KL-04W-B46 12V 0.9A 12038 Fan New Model 11938KA-12M-EU Fan
Model Number: 11938KA-12M-EU-01
Manufacturer: NMB Technologies
Type: DC Axial Cooling Fan
Rated Voltage: 12V DC
Operating Voltage Range: 6V to 13.8V DC
Rated Current: 0.90A
Rated Power: 10.8W
Speed: 3700 RPM
Airflow: 137.7 CFM
Static Pressure: 0.49 inch-H2O
Noise Level: 52.5 dBA
Dimensions: 119mm x 119mm x 38mm
Connector: 4-Wire Leads
Bearing Type: Ball Bearing
Life Expectancy: 100,000 hours at 25°C
Operating Temperature: -10°C to 70°C
Frame Material: Plastic
Impeller Material: Plastic
Features: Auto Restart, Speed Sensor (Tachometer), PWM Control, Polarity Protection
Other name: 4715KL-04W-B46
