Description

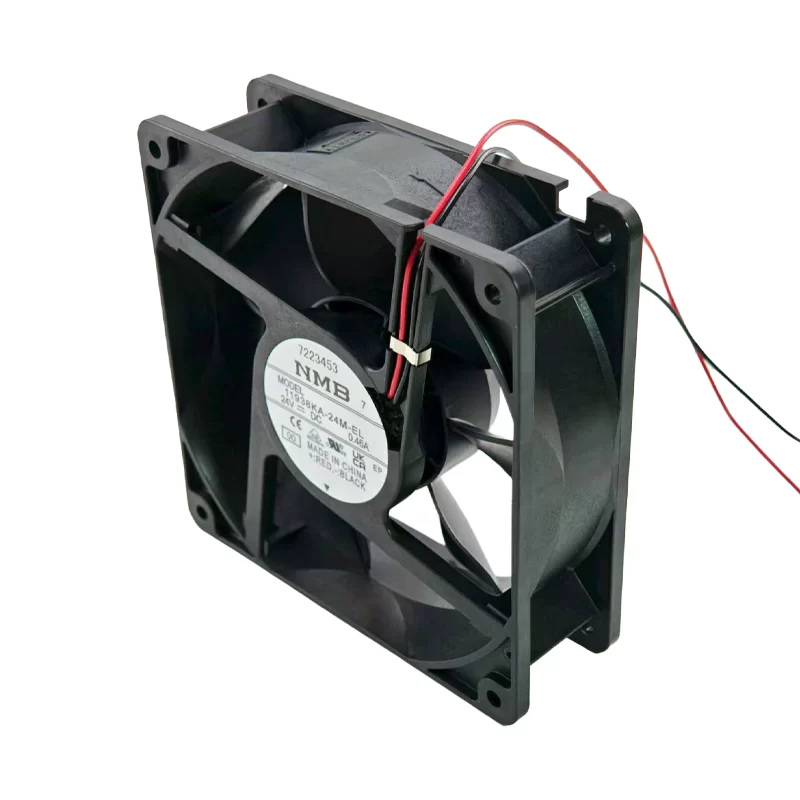

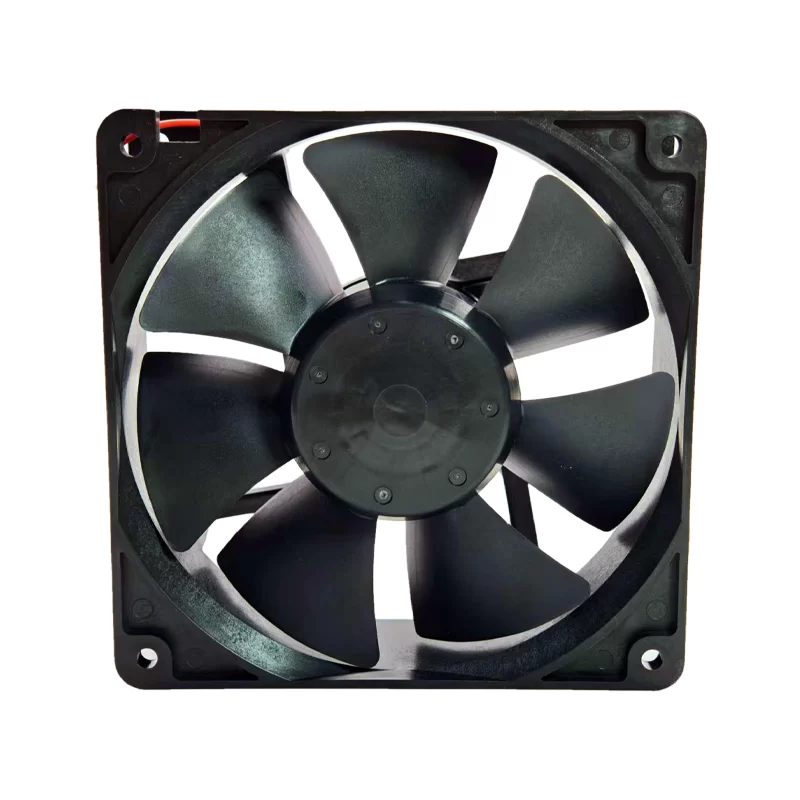

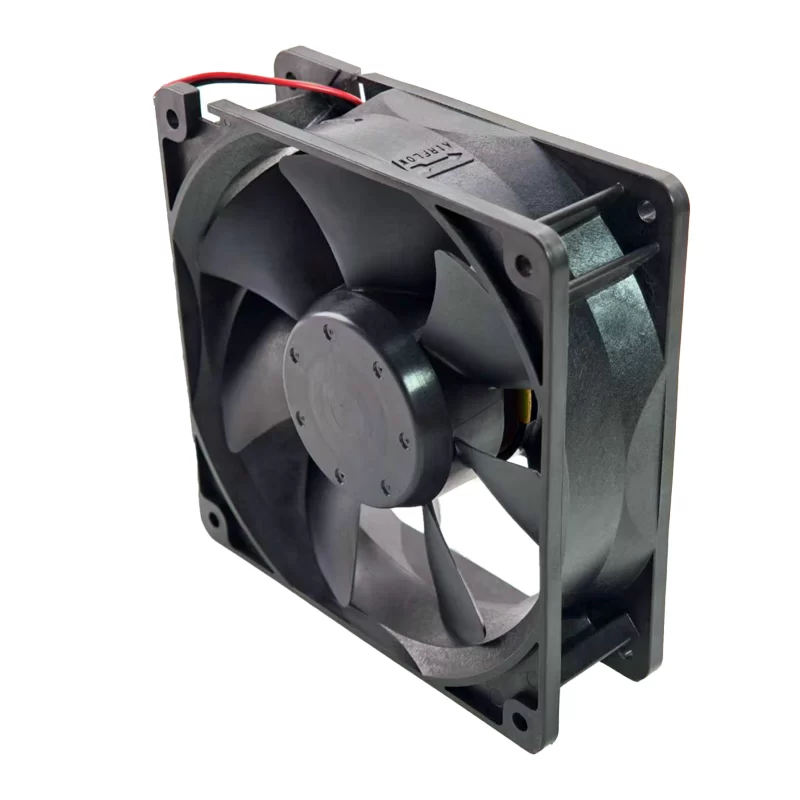

The NMB 11938KA-24M-EL-00 is a high-performance DC axial fan measuring 119x119x38mm. It operates on 24 VDC, drawing 0.46 A of current, with a power consumption of 11.04 W. This fan achieves a speed of 3400 RPM, providing an airflow of 113 CFM (3.2 m³/min) with a static pressure of 0.37 inch H2O. The noise level is 49 dB(A). It features ball bearings for durable operation. It connects via 2-wire Leads. This fan is typically used in servers, industrial equipment, and other applications requiring efficient cooling.
11938KA-24M-EL-00 Fan Parameters
Model: 11938KA-24M-EL-00
Manufacturer: NMB Technologies Corporation
Type: DC Axial Fan
Dimensions: 119x119x38 mm
Rated Voltage: 24 VDC
Operating Voltage Range: 14-27.6 VDC
Rated Current: 0.46 A
Power Consumption: 11.04 W
Speed: 3400 RPM
Airflow: 113 CFM (3.2 m³/min)
Static Pressure: 0.37 inch H2O (92.2 Pa)
Noise Level: 49 dB(A)
Bearing Type: Ball Bearing
Termination: 2-wire Leads
Features: Auto Restart
Weight: 270 g
Material Frame: Plastic (PBT)
Material Blade: Plastic (PBT)
Operating Temperature: -10 to 70°C
Expected Life: 60000 Hrs at 60°C (100000 Hrs at 40°C)
Application: Servers, industrial equipment, general cooling.
old model: 4715KL-05W-B40
