Description

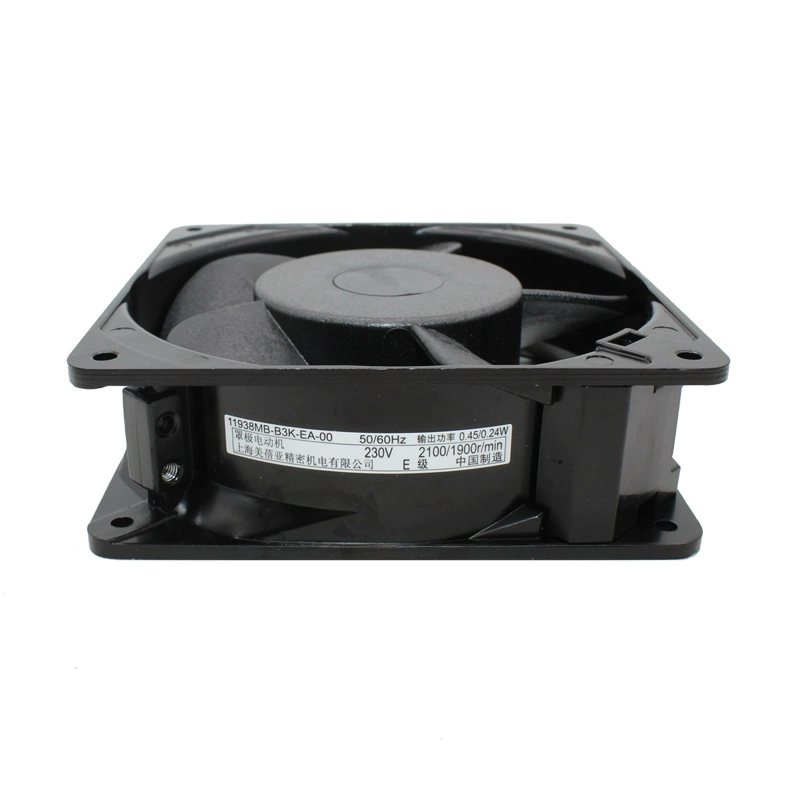

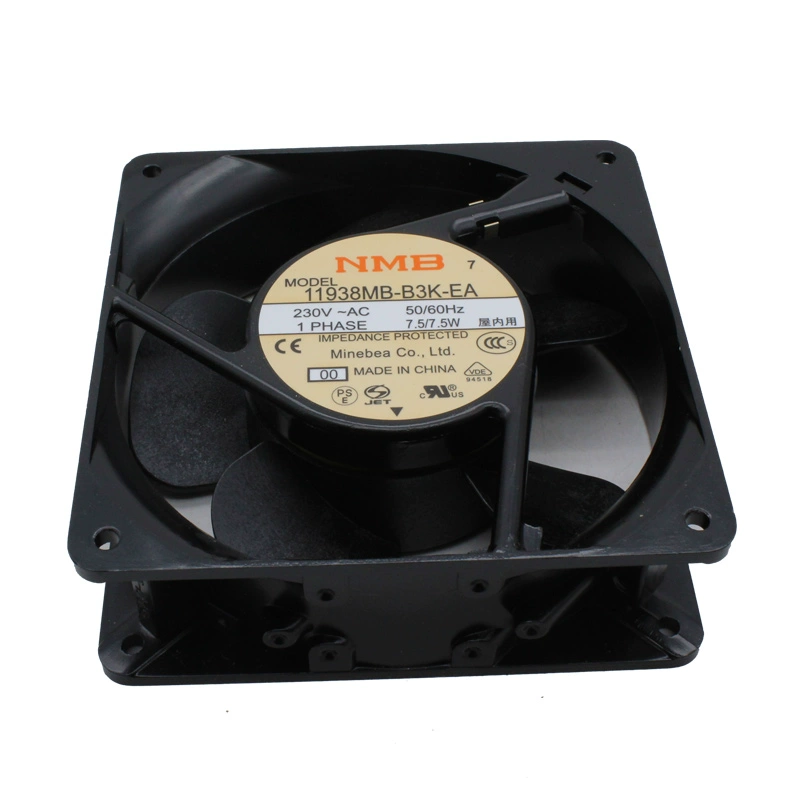

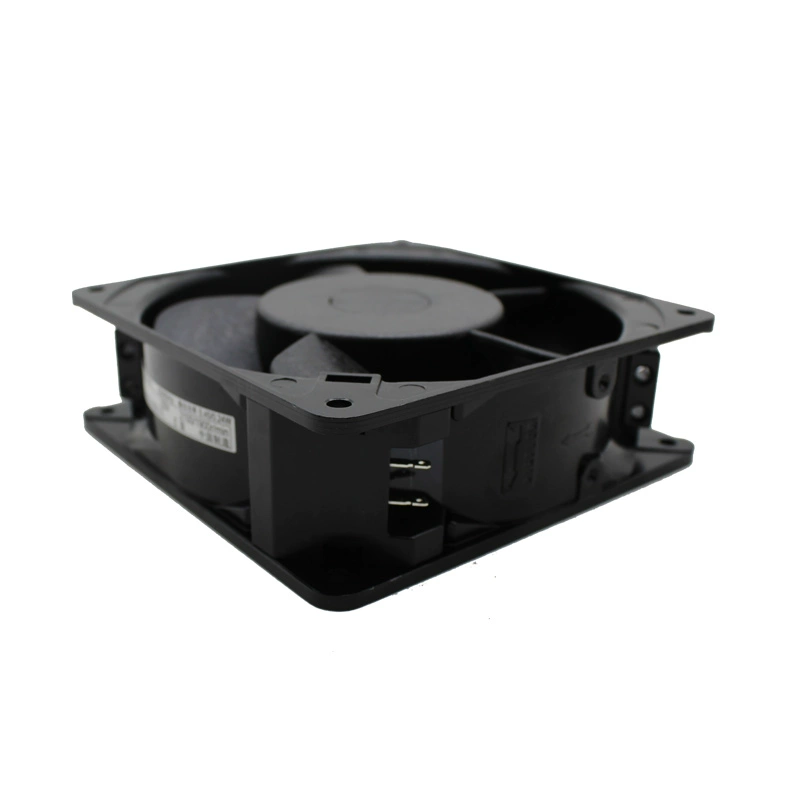

The NMB 11938MB-B3K-EA-00 is a reliable AC Axial Cooling Fan manufactured by NMB Technologies, designed for general-purpose thermal management in electronic equipment. Operating on 230V AC power, it typically draws 0.06A of current, resulting in 7.5W of power consumption. Measuring 119mm x 119mm x 38mm, this fan is well-suited for cooling applications in control panels, industrial machinery, and other systems where AC power is readily available. It rotates at a speed of 2100 RPM, delivering an airflow of 70.6 CFM and generating a static pressure of 0.14 inch-H2O. With a low noise level of 32 dBA, it provides quiet and effective cooling. Equipped with 2 terminal leads and durable ball bearings, the fan boasts a long life expectancy of 100,000 hours at 25°C. It is designed to operate reliably within a temperature range of -10°C to 70°C and includes a thermal overload protector for enhanced safety and dependability.
Model Number: 11938MB-B3K-EA-00
Manufacturer: NMB Technologies
Type: AC Axial Cooling Fan
Rated Voltage: 230V AC
Starting Voltage: 175V AC
Frequency: 50/60 Hz
Rated Current (50Hz): 0.06A
Rated Current (60Hz): 0.06A
Rated Power (50Hz): 7.5W
Rated Power (60Hz): 7.5W
Speed (50Hz): 2100 RPM
Speed (60Hz): 2100 RPM
Airflow (50Hz): 70.6 CFM (2.0 m³/min)
Airflow (60Hz): 70.6 CFM (2.0 m³/min)
Static Pressure (50Hz): 0.14 inch-H2O (35.2 Pa)
Static Pressure (60Hz): 0.14 inch-H2O (35.2 Pa)
Noise Level (50Hz): 32 dBA
Noise Level (60Hz): 32 dBA
Dimensions: 119mm x 119mm x 38mm
Connector: 2 Terminals
Bearing Type: Ball Bearing
Life Expectancy: 100,000 hours at 25°C
Operating Temperature: -10°C to 70°C (14°F to 158°F)
Frame Material: Aluminum
Impeller Material: Plastic
Features: Thermal Overload Protector (TOP)
