Description

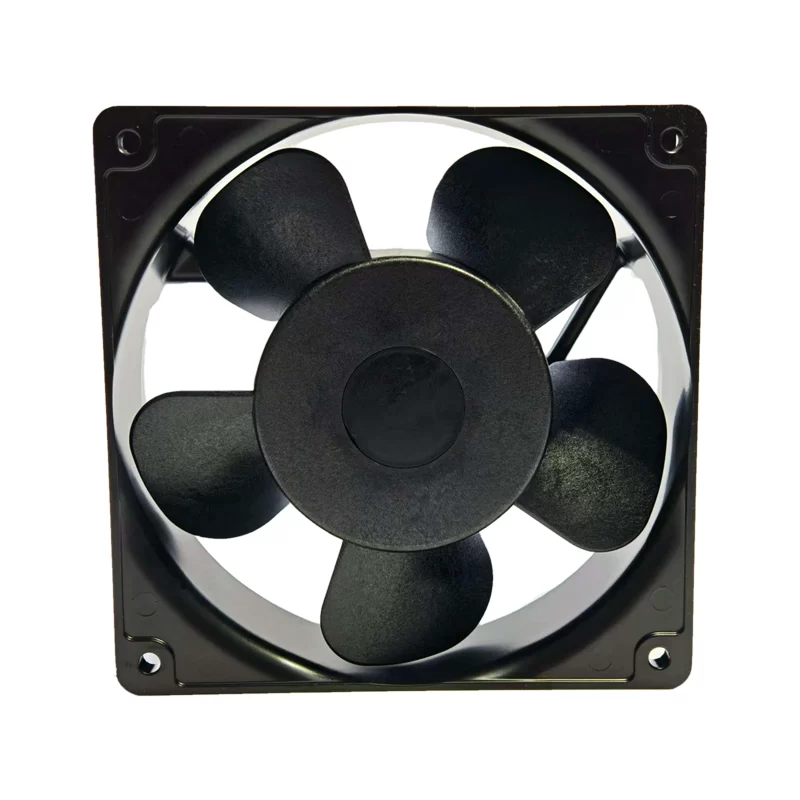

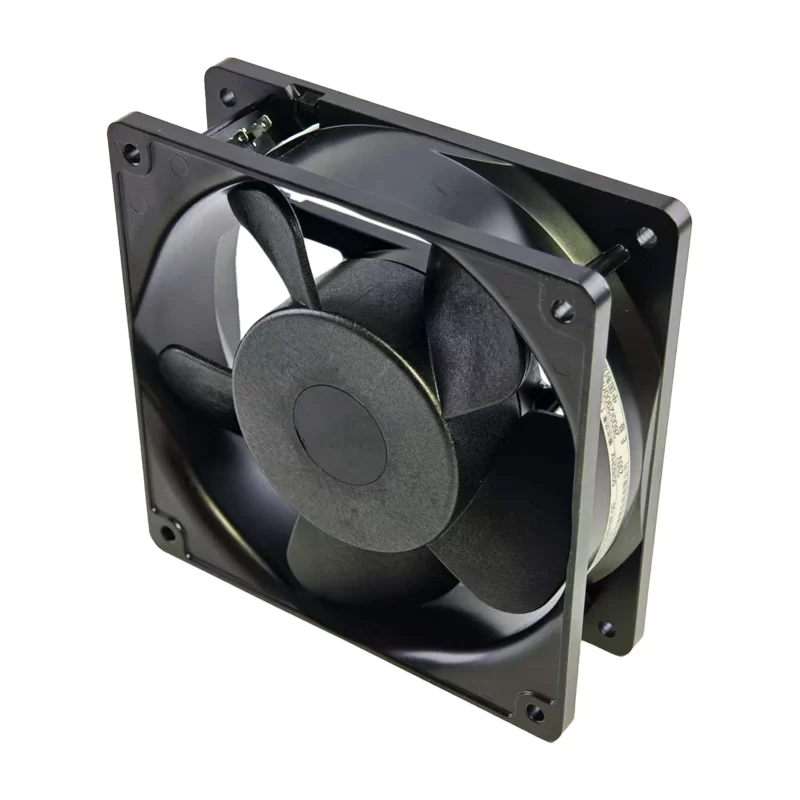

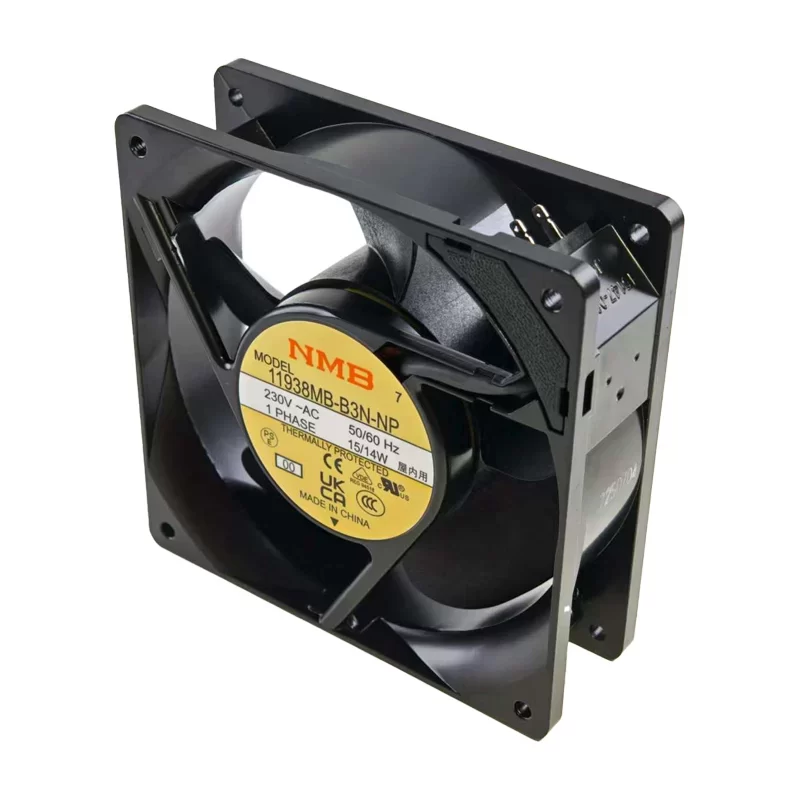

The NMB 11938MB-B3N-NP-00 is an AC axial fan with dimensions of 120 x 120 x 38 mm. It operates at 230V AC with a dual frequency of 50/60 Hz. At 50 Hz, it runs at 2600 RPM, providing an airflow of 2.5 m³/min with a static pressure of 63.8 Pa and a noise level of 37 dBA. At 60 Hz, its speed increases to 2900 RPM, with an airflow of 2.9 m³/min, a static pressure of 70.7 Pa, and a noise level of 41 dBA. The fan utilizes a Ball bearing and is terminated with 2 Flat Pin Terminals. The frame is made of metal, and the impeller is plastic.
11938MB-B3N-NP-00 Fan Parameters
Manufacturer: NMB Technologies Corporation
Model: 11938MB-B3N-NP-00
Fan Type: AC Axial Fan
Dimensions: 120 x 120 x 38 mm
Rated Voltage: 230V AC
Frequency: 50/60 Hz
Current Rating: 0.12 / 0.1 A
Power Consumption: 15 / 14 W
Airflow: 2.5 / 2.9 m³/min
Static Pressure: 63.8 / 70.7 Pa
Speed: 2600 / 2900 RPM
Noise Level: 37 / 41 dBA
Bearing Type: Ball bearing
Termination: 2 Flat Pin Terminals
Housing Material: Metal
Impeller Material: Plastic
Operating Temperature: -10 °C to 70 °C
Weight: 0.55 kg
Life Expectancy: 5000 H
Application
The 11938MB-B3N-NP-00 fan is suitable for applications such as cabinet cooling, HVAC systems, control panels, and industrial enclosures that require high airflow and reliability.
