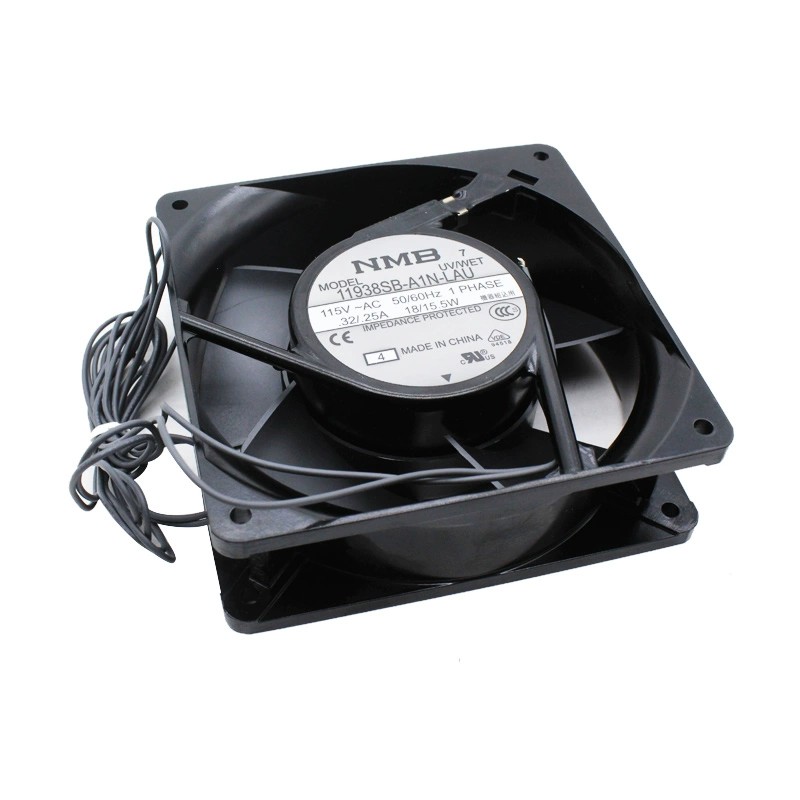

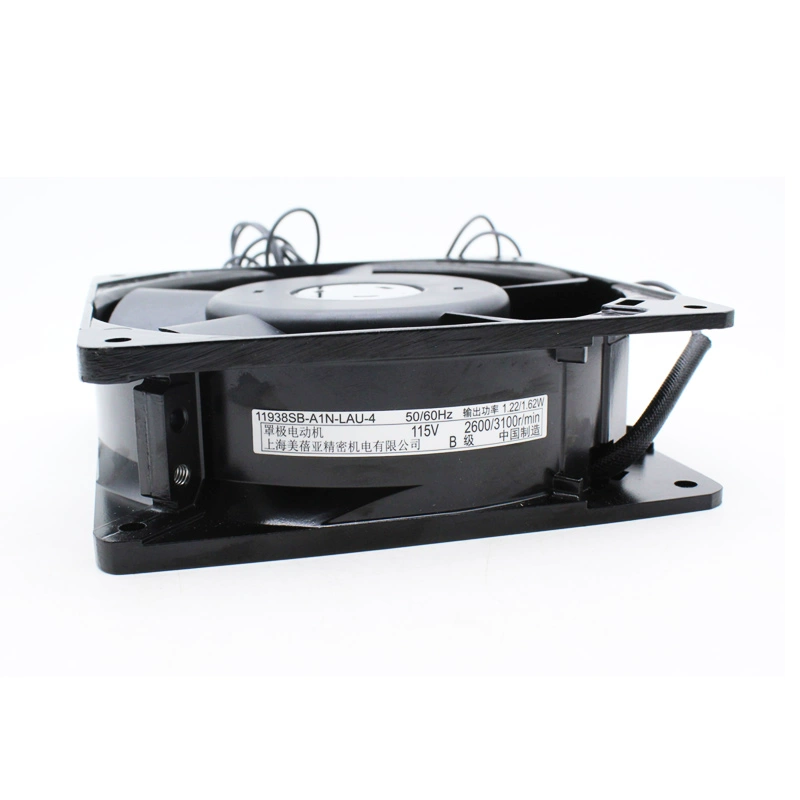

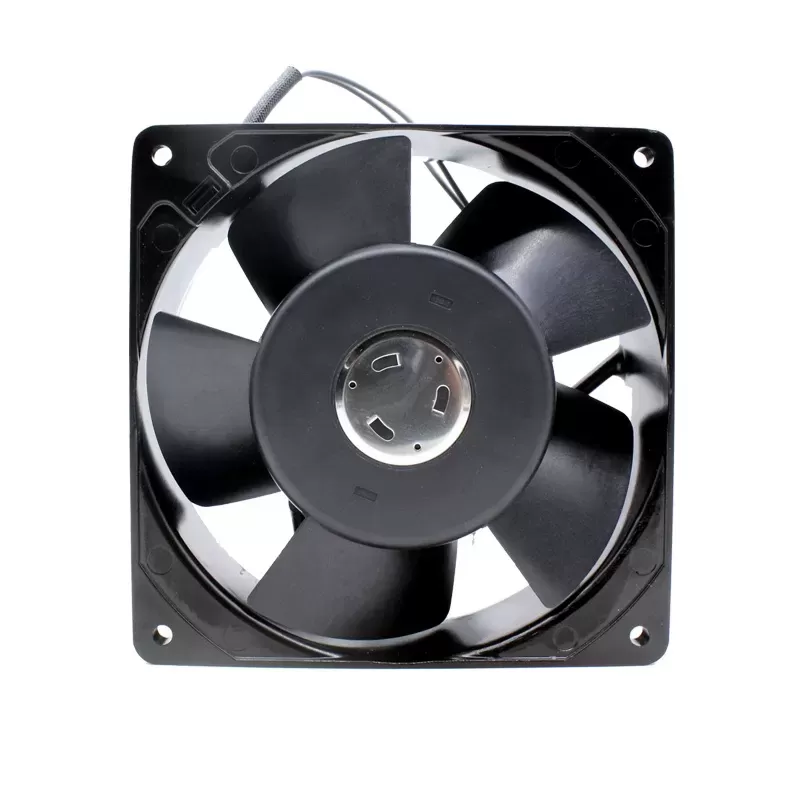

Description
The NMB 11938SB-A1N-LAU-4 is an AC Axial Cooling Fan from NMB Technologies, designed for robust and reliable thermal management in various applications. Operating on 115V AC power, it draws 0.25A of current, resulting in 15.5W of power consumption. Measuring 119mm x 119mm x 38mm, this fan is well-suited for cooling electronic enclosures, control panels, and other systems where general-purpose airflow is needed. It rotates at a speed of 3100 RPM, delivering an impressive airflow of 105.9 CFM and generating a static pressure of 0.401 inch-H2O. With a noise level of 44.0 dBA, it provides effective cooling. Equipped with 2-wire leads and durable ball bearings, the fan boasts a long life expectancy of 100,000 hours at 25°C. It is designed to operate reliably within a temperature range of -10°C to 65°C and features a shaded pole induction motor with thermal protection for dependable performance.
Model Number: 11938SB-A1N-LAU-4
Manufacturer: NMB Technologies
Type: AC Axial Cooling Fan
Rated Voltage: 115V AC
Frequency: 50/60 Hz
Rated Current: 0.25A
Rated Power: 15.5W
Speed: 3100 RPM
Airflow: 105.9 CFM
Static Pressure: 0.401 inch-H2O
Noise Level: 44.0 dBA
Dimensions: 119mm x 119mm x 38mm
Connector: 2-Wire Leads
Bearing Type: Ball Bearing
Life Expectancy: 100,000 hours at 25°C
Operating Temperature: -10°C to 65°C (14°F to 149°F)
Frame Material: Aluminum
Impeller Material: Plastic
Features: Shaded Pole Induction Motor, Thermal Protection
