Description

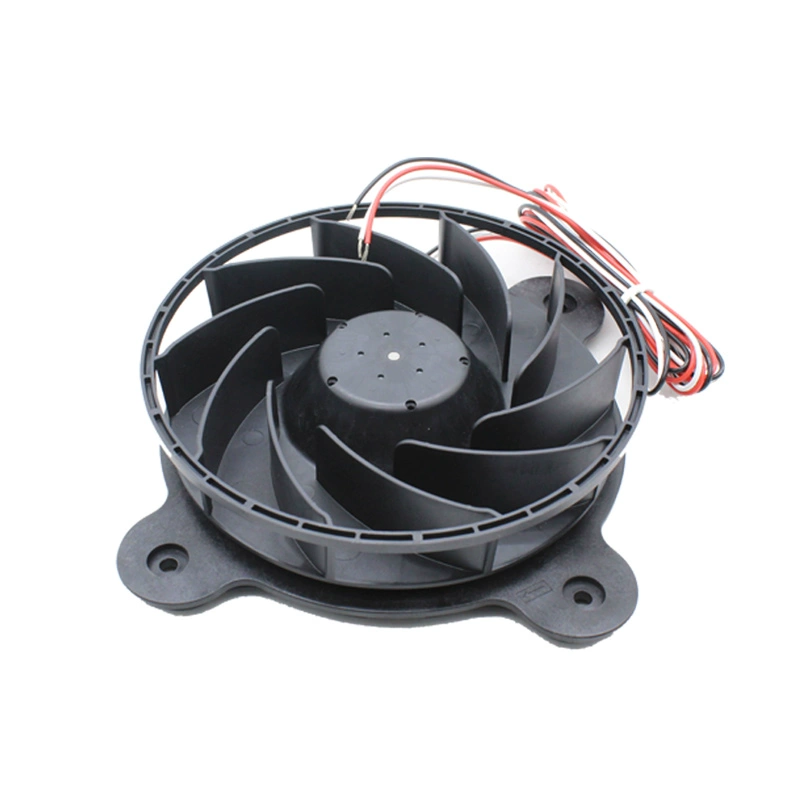

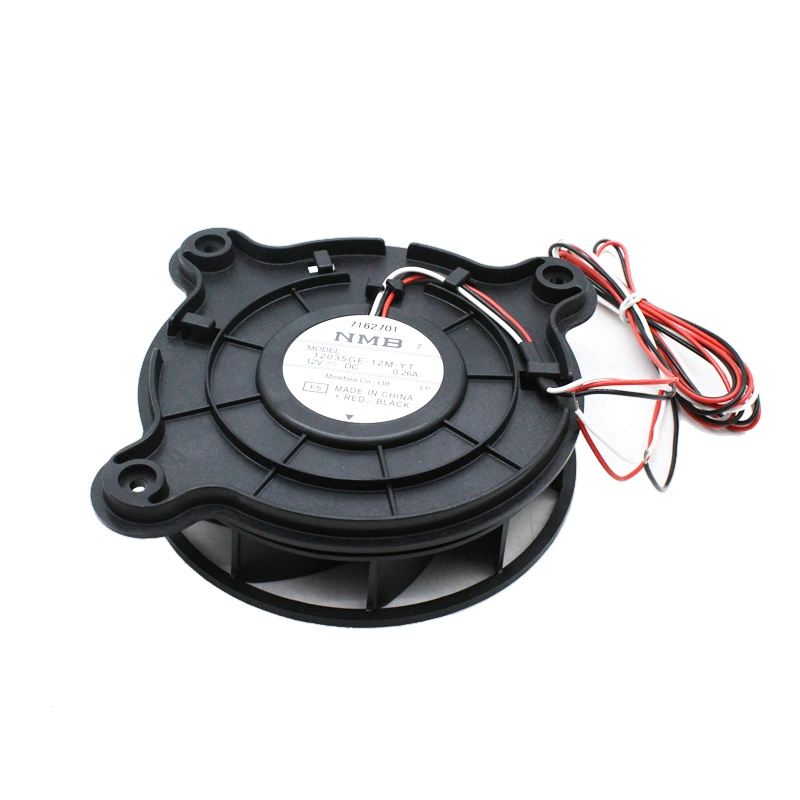

The NMB 12035GE-12M-YT-F5 is a 12V DC axial cooling fan from NMB Technologies Corporation, measuring 120mm x 120mm x 35mm. This fan is commonly utilized in refrigerator cooling applications due to its design for reliable and relatively quiet operation. Operating at a rated current of 0.26A (3.12W), it delivers an airflow of 46.66 CFM at a speed of 2100 RPM, generating a static pressure of 0.14 inch-H2O, with a noise level of 38.5 dBA. Equipped with durable ball bearings, it offers a long operational life of 50,000 hours at 25°C. The fan uses 3-wire leads, providing features such as a soft-restart function, lock protection, and polarity protection, making it a dependable component for continuous cooling in relevant appliance systems.
Model Number: 12035GE-12M-YT-F5
Manufacturer: NMB Technologies Corporation
Type: DC Axial Cooling Fan
Dimensions: 120mm x 120mm x 35mm
Rated Voltage: 12V DC
Rated Current: 0.26A
Rated Power: 3.12W
Speed: 2100 RPM
Airflow: 46.66 CFM / 1.32 m³/min
Static Pressure: 0.14 inch-H2O / 35.98 Pa
Noise Level: 38.5 dBA
Connector: 3-Wire Leads
Bearing Type: Ball Bearing
Life Expectancy: 50,000 hours at 25°C
Operating Temperature: Not explicitly specified for this exact model variant, but typically -10°C to 70°C for NMB DC fans.
Frame Material: Plastic
Impeller Material: Plastic
Features: Soft-restart function, Lock Protection, Polarity protection
