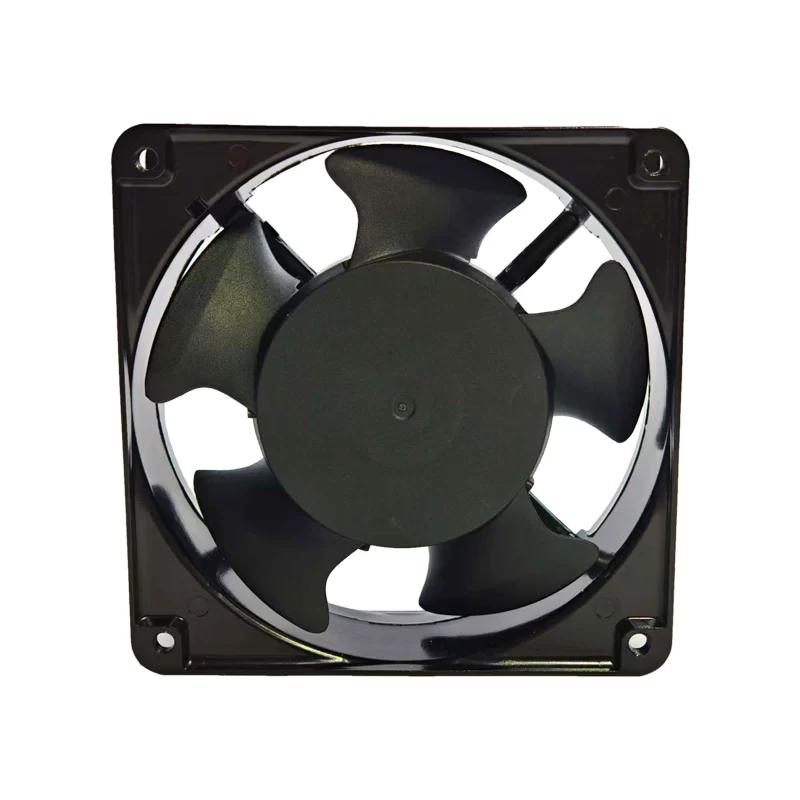

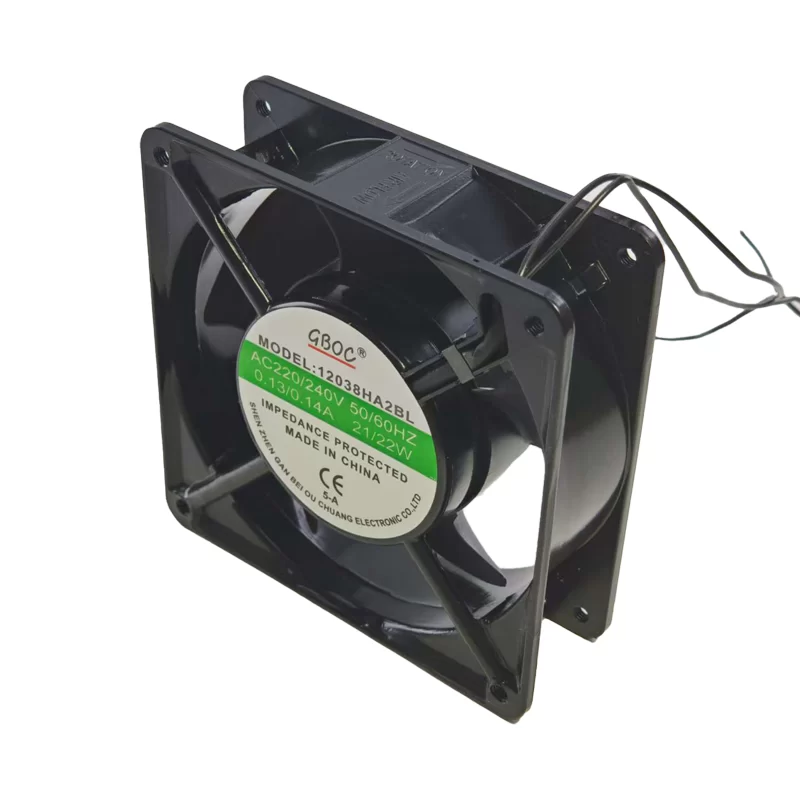

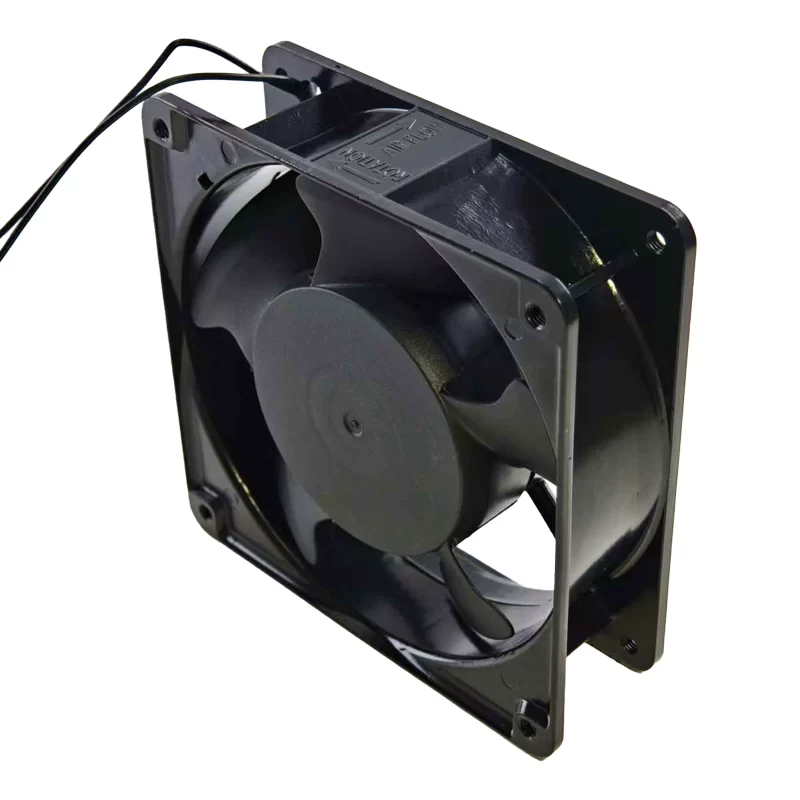

12038HA2BL GBOC 220/240V AC Axial Fan

Description

The GBOC 12038HA2BL is an AC axial fan with dimensions 120 x 120 x 38 mm. It operates on 220/240V AC at 50/60 Hz, drawing 0.13/0.14 A of current and consuming 21/22 W of power. The fan delivers an airflow of 82/90 CFM (139/153 m³/h) and generates a static pressure of 0.295/0.320 inH2O (7.49/8.13 mmH2O). It runs at speeds of 2650/2950 RPM with noise levels of 40/45 dB(A). This fan weighs 480 g and uses two-wire leads for basic power connection. Designed for robust ventilation in industrial applications.

12038HA2BL Fan Parameters
Manufacturer: GBOC
Model: 12038HA2BL
Fan Type: AC Axial Fan
Dimensions: 120 x 120 x 38 mm
Rated Voltage: 220/240V AC
Frequency: 50/60 Hz
Current Rating: 0.13/0.14 A
Power Consumption: 21/22 W
Airflow: 82/90 CFM (139/153 m³/h)
Static Pressure: 0.295/0.320 inH2O (7.49/8.13 mmH2O)
Speed: 2650/2950 RPM
Noise Level: 40/45 dB(A)
Weight: 480 g
Termination: Two Wire Leads
Application: The 12038HA2BL is a powerful AC axial fan designed for robust ventilation. Its performance characteristics make it suitable for cooling applications in industrial equipment, ventilation systems, control cabinets, and general-purpose air movement where reliability and consistent airflow are critical.
