Description
The NMB 12038VA-12R-BME is an exceptionally powerful and robust 12V DC axial fan, measuring 120x120x38mm. It’s engineered for the most demanding cooling applications where maximum airflow and static pressure are critical. Featuring ball bearings, this fan offers outstanding durability and a very long operational lifespan of 100,000 hours at 25°C. Drawing a substantial 3.6A of current, it delivers an extremely high 250 – 270 CFM of airflow and very strong 1.6 – 1.8 In H2O of static pressure at an exceptionally high 6500 – 7000 RPM. While producing a considerable noise level of 68 – 72 dBA, its primary focus is uncompromised cooling performance. Its 4-wire termination provides advanced functionality, including PWM control for precise speed management and a pulse sensor for real-time RPM monitoring. This fan is an ideal choice for high-density server racks, supercomputers, industrial machinery, and other systems requiring extreme and controllable thermal management in challenging environments.

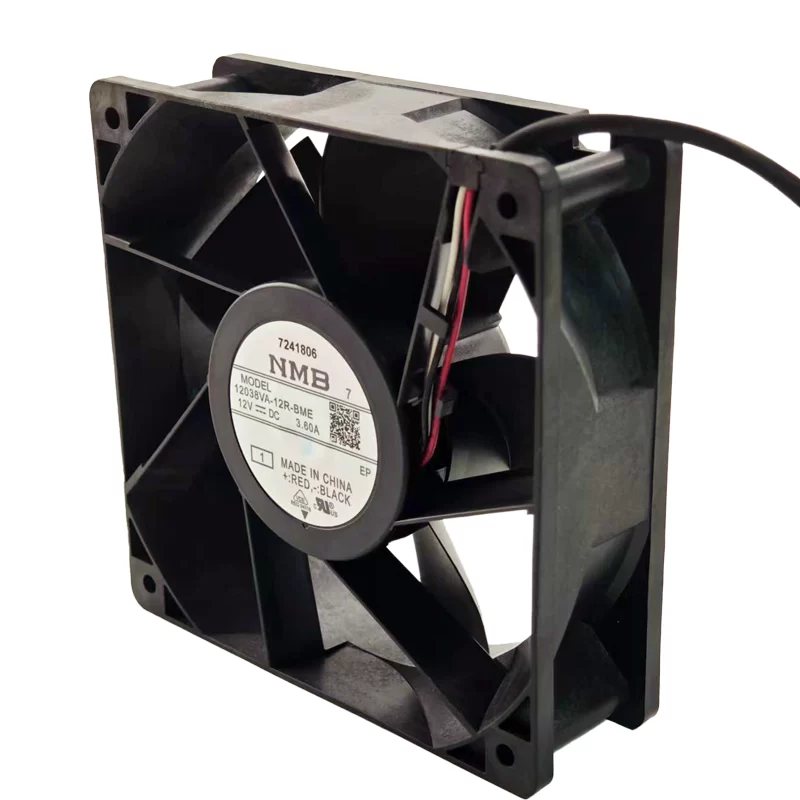

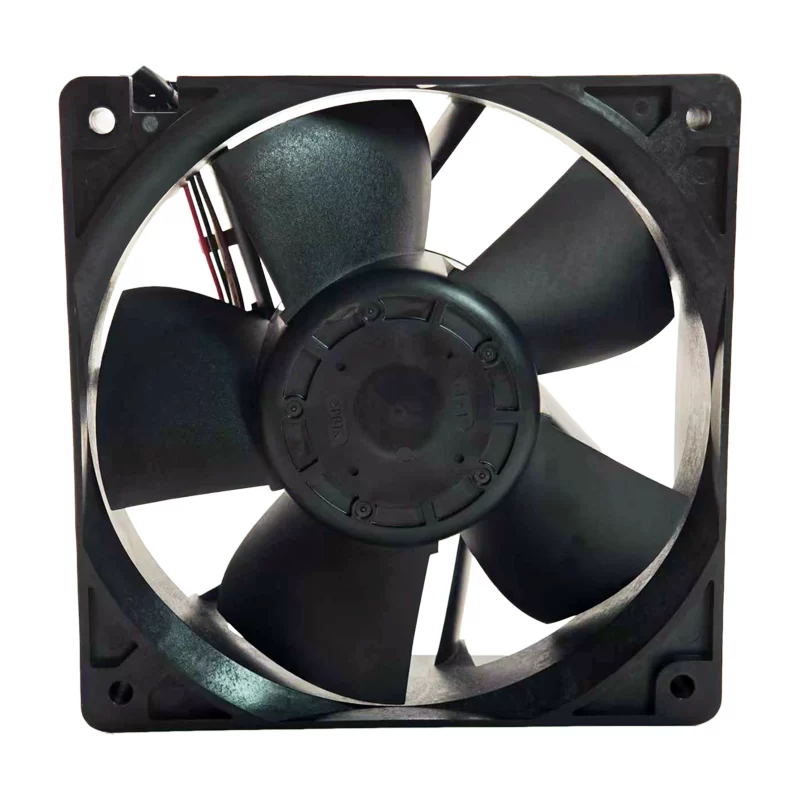

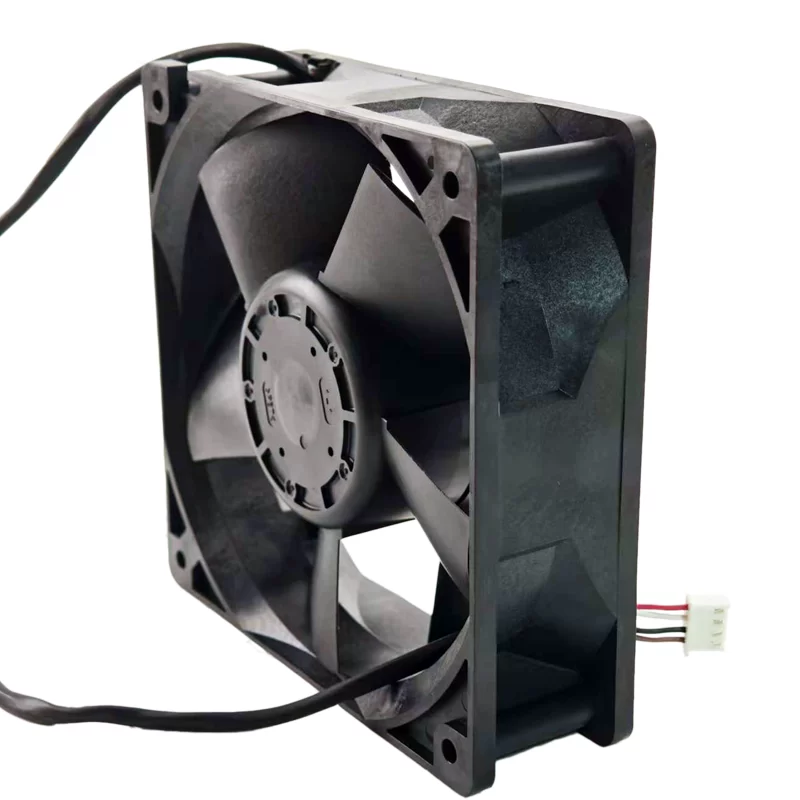

12038VA-12R-BME new original NMB 12V 12038 4-wire PWM speed regulation cooling fan
Model: 12038VA-12R-BME
Manufacturer: NMB Technologies Corporation
Type: DC Axial Fan
Dimensions: 120mm x 120mm x 38mm
Nominal Voltage: 12V DC
Current: 3.6A
Power Consumption: 43.2W
Speed: 6500 – 7000 RPM
Airflow: 250 – 270 CFM
Static Pressure: 1.6 – 1.8 In H2O
Noise Level: 68 – 72 dBA
Bearing Type: Ball Bearing
Life Expectancy: 100,000 hours at 25°C
Termination: 4-wire leads
Frame Material: Plastic
Blade Material: Plastic
Features: PWM Control, Pulse Sensor, Auto-Restart, Polarity Protection
