Description

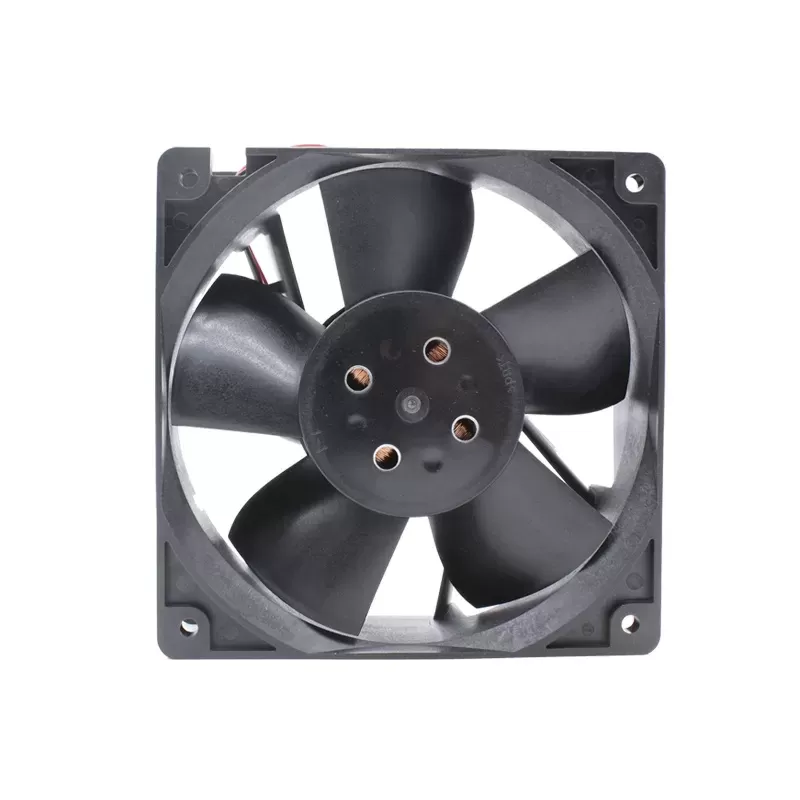

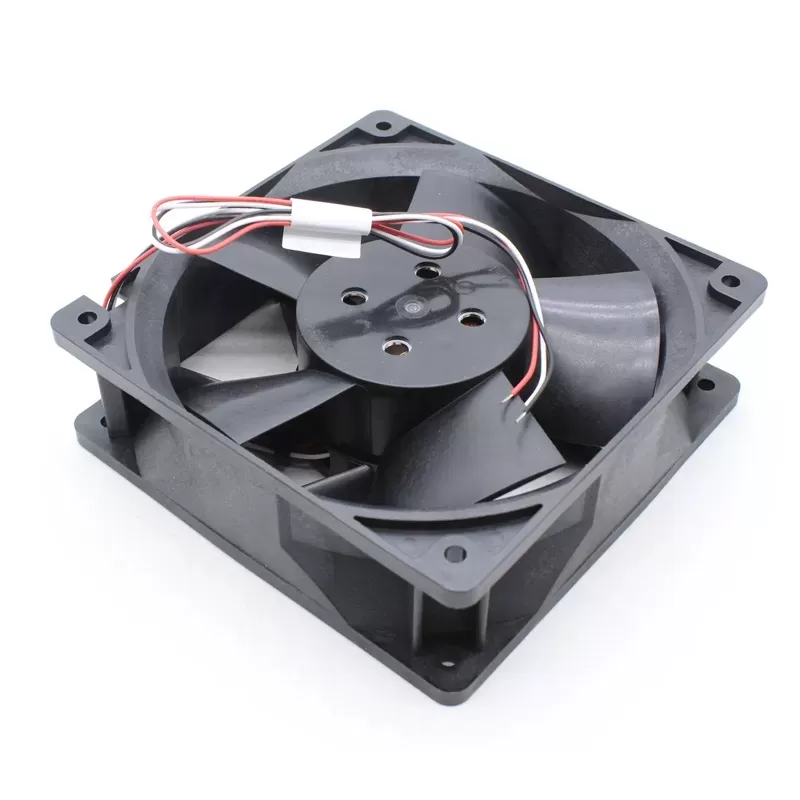

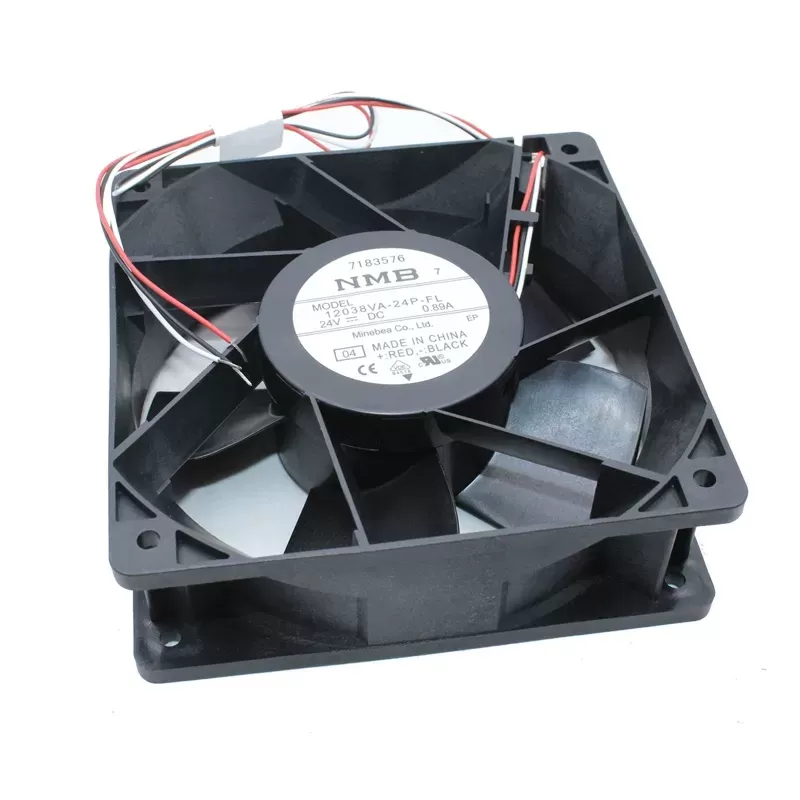

The NMB 12038VA-24P-FL-04 is a high-performance 24V DC axial cooling fan. Measuring 120mm x 120mm x 38mm, this fan is designed for effective cooling in a wide range of applications, including servers, power supplies, industrial machinery, and larger electronic enclosures where reliable and substantial airflow is crucial. It operates at a rated voltage of 24V DC and draws a current of 0.89A, resulting in a power consumption of 21.36W. This allows it to achieve a rotational speed of 5400 RPM, delivering an impressive airflow of 204 CFM and a static pressure of 0.85 inch-H2O. Its noise level is 58.0 dBA. The fan features durable ball bearings for an extended operational lifespan of 100,000 hours at 25°C. It comes with 3-wire leads for power, ground, and a tachometer output for speed monitoring, along with auto-restart and polarity protection.
Model Number: 12038VA-24P-FL-04
Manufacturer: NMB Technologies Corporation (Minebea)
Series: VA Series
Type: DC Axial Cooling Fan
Dimensions: 120mm x 120mm x 38mm
Rated Voltage: 24V DC
Operating Voltage Range: 14V to 27.6V DC
Rated Current: 0.89A
Rated Power: 21.36W
Speed: 5400 RPM
Airflow: 204 CFM (5.78 m³/min)
Static Pressure: 0.85 inch-H2O (212 Pa)
Noise Level: 58.0 dBA
Connector: 3-Wire Leads
Bearing Type: Ball Bearing
Life Expectancy: 100,000 hours at 25°C
Frame Material: Plastic
Impeller Material: Plastic
Features: Auto Restart, Polarity Protection, Tachometer Output
Operating Temperature: -10°C to +70°C
Weight: 220g
Approvals/Certifications: UL, CSA, TUV, CE, RoHS Compliant
