Description

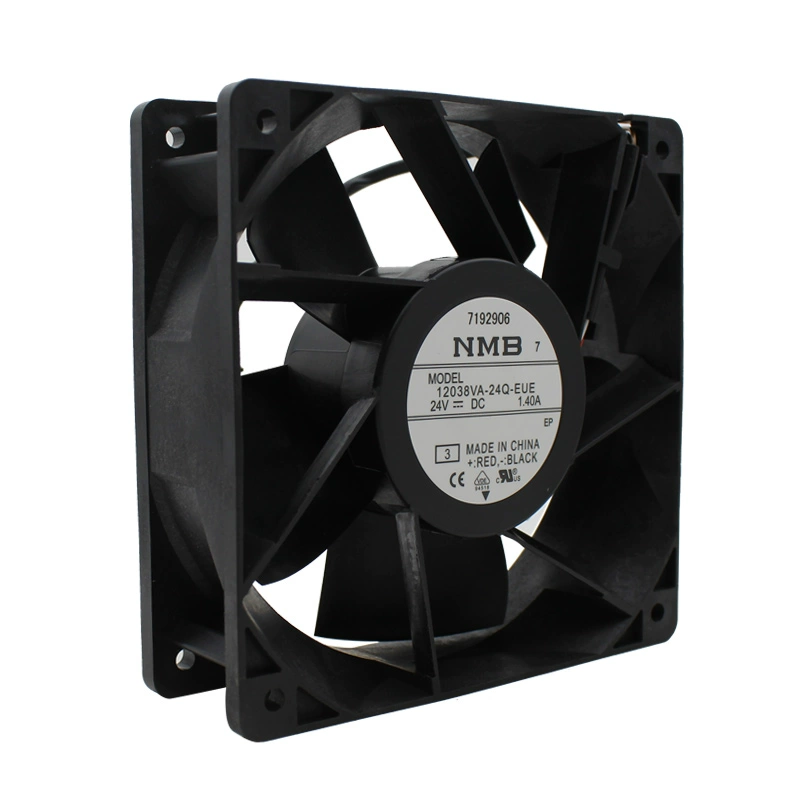

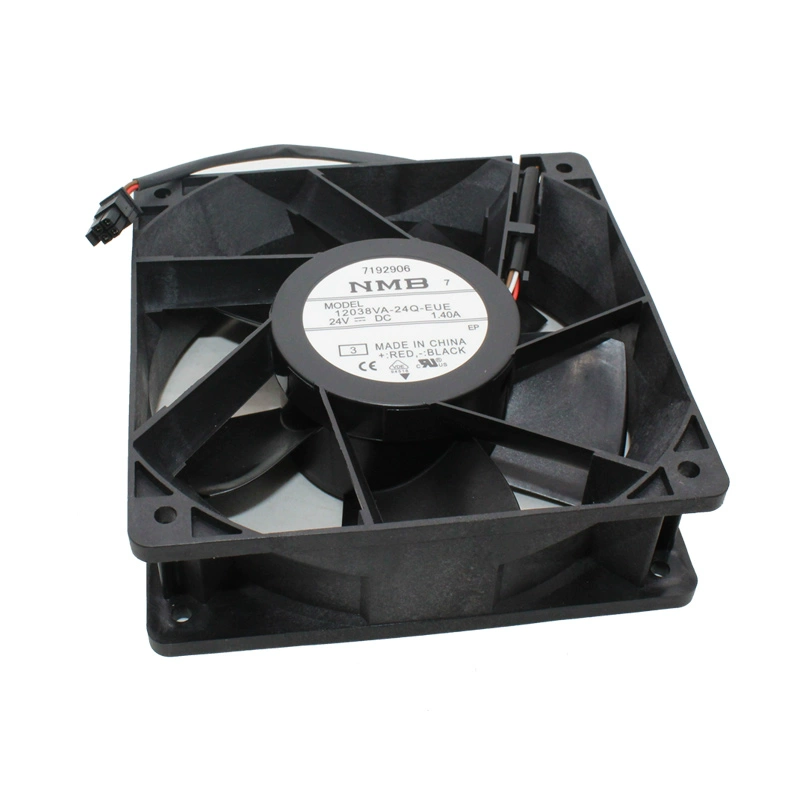

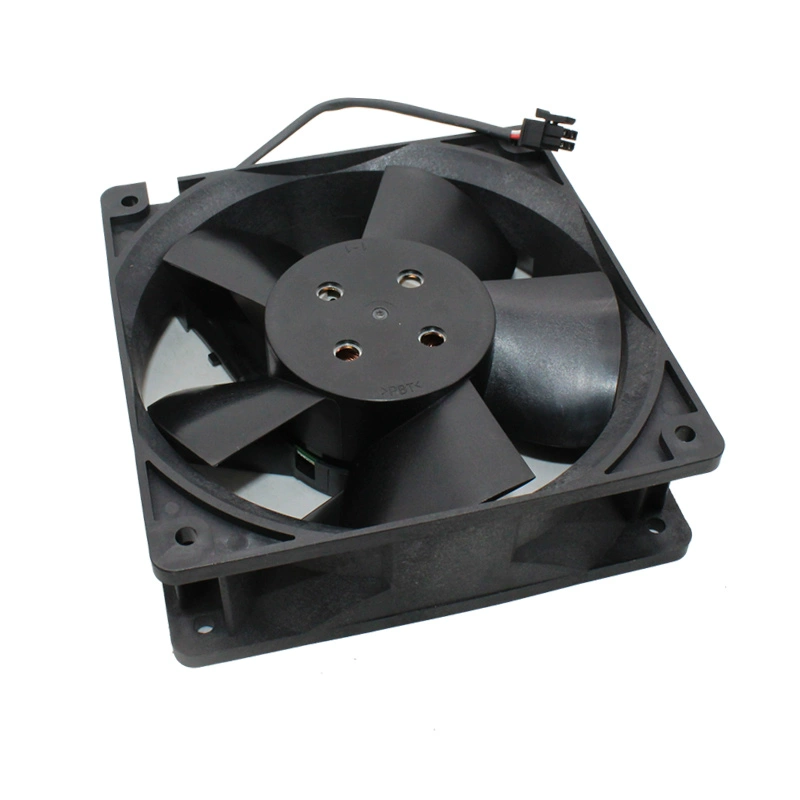

The NMB 12038VA-24Q-EUE-3 is a high-performance DC Axial Cooling Fan from NMB Technologies, designed for robust thermal management in demanding applications. Operating on 24V DC power, it draws 1.40A of current, resulting in 33.6W of power consumption. Measuring 120mm x 120mm x 38mm, this fan is well-suited for cooling in servers, networking equipment, industrial controls, and other systems where significant airflow is required. It rotates at a speed of 6300 RPM, delivering an impressive airflow of 240 CFM and generating substantial static pressure at 1.45 inch-H2O. With a noise level of 64 dBA, it provides powerful cooling. Equipped with 4-wire leads, it features PWM control for precise speed adjustment and a speed sensor (tachometer) for monitoring. Utilizing durable ball bearings, the fan boasts a long life expectancy of 100,000 hours at 25°C. It is designed to operate reliably within a temperature range of -10°C to 70°C and includes auto restart and polarity protection for dependable performance.
Model Number: 12038VA-24Q-EUE-3
Manufacturer: NMB Technologies
Type: DC Axial Cooling Fan
Rated Voltage: 24V DC
Operating Voltage Range: 18V to 27.6V DC
Rated Current: 1.40A
Rated Power: 33.6W
Speed: 6300 RPM
Airflow: 240 CFM
Static Pressure: 1.45 inch-H2O
Noise Level: 64 dBA
Dimensions: 120mm x 120mm x 38mm
Connector: 4-Wire Leads
Bearing Type: Ball Bearing
Life Expectancy: 100,000 hours at 25°C
Operating Temperature: -10°C to 70°C
Frame Material: Plastic
Impeller Material: Plastic
Features: Auto Restart, Speed Sensor (Tachometer), PWM Control, Polarity Protection
