Description

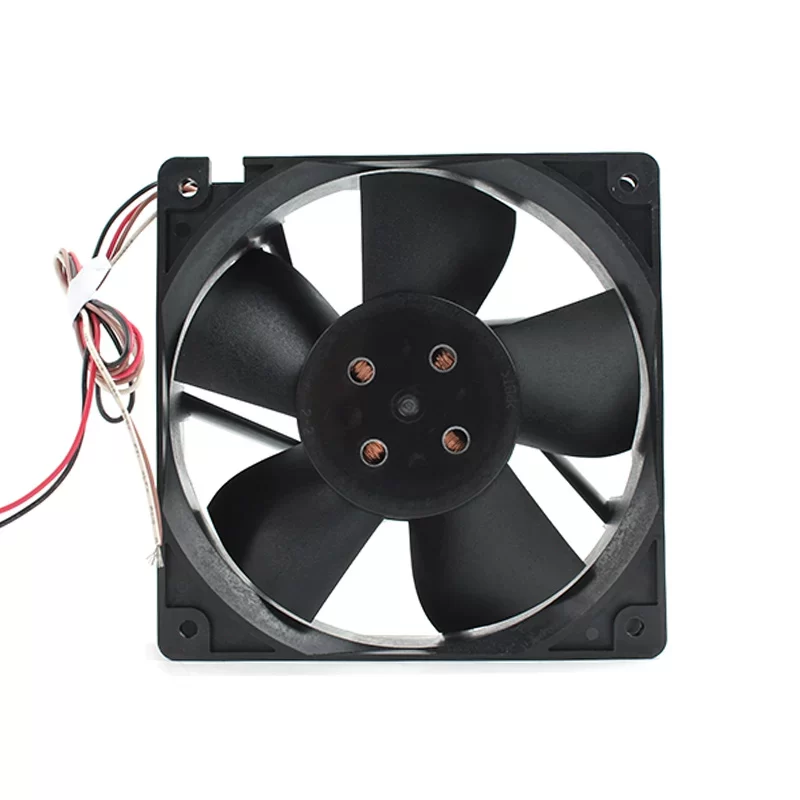

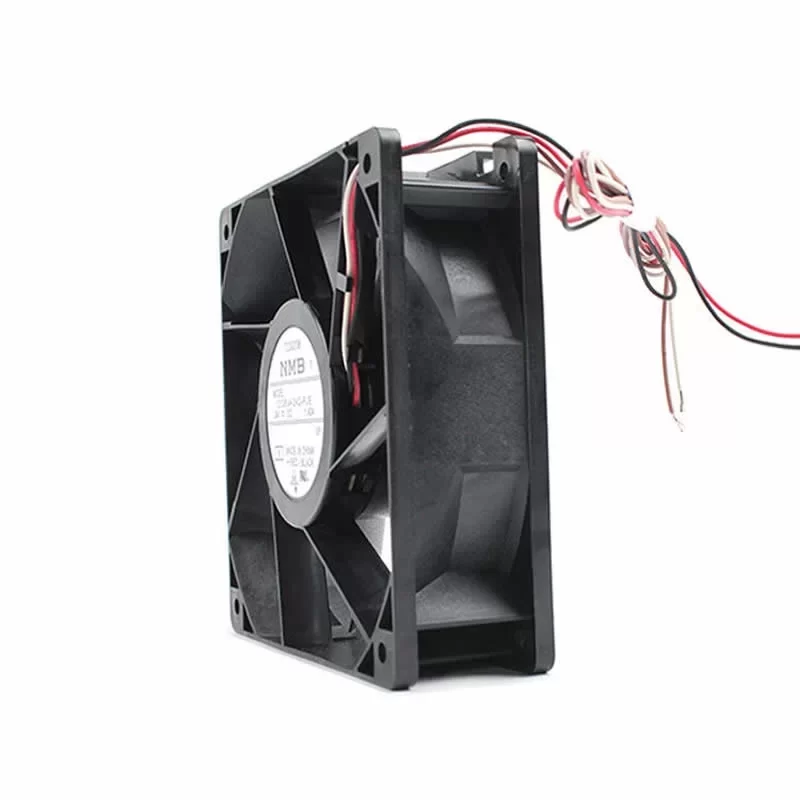

The NMB 12038VA-24Q-FUE-8 is a high-performance 24V DC Axial Fan with dimensions of 120 x 120 x 38 mm, specifically engineered for mission-critical cooling in Industrial Frequency Converters and high-density server environments. Driven by a high-torque brushless motor with precision dual ball bearings, this 370.0 g unit operates within a 14.0 – 27.6 VDC range, delivering a Max. Power Consumption of 24.96 W and a Max. Current Draw of 1.40 A at a rated speed of 5700 RPM. This High-performance unit features a specialized 5-blade aerodynamic impeller designed for extreme pressure stability, achieving a Max. Air Flow of 366.6 m³/h (215.77 CFM / 6.11 m³/min) and a Max. Static Pressure of 29.26 mmH₂O (287.0 Pa / 1.15 inH₂O). Featuring a maintenance-free structure and integrated PWM speed control with FG signal feedback, this IP54-rated fan is optimized for environments requiring extreme pressure stability and intelligent airflow management in industrial VFD and power electronics systems at the end.
12038VA-24Q-FUE-8 Fan Parameters
Model Number: 12038VA-24Q-FUE-8
Manufacturer: NMB Technologies Corporation
Type: DC Axial Fan
Impeller Size: 119 mm
Dimensions: 120 x 120 x 38 mm
Weight: 370.0 g
Bearing Type: Dual ball bearing
Nominal Voltage: 24 VDC
Voltage Range: 14.0 – 27.6 VDC
Max. Current Draw: 1.40 A
Max. Power Consumption: 24.96 W
Rated Speed: 5700 RPM
Max. Air Flow: 215.77 CFM (366.6 m³/h / 6.11 m³/min)
Max. Static Pressure: 29.26 mmH₂O (287.0 Pa / 1.15 inH₂O)
Working Air Flow: 366.6 m³/h
Static Pressure Increase: 287.0 Pa
Control / Signal Output: PWM Speed Control / FG Speed Signal
Motor Protection: Polarity and locked-rotor protection; Auto-restart
Insulation Class: Class E
Degree of Protection: IP54
Electrical Hookup: 4-Wires (Lead wires, AWG#24)
Number of Blades: 5
Direction of Rotation: Clockwise (viewed toward rotor)
Impeller Material: Thermoplastic PBT (UL 94V-0)
Frame Material: Thermoplastic PBT (UL 94V-0)
Sound Pressure Level: 63.0 dB(A)
Service Life: 40,000 h (at 60 °C)
Operating Temperature: -10 – +70 °C
Standard Compliance: CE; UL; CSA; VDE
Application
The NMB 12038VA-24Q-FUE-8 axial fan is the primary cooling component for high-power industrial frequency converters, data center racks, and large-scale power supply units requiring PWM speed control and high-pressure stability in 24VDC environments.
