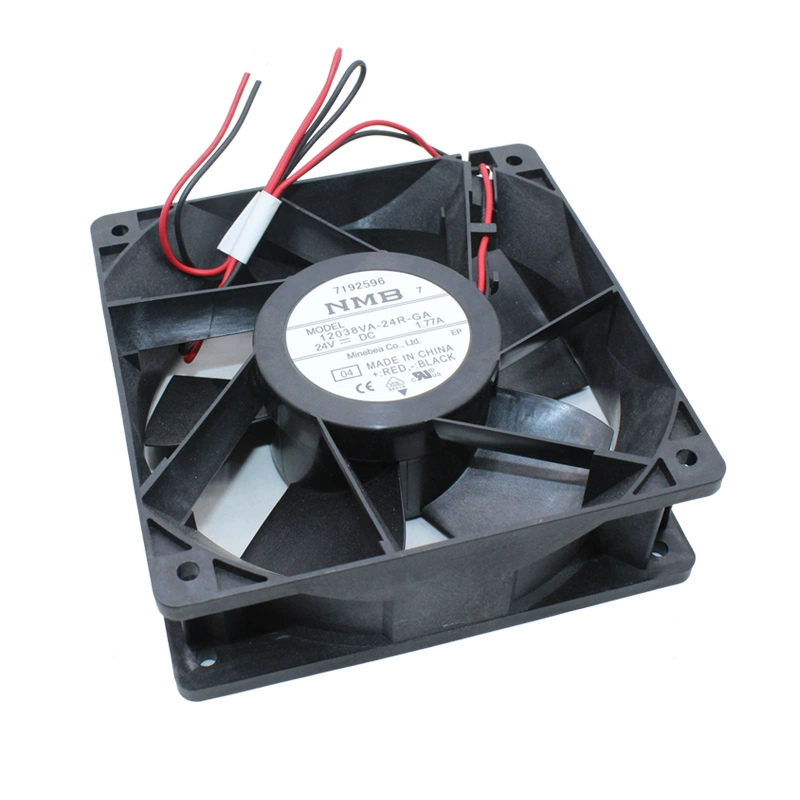

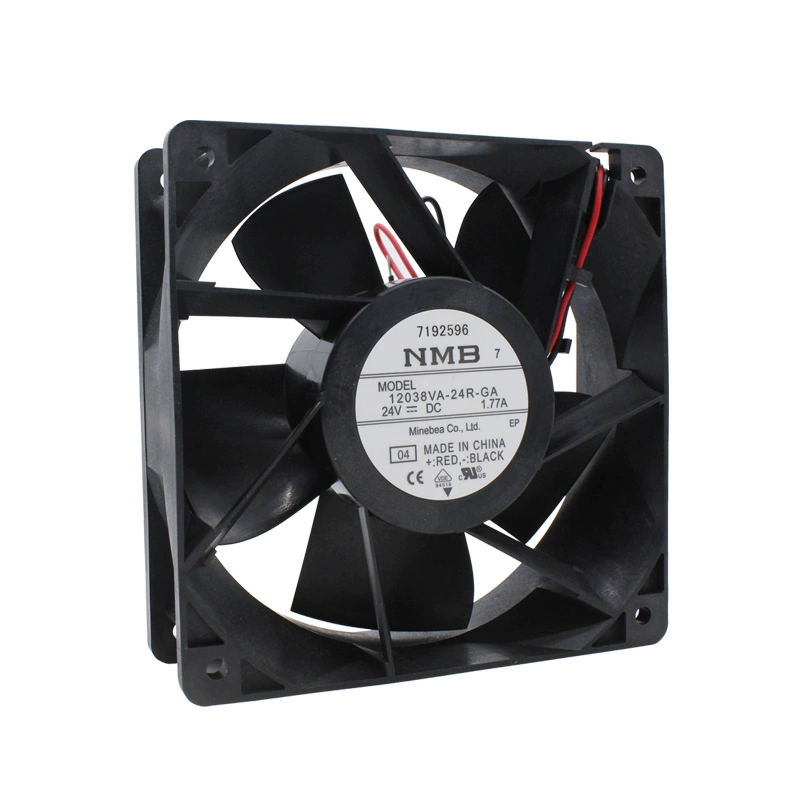

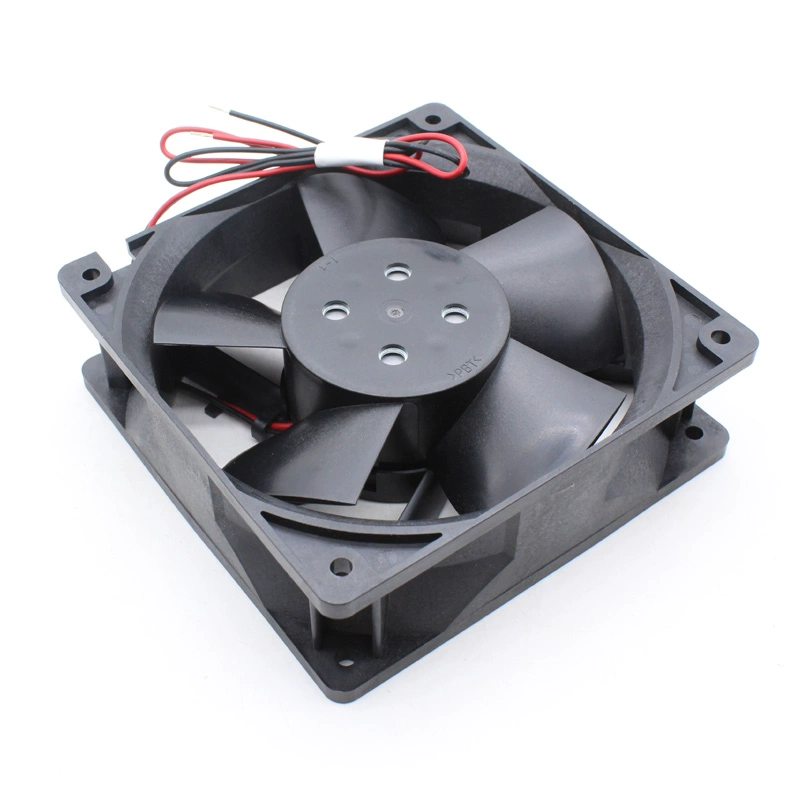

12038VA-24R-GA-04 NMB 24V 1.77A DC axial cooling fan

$22.71

SKU: 12038VA-24R-GA-04
Tag:

Description

The NMB 12038VA-24R-GA-04 is an exceptionally powerful DC Axial Cooling Fan from NMB Technologies, engineered for extreme thermal management in highly demanding and harsh environments. Operating on 24V DC power, it draws a significant 1.77A of current, resulting in 42.48W of power consumption. Measuring 120mm x 120mm x 38mm, this fan is ideally suited for cooling applications in high-performance servers, telecommunications equipment, industrial machinery, and other systems where a very large volume of air needs to be moved against high impedance, especially in conditions requiring protection against high-pressure, high-temperature washdowns. It rotates at a very high speed of 6900 RPM, delivering an impressive airflow of 265 CFM and generating substantial static pressure at 1.65 inch-H2O. With a noise level of 69 dBA, it provides robust cooling. Equipped with 2-wire leads and durable ball bearings, the fan boasts a long life expectancy of 40,000 hours at 60°C (or 100,000 hours at 25°C). It is designed to operate reliably within a temperature range of -10°C to 60°C and includes auto restart, polarity protection, and IP69K ingress protection for dependable performance in extreme conditions.
Model Number: 12038VA-24R-GA-04
Manufacturer: NMB Technologies
Type: DC Axial Cooling Fan
Rated Voltage: 24V DC
Operating Voltage Range: 18V to 27.6V DC
Rated Current: 1.77A
Rated Power: 42.48W
Speed: 6900 RPM
Airflow: 265 CFM
Static Pressure: 1.65 inch-H2O
Noise Level: 69 dBA
Dimensions: 120mm x 120mm x 38mm
Connector: 2-Wire Leads (Red for + / Black for -)
Bearing Type: Ball Bearing
Life Expectancy: 40,000 hours at 60°C (or 100,000 hours at 25°C)
Operating Temperature: -10°C to 60°C
Frame Material: Plastic (UL94V-0)
Impeller Material: Plastic (UL94V-0)
Features: Auto Restart, Polarity Protection, IP69K Ingress Protection

12038VA-24R-GA-04 NMB 24V 1.77A DC axial cooling fan
12038VA-24R-GA-04 NMB 24V 1.77A DC axial cooling fan
12038VA-24R-GA-04 NMB 24V 1.77A DC axial cooling fan
12038VA-24R-GA-04 NMB 24V 1.77A DC axial cooling fan

Additional information

Weight 0.5 kg
