Description

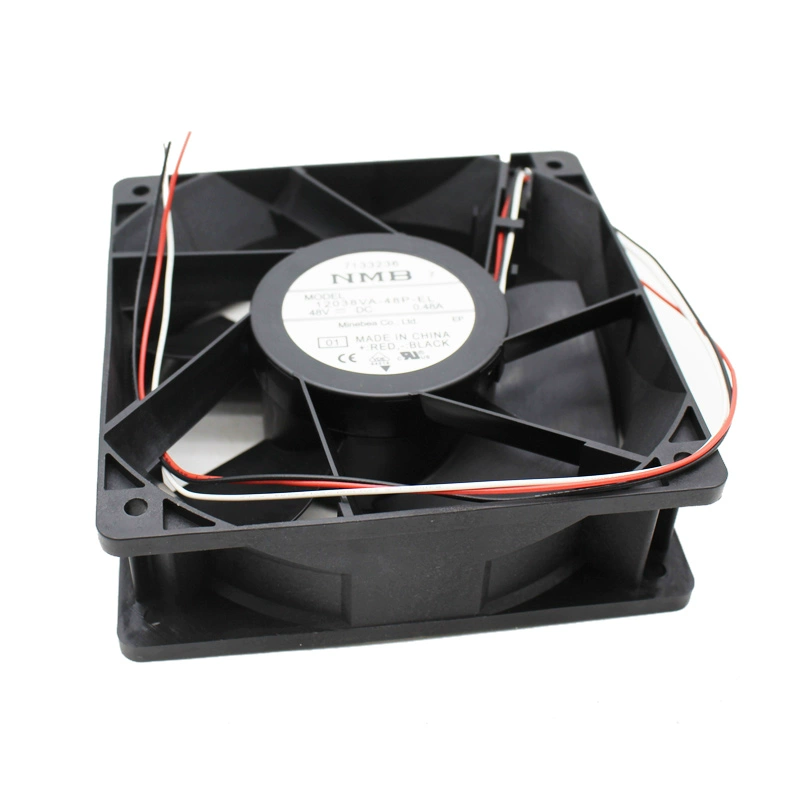

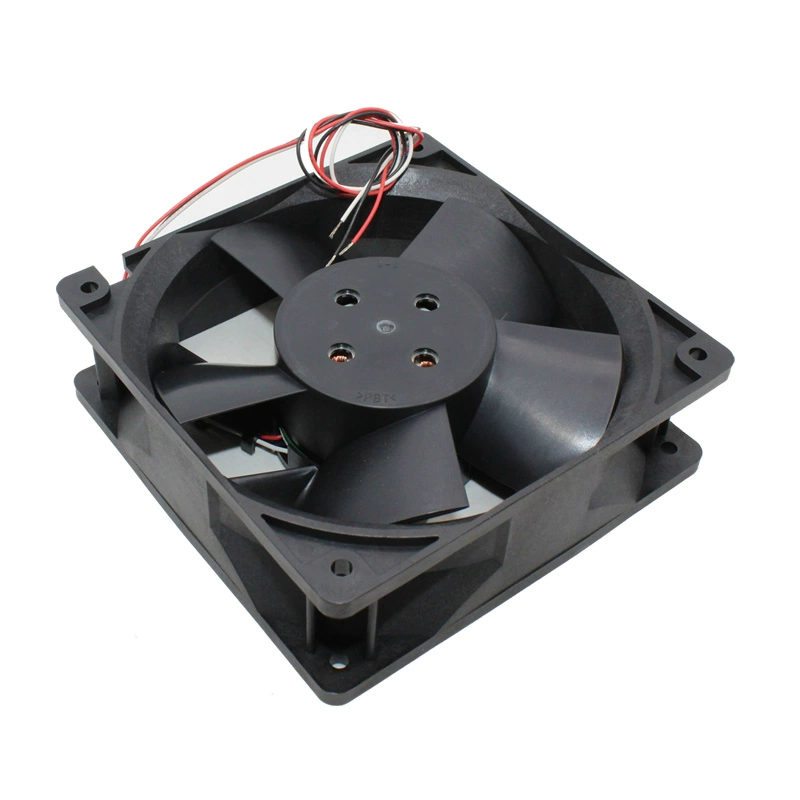

The NMB 12038VA-48P-EL-01 is a high-performance DC Axial Cooling Fan from NMB Technologies, designed for robust thermal management in demanding applications. Operating on 48V DC power, it draws 0.48A of current, resulting in 23.04W of power consumption. Measuring 120mm x 120mm x 38mm, this fan is well-suited for cooling in servers, networking equipment, industrial controls, and other systems where significant airflow is required. It rotates at a speed of 4700 RPM, delivering an impressive airflow of 190 CFM and generating substantial static pressure at 0.80 inch-H2O. With a noise level of 59 dBA, it provides powerful cooling. Equipped with 3-wire leads, it includes a speed sensor (tachometer) for monitoring and utilizes durable ball bearings. The fan boasts a long life expectancy of 100,000 hours at 25°C. It is designed to operate reliably within a temperature range of -10°C to 70°C and includes auto restart and polarity protection for dependable performance.
Model Number: 12038VA-48P-EL-01
Manufacturer: NMB Technologies
Type: DC Axial Cooling Fan
Rated Voltage: 48V DC
Operating Voltage Range: 38V to 52.8V DC
Rated Current: 0.48A
Rated Power: 23.04W
Speed: 4700 RPM
Airflow: 190 CFM
Static Pressure: 0.80 inch-H2O
Noise Level: 59 dBA
Dimensions: 120mm x 120mm x 38mm
Connector: 3-Wire Leads
Bearing Type: Ball Bearing
Life Expectancy: 100,000 hours at 25°C
Operating Temperature: -10°C to 70°C
Frame Material: Plastic
Impeller Material: Plastic
Features: Auto Restart, Speed Sensor (Tachometer), Polarity Protection
