Description

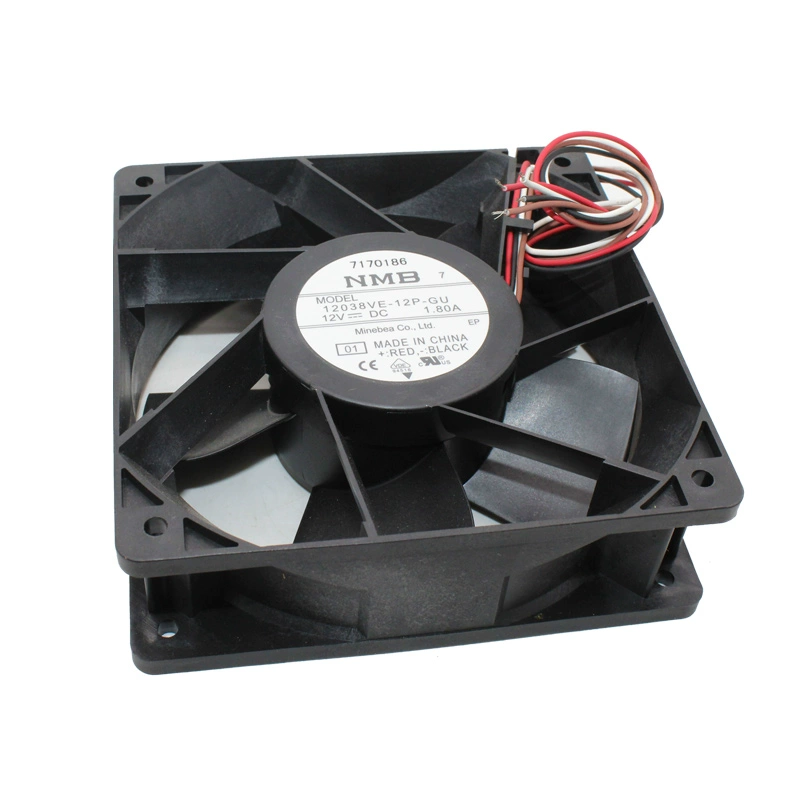

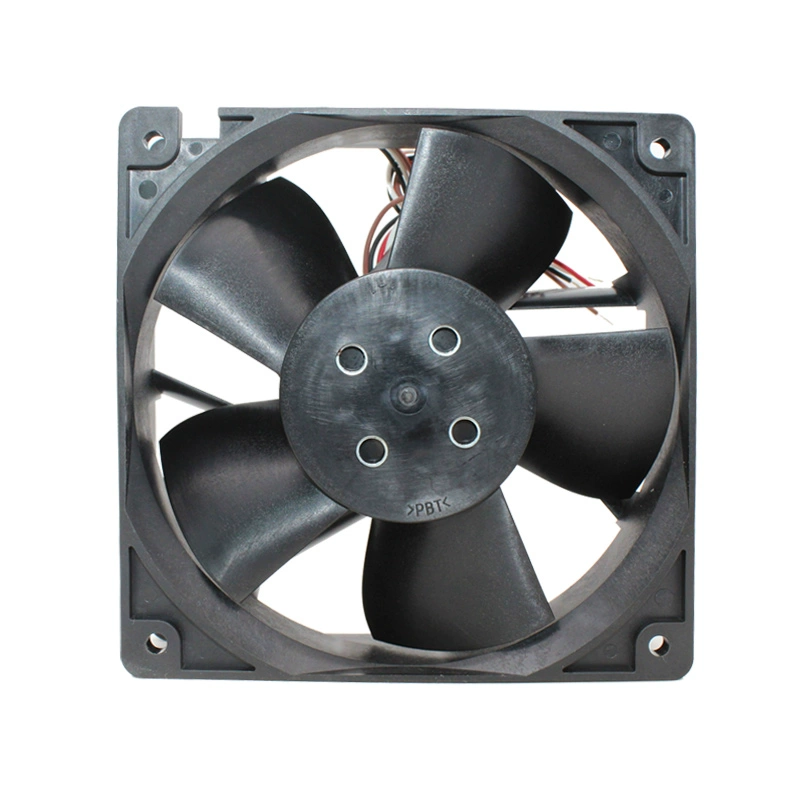

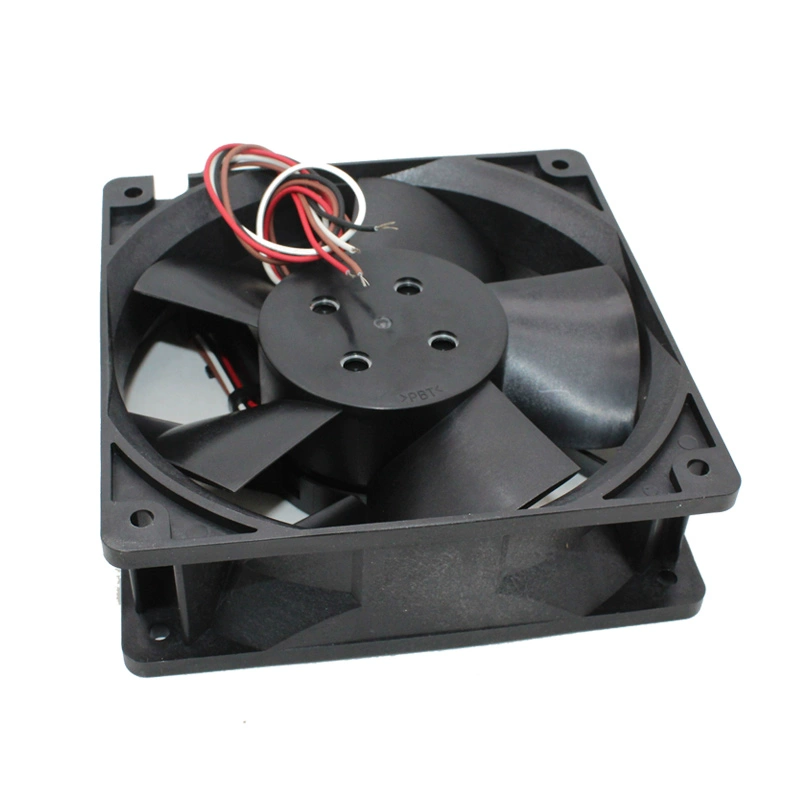

The NMB 12038VE-12P-GU-01 is a high-performance DC Axial Cooling Fan from NMB Technologies, designed for robust thermal management in challenging environments. Operating on 12V DC power, it draws 1.80A of current, resulting in 21.6W of power consumption. Measuring 120mm x 120mm x 38mm, this fan is well-suited for cooling demanding applications in servers, networking equipment, industrial controls, and other systems where significant airflow is required, especially in conditions requiring protection against dust and water. It rotates at a speed of 5000 RPM, delivering an impressive airflow of 189.9 CFM and generating substantial static pressure at 0.90 inch-H2O. With a noise level of 59 dBA, it provides powerful cooling. Equipped with 4-wire leads, it features PWM control for precise speed adjustment and a speed sensor (tachometer) for monitoring. Utilizing durable ball bearings, the fan boasts a life expectancy of 40,000 hours at 60°C (or 100,000 hours at 25°C). It is designed to operate reliably within a temperature range of -10°C to 60°C and includes auto restart, polarity protection, and IP68 ingress protection for dependable performance in harsh environments.
Model Number: 12038VE-12P-GU-01
Manufacturer: NMB Technologies
Type: DC Axial Cooling Fan
Rated Voltage: 12V DC
Operating Voltage Range: 10V to 13.8V DC
Rated Current: 1.80A
Rated Power: 21.6W
Speed: 5000 RPM
Airflow: 189.9 CFM
Static Pressure: 0.90 inch-H2O
Noise Level: 59 dBA
Dimensions: 120mm x 120mm x 38mm
Connector: 4-Wire Leads
Bearing Type: Ball Bearing
Life Expectancy: 40,000 hours at 60°C (or 100,000 hours at 25°C)
Operating Temperature: -10°C to 60°C
Frame Material: Plastic
Impeller Material: Plastic
Features: Auto Restart, Speed Sensor (Tachometer), PWM Control, Polarity Protection, IP68 Ingress Protection
