Description

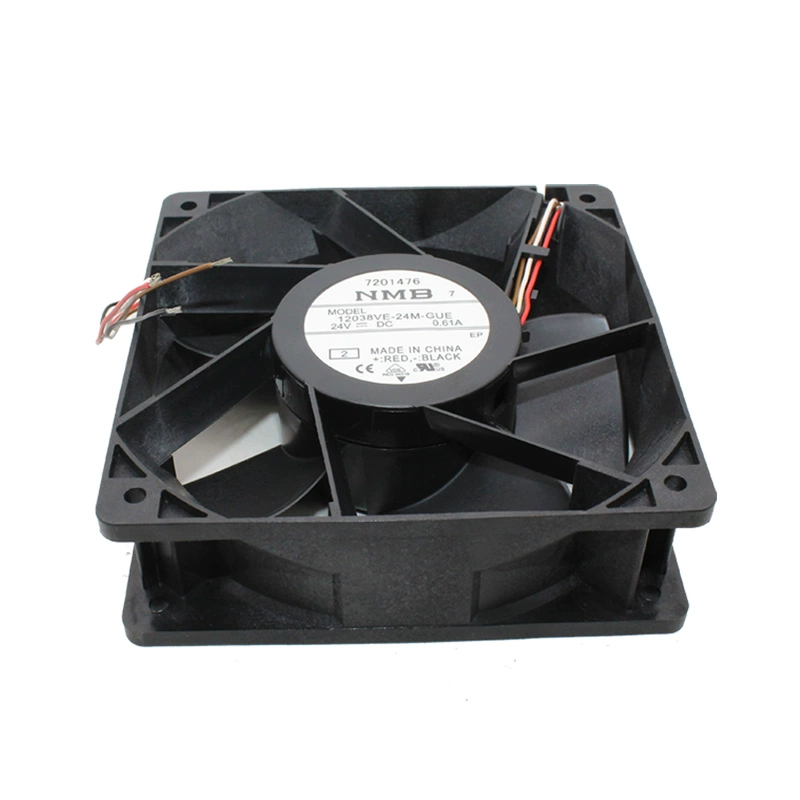

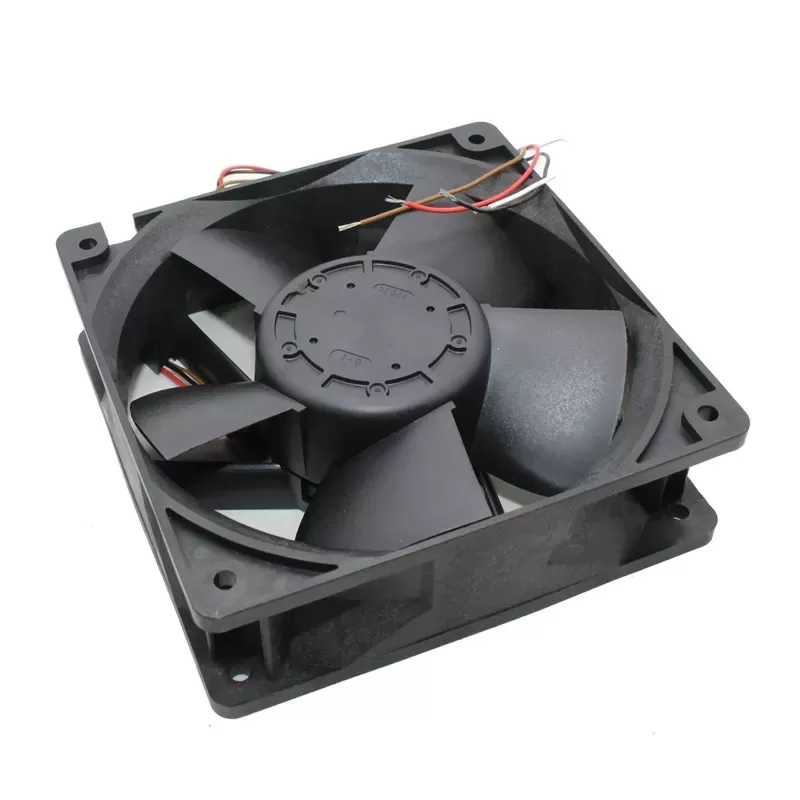

The NMB 12038VE-24M-GUE-2 is a high-performance 24V DC axial cooling fan from NMB Technologies Corporation, measuring 120mm x 120mm x 38mm. Operating at a rated current of 0.61A (14.64W), this fan is designed to provide substantial airflow for various industrial and electronic cooling applications. It achieves a speed of 3800 RPM, delivering 141 CFM of airflow and a static pressure of 0.60 inch-H2O, with a noise level of 53.0 dBA. Equipped with durable ball bearings, it ensures a long operational life of 40,000 hours at 60°C. The fan utilizes 4-wire leads, providing both PWM control for precise speed adjustment and a speed sensor for real-time monitoring of fan status, along with auto-restart, polarity protection, and an IP68 rating for excellent protection against dust and water ingress, making it a robust solution for demanding environments.
Model Number: 12038VE-24M-GUE-2
Manufacturer: NMB Technologies Corporation
Type: DC Axial Cooling Fan
Dimensions: 120mm x 120mm x 38mm
Rated Voltage: 24V DC
Rated Current: 0.61A
Rated Power: 14.64W
Speed: 3800 RPM
Airflow: 141 CFM / 4.0 m³/min
Static Pressure: 0.60 inch-H2O / 150 Pa
Noise Level: 53.0 dBA
Connector: 4-Wire Leads
Bearing Type: Ball Bearing
Life Expectancy: 40,000 hours at 60°C (L10)
Operating Temperature: -10°C to 60°C
Frame Material: Plastic (Black UL94V-0)
Impeller Material: Plastic (Black UL94V-0)
Features: PWM Control, Speed Sensor (Tachometer Output), Auto Restart, Polarity Protection, IP68 Rating
