Description

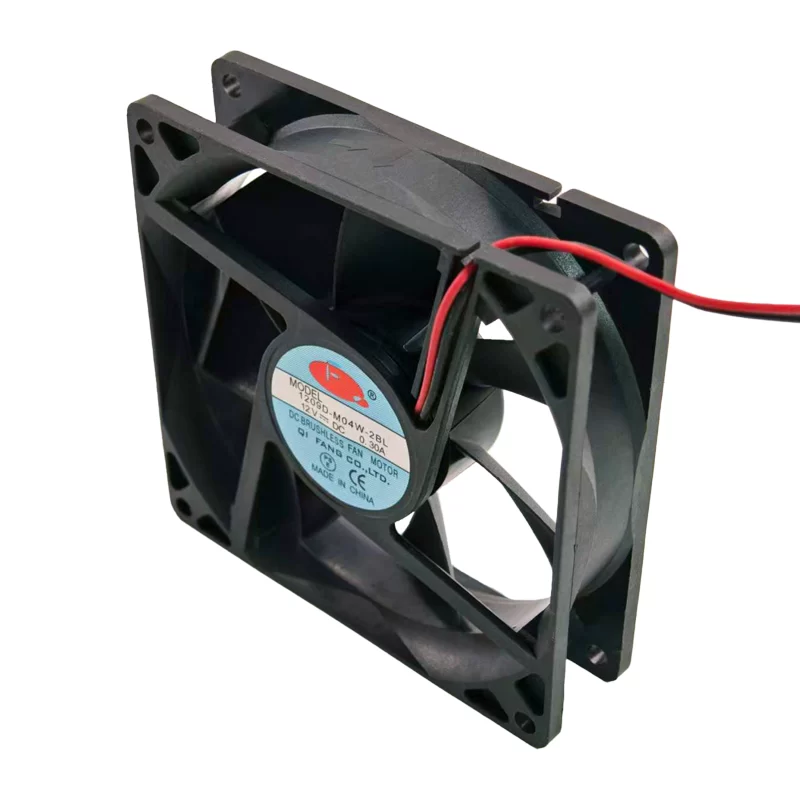

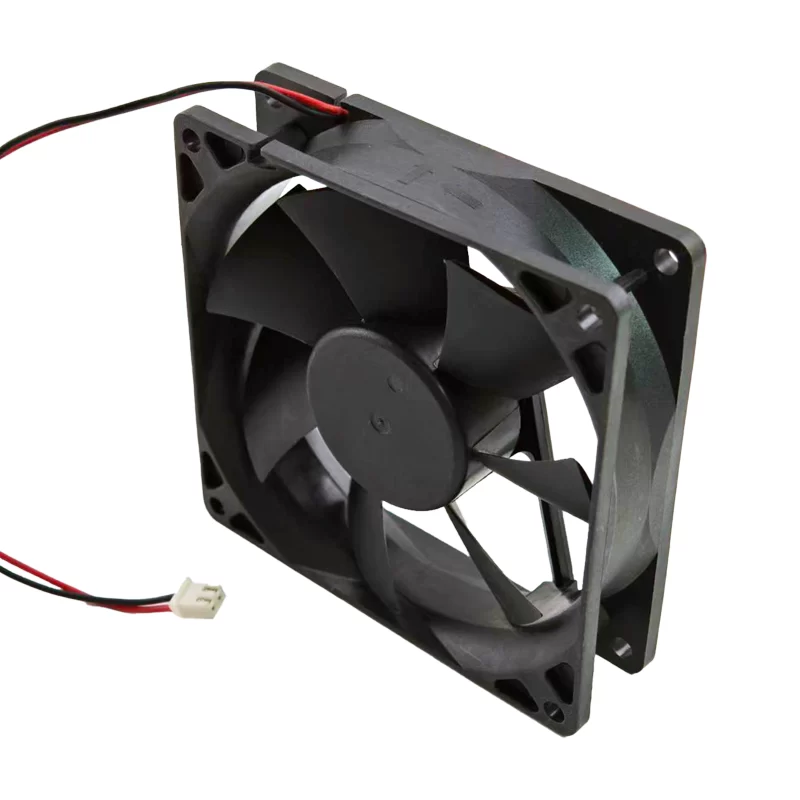

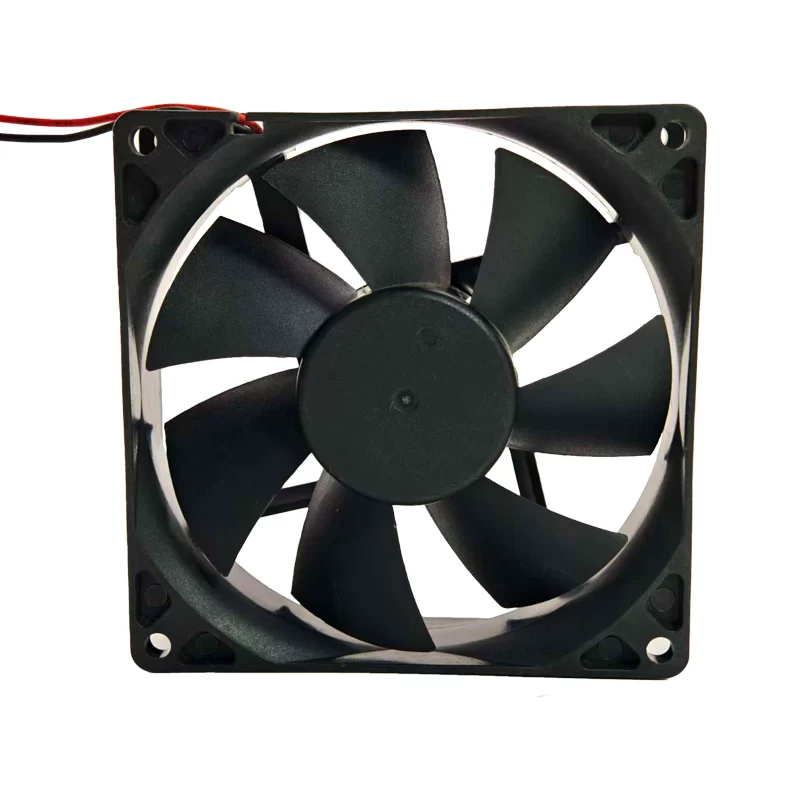

The QIFANG 1209D-M04W-2BL is a high-quality DC Axial Fan measuring 92×92×25 mm. It operates on a nominal voltage of 12 VDC, drawing a rated current of 0.30 A for a power consumption of 3.6 W. The fan is built with 7 blades and features a durable 2-Ball Bearing system. Based on its specifications, this medium-speed fan runs at approximately 2,800 RPM, delivering an estimated airflow of 68.0 m3/h (40.0 CFM) and a static pressure of 35.0 Pa (0.141 inH2O). Both the frame and impeller are constructed from UL94V−0 rated Plastic.
1209D-M04W-2BL Fan Parameters
Model: 1209D-M04W-2BL
Manufacturer: QIFANG
Fan Type: DC Axial Fan
Dimensions: 92×92×25 mm
Nominal Voltage: 12 VDC
Rated Current: 0.30 A
Rated Power: 3.6 W
Rated Speed: 2,800 RPM
Airflow: 68.0 m3/h (40.0 CFM)
Static Pressure: 35.0 Pa (0.141 inH2O)
Noise Level: 38 dB(A)
Bearing System: 2-Ball Bearing
Termination: 2-Wire Leads
Number of blades: 7
Frame Material: Plastic (UL94V−0)
Impeller Material: Plastic (UL94V−0)
Motor Design: Brushless DC Motor
Application
This fan is suitable for standard cooling applications within electronic devices where the 92 mm form factor is required. Its moderate speed and use of a 2-Ball Bearing system ensure a good blend of cooling performance and longevity, making it useful in desktop computers, small telecommunication equipment, networking hardware, and general electronic cabinets.
