Description

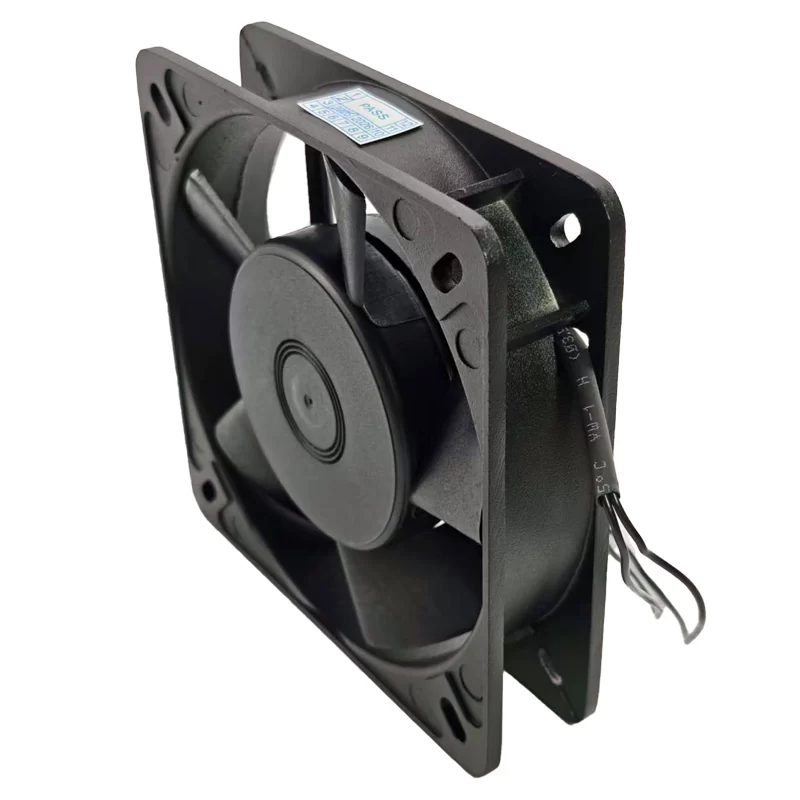

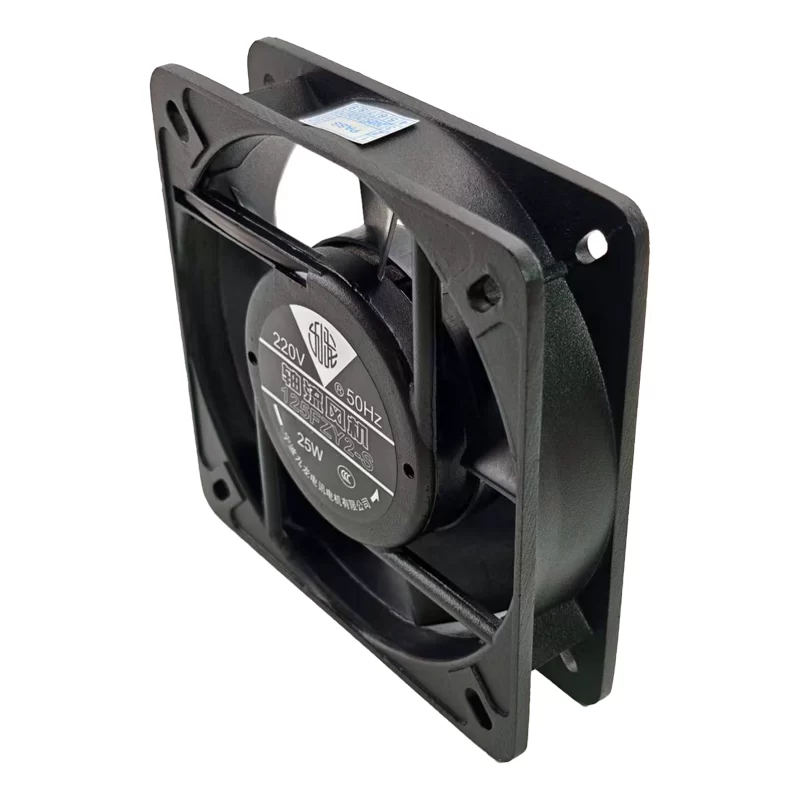

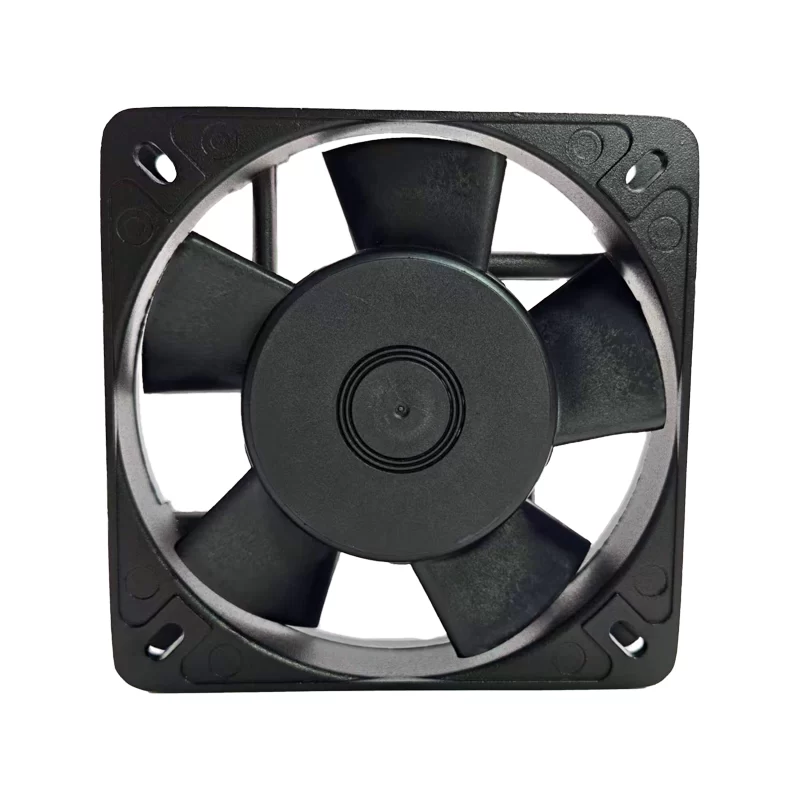

The Jiulong 125FZY2-S is an AC axial fan with dimensions of 135mm x 135mm x 32mm, designed for effective air circulation and cooling in various industrial settings. It operates on 220 VAC at 50 Hz, drawing 0.34A of current and consuming 25W of power. This fan achieves a speed of 2500 RPM and provides an airflow of 187 CFM. It features 5 blades and is often made with a robust metal construction, including an aluminum frame and metal blades, ensuring durability and stable performance. It provides reliable airflow and is commonly used for ventilation in electrical control cabinets, welding machines, and other industrial equipment requiring consistent cooling.
125FZY2-S Fan Parameters
Model: 125FZY2-S
Manufacturer: Jiulong
Type: AC Axial Fan
Dimensions: 135mm x 135mm x 32mm
Rated Voltage: 220 VAC
Frequency: 50 Hz
Rated Current: 0.34A
Power Consumption: 25 W
Speed: 2500 RPM
Airflow: 187 CFM (318 m³/h)
Noise Level: 55 dB(A)
Number of Blades: 5
Frame Material: Aluminum
Blade Material: Metal
Termination: 2-Wire Leads
Application: Electrical control cabinets, welding machines, industrial machinery, ventilation systems, cooling of power supplies.
