Description

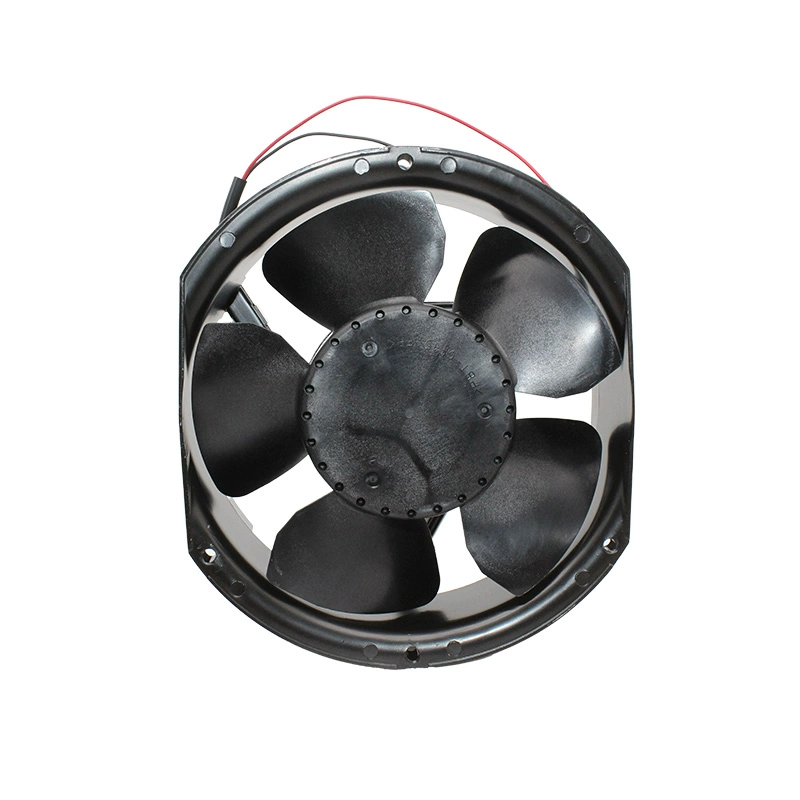

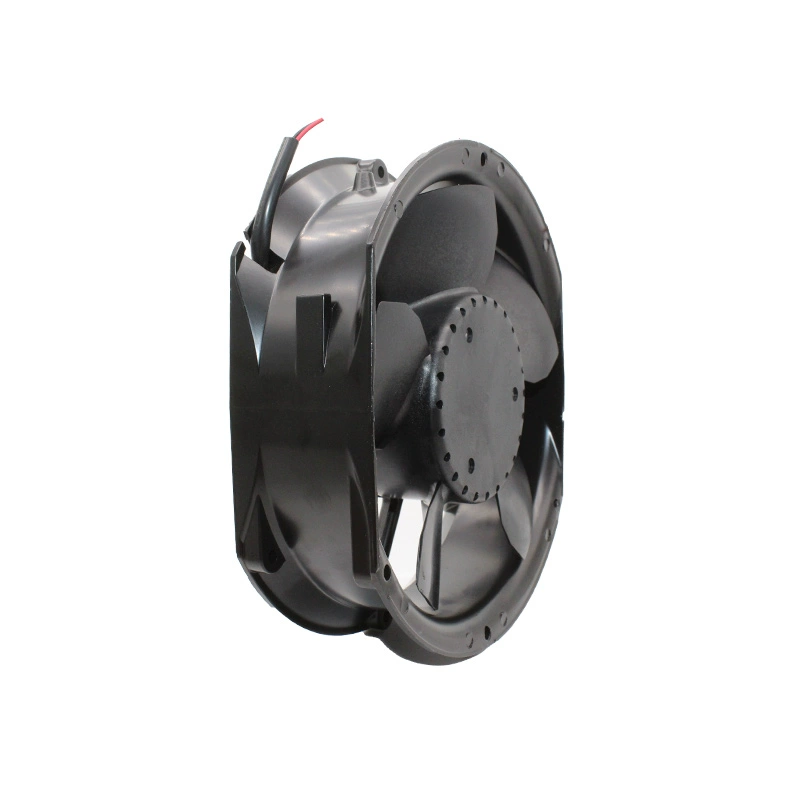

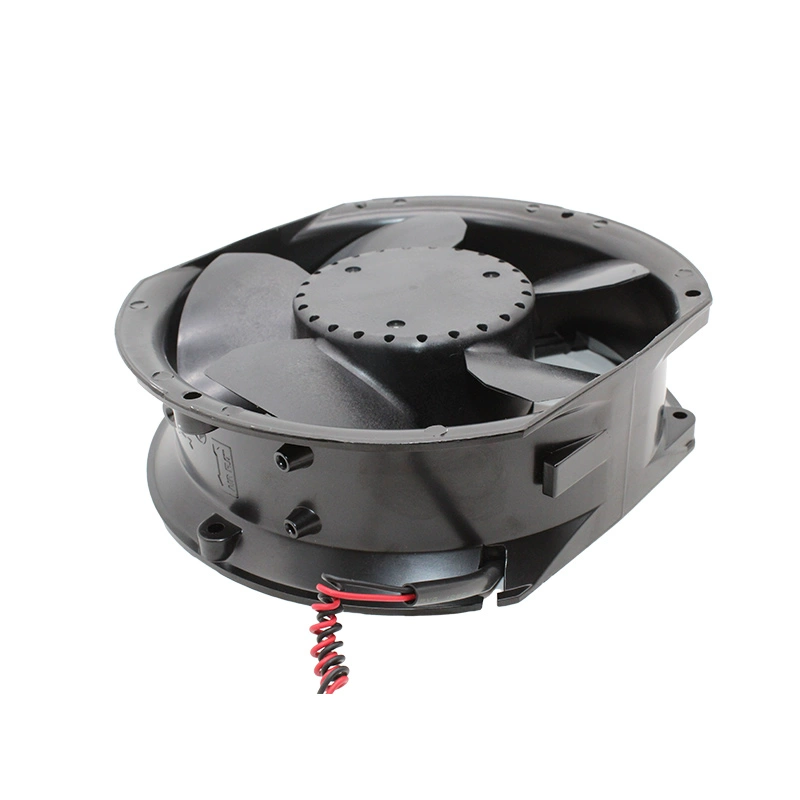

The NMB 15050PA-24Q-FC-C1 is a high-performance 24V DC axial cooling fan from NMB Technologies Corporation. Measuring 150mm x 150mm x 50mm, this fan is designed for robust thermal management in demanding applications. Operating at a rated current of 1.25A (30W), it achieves a high speed of 3600 RPM, delivering a substantial airflow of 240 CFM and a strong static pressure of 0.61 inch-H2O. Equipped with durable ball bearings, it boasts an extended operational life of 100,000 hours at 25°C. With its 2-wire lead connector and a noise level of 60 dBA, this fan is a powerful solution for cooling servers, power supplies, industrial equipment, and other systems requiring significant air movement through restrictive environments.
Model Number: 15050PA-24Q-FC-C1
Manufacturer: NMB Technologies Corporation
Type: DC Axial Cooling Fan
Dimensions: 150mm x 150mm x 50mm
Rated Voltage: 24V DC
Rated Current: 1.25A
Rated Power: 30W
Speed: 3600 RPM
Airflow: 240 CFM / 6.8 m³/min
Static Pressure: 0.61 inch-H2O / 152 Pa
Noise Level: 60 dBA
Connector: 2-Wire Leads
Bearing Type: Ball Bearing
Life Expectancy: 100,000 hours at 25°C
Operating Temperature: -10°C to 70°C
Frame Material: Plastic
Impeller Material: Plastic
Features: Auto Restart, Polarity Protection
Other Name:5920PL-05W-B70
