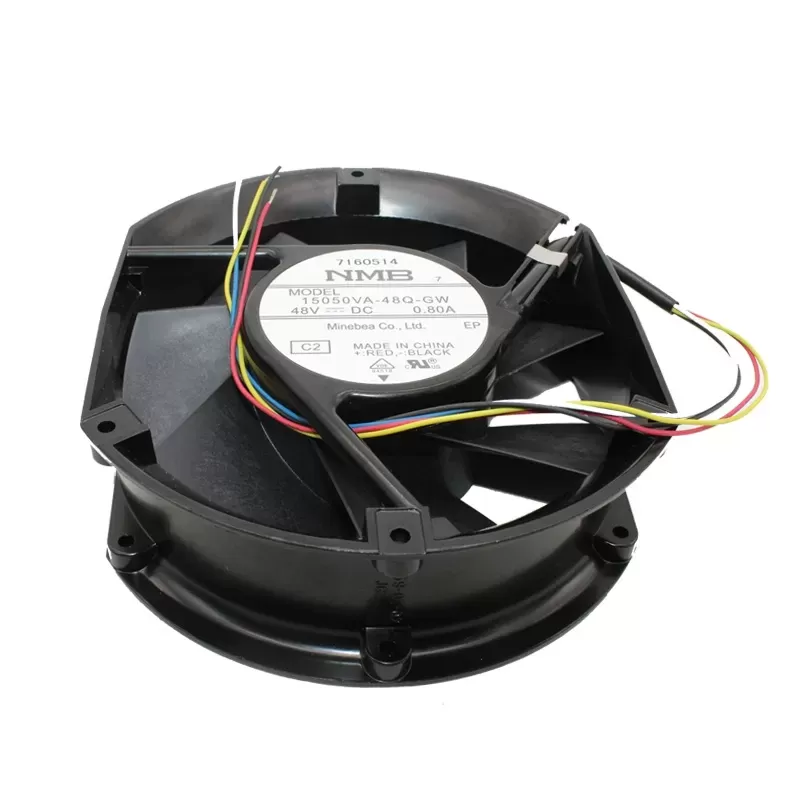

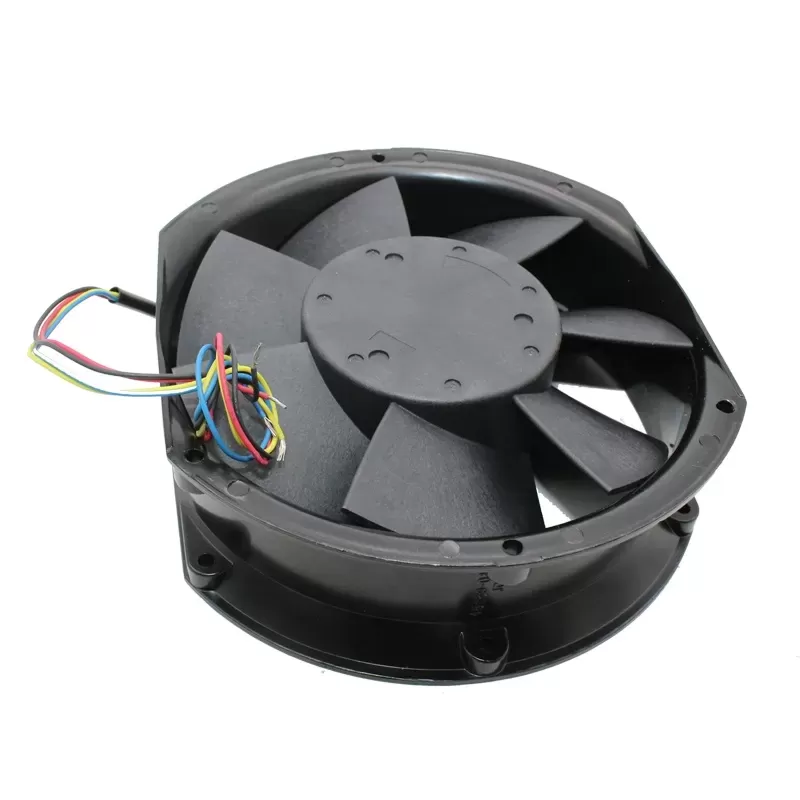

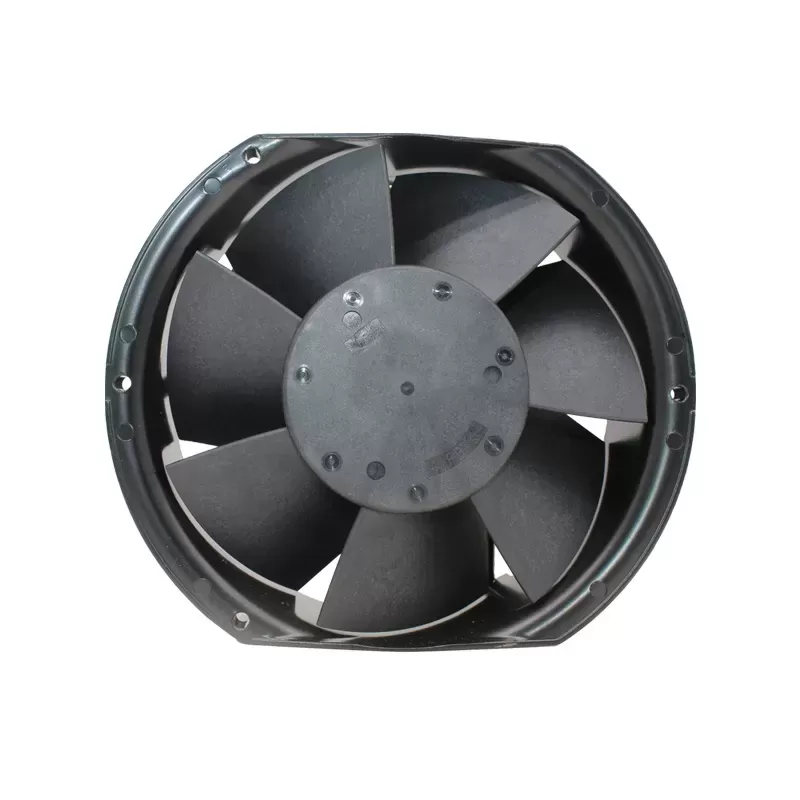

15050VA-48Q-GW-C2 NMB 48V 0.80A DC axial fan

Description

The NMB 15050VA-48Q-GW-C2 is a powerful DC Axial Cooling Fan from NMB Technologies, designed for robust and high-performance thermal management. Operating on 48V DC power, it draws 0.80A of current, resulting in 38.4W of power consumption. With dimensions of 172.7mm x 150mm x 50.8mm, this fan is well-suited for cooling demanding applications in servers, communication equipment, and industrial systems where significant airflow is required. It rotates at a high speed of 4000 RPM, delivering an impressive airflow of 300 CFM and generating substantial static pressure at 1.07 inch-H2O, making it effective for moving air through restrictive pathways. With a noise level of 64 dBA, it provides powerful cooling. Equipped with 4-wire leads, it features PWM control for precise speed adjustment and a speed sensor (tachometer) for monitoring. Utilizing durable ball bearings, the fan boasts a long life expectancy of 100,000 hours at 25°C. It’s designed to operate reliably within a temperature range of -10°C to 70°C and includes auto restart and polarity protection for dependable performance.
Model Number: 15050VA-48Q-GW-C2
Manufacturer: NMB Technologies
Type: DC Axial Cooling Fan
Rated Voltage: 48V DC
Operating Voltage Range: 38V to 52.8V DC
Rated Current: 0.80A
Rated Power: 38.4W
Speed: 4000 RPM
Airflow: 300 CFM
Static Pressure: 1.07 inch-H2O
Noise Level: 64 dBA
Dimensions: 172.7mm (L) x 150mm (H) x 50.8mm (W)
Connector: 4-Wire Leads
Bearing Type: Ball Bearing
Life Expectancy: 100,000 hours at 25°C
Operating Temperature: -10°C to 70°C
Frame Material: Aluminum
Impeller Material: Plastic
Features: Auto Restart, Speed Sensor (Tachometer), PWM Control, Polarity Protection
