Description
Model Number: 150FLJ7-22
Fan Type: AC Centrifugal Blower Fan
Rated Voltage: 220 VAC
Frequency: 50 Hz
Phase: Single-phase
Rated Current: 1.52 A
Input Power: 330 W
Rotational Speed RPM: 2800 RPM
Air Volume: 11 m³/min
Static Pressure: 450 Pa
Noise Level: 75 dB
Weight: 6 kg
Bearing Type: Ball Bearing
Operating Temperature Range: -40°C to +55°C

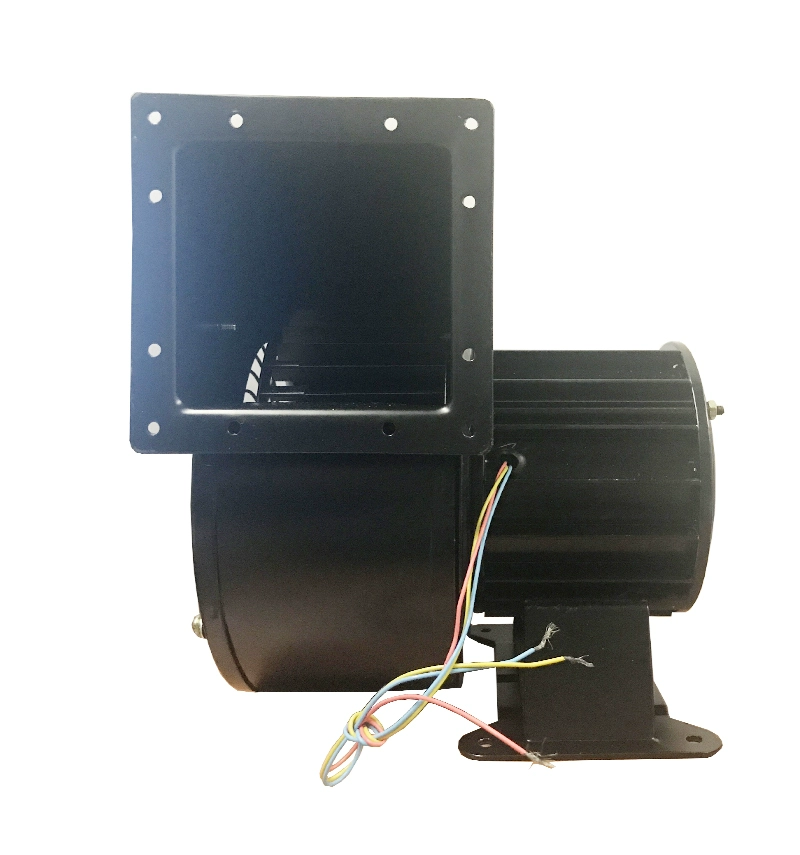

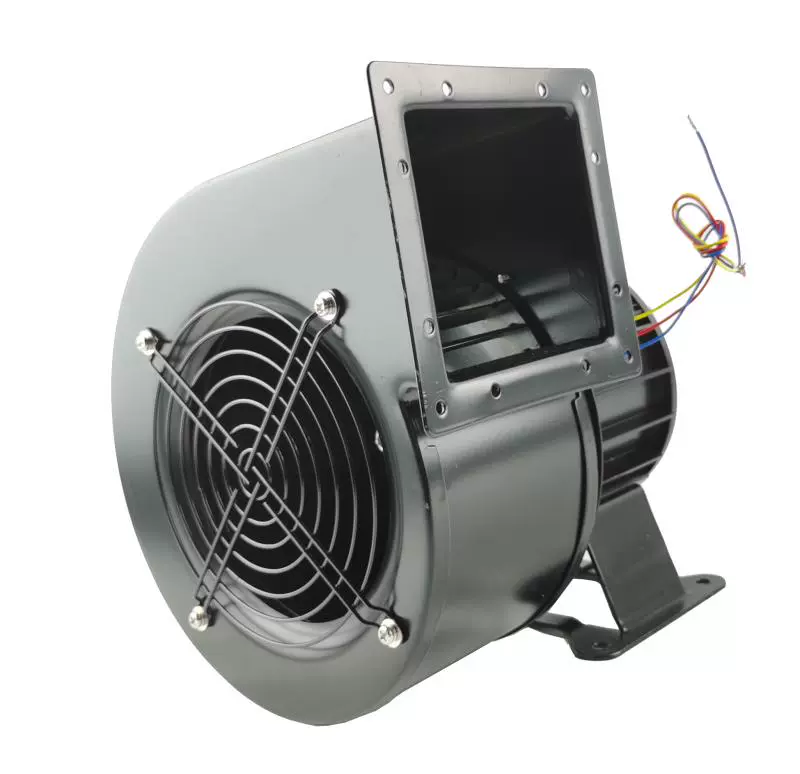

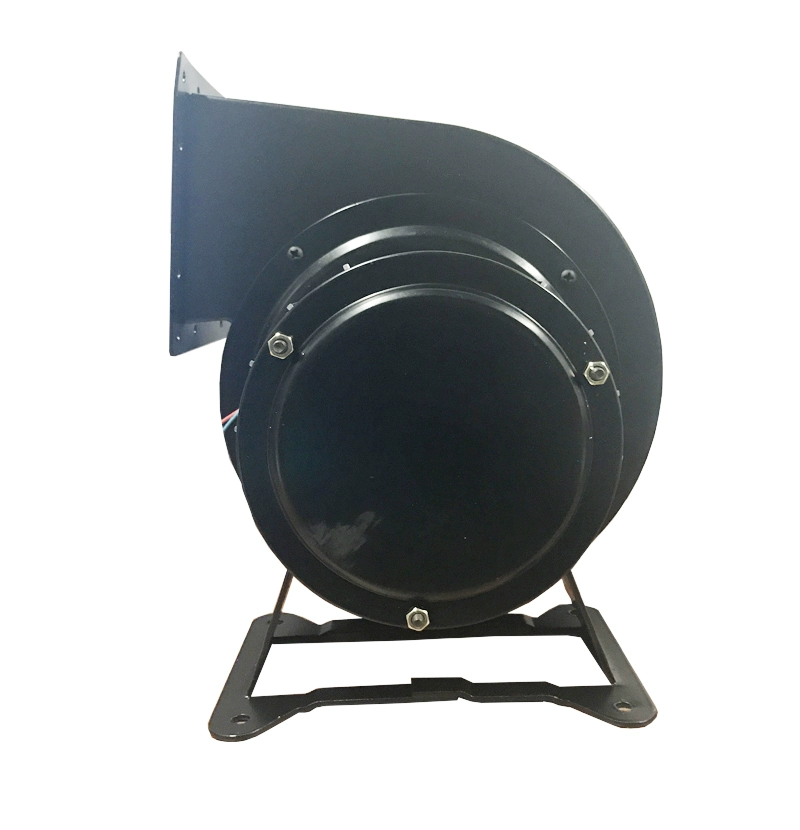

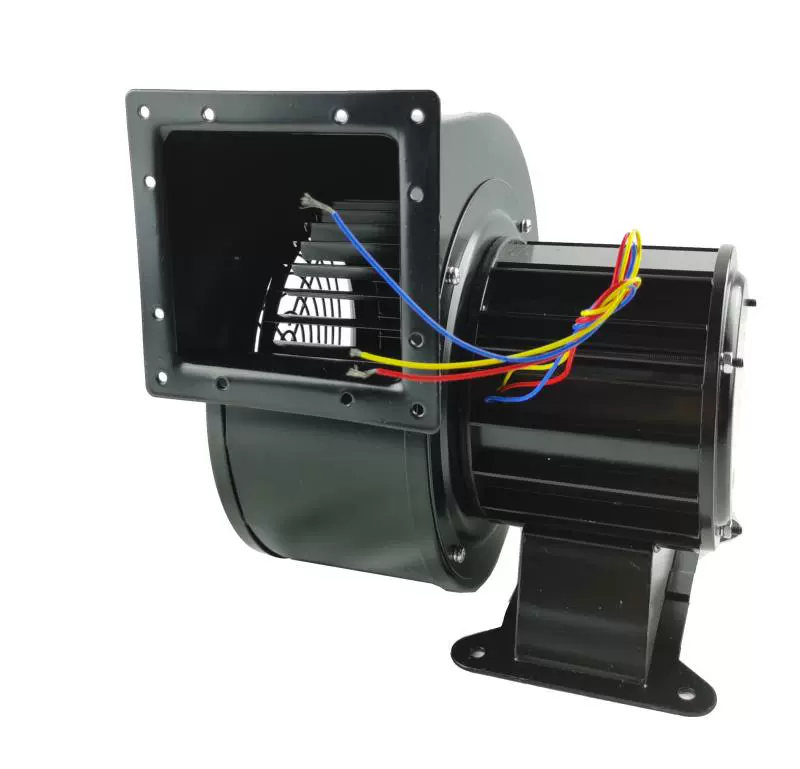

Brand new Bedel 150FLJ7-22 220V centrifugal fan capacitor running asynchronous motor blower
The 150FLJ7-22 is a powerful AC centrifugal blower fan designed for industrial cooling and air movement applications. Operating on 220 VAC single-phase power at 50Hz, it consumes 330W of power. This fan achieves a high rotational speed of 2800 RPM, delivering a substantial air volume of 11 m³/min and a strong static pressure of 450 Pa, making it suitable for pushing air through restrictive pathways. With a noise level of 75 dB and a weight of 6 kg, it’s a robust solution for applications like industrial drying, furnace support, and general high-pressure ventilation.
