Description

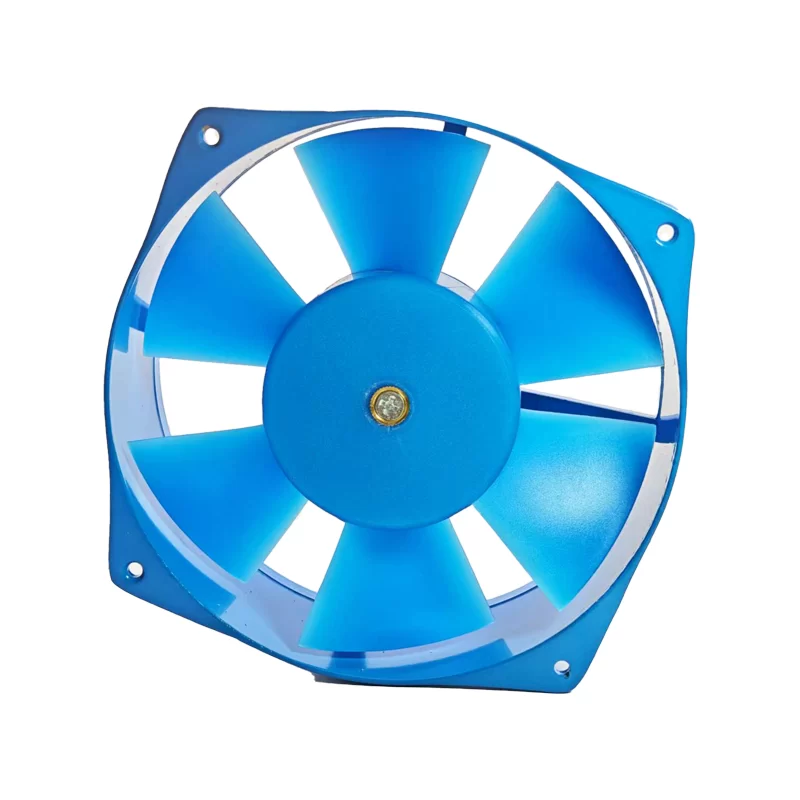

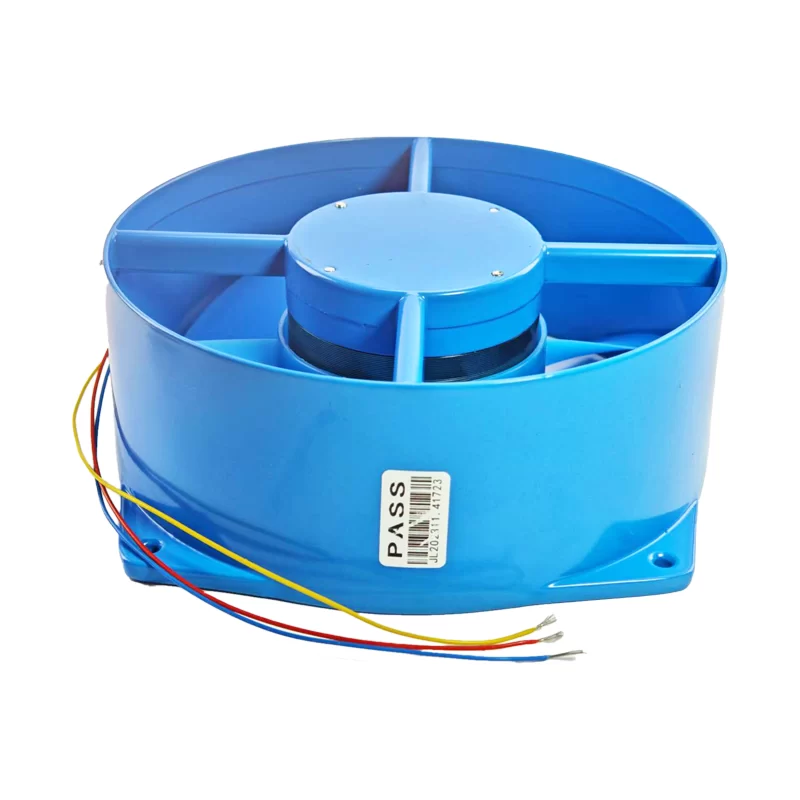

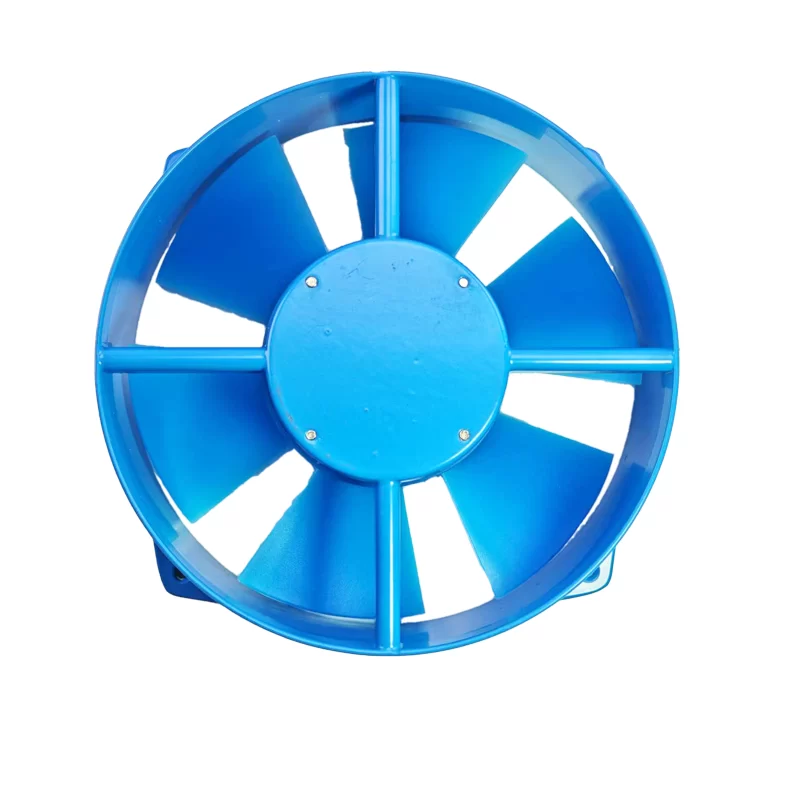

The Jiulong 150FZY4-D is an AC axial flow fan measuring 150x160x60mm. It operates on 380 VAC at 50 Hz and is a three-phase fan. Power consumption is 30 W, with a rated current of 0.12 A. This fan achieves a speed of 2800 RPM, providing an airflow of 6.12 m³/min. The noise level is 65 dB(A). It is equipped with ball bearings for durable operation. This series features small dimensions, low noise, low vibration, and reliable running, making it suitable for industrial cooling and ventilation, such as in welding machines, cabinets, and electronic equipment. The wind direction can be changed by exchanging two wires.
150FZY4-D Fan Parameters
Model: 150FZY4-D
Manufacturer: Jiulong
Type: AC Axial Flow Fan
Dimensions: 150x160x60 mm
Rated Voltage: 380 VAC
Frequency: 50 Hz
Phase: Three-phase
Power Consumption: 30 W
Rated Current: 0.12 A
Speed: 2800 RPM
Airflow: 6.12 m³/min
Noise Level: 65 dB(A)
Bearing Type: Ball Bearing
Protection Degree: IP54
Application: Industrial cooling, ventilation for welding machines, cabinets, electronic equipment.
