Description
Model: 150FZY9-D/380V
Name: Axial fan/exhaust fan
Size: 1 60*160*60mm
Working voltage: AC380V-400V
Working current: 0.08A
Working frequency: 50/60Hz
Product power: 30W
Fan speed: 2600r/min
Product air volume: 330m/h
Maximum static pressure: 0.45 Inch-H20
Noise: 55 dB(A)
Weight: 900g
Frame material: die-cast aluminum alloy
Fan blades: plastic flame-retardant fan blades
Lifespan: 50000H
Working temperature: 6-20C 80C

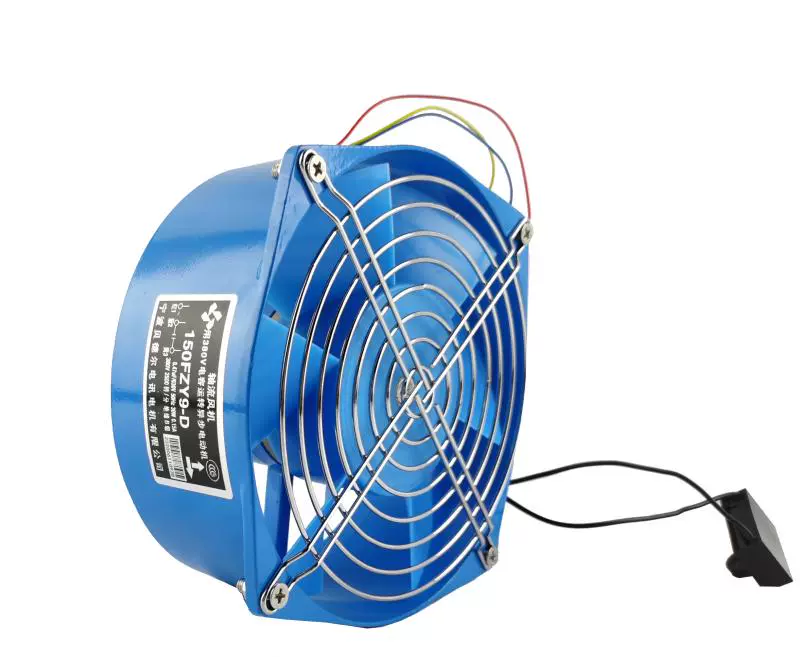

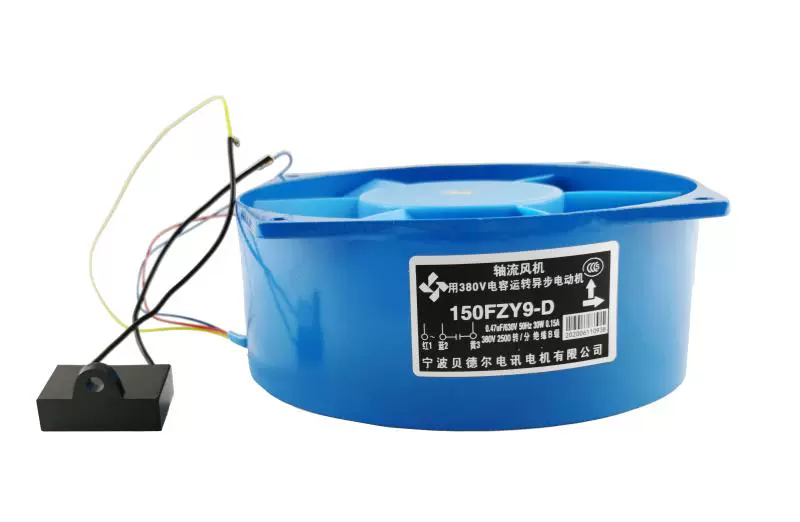

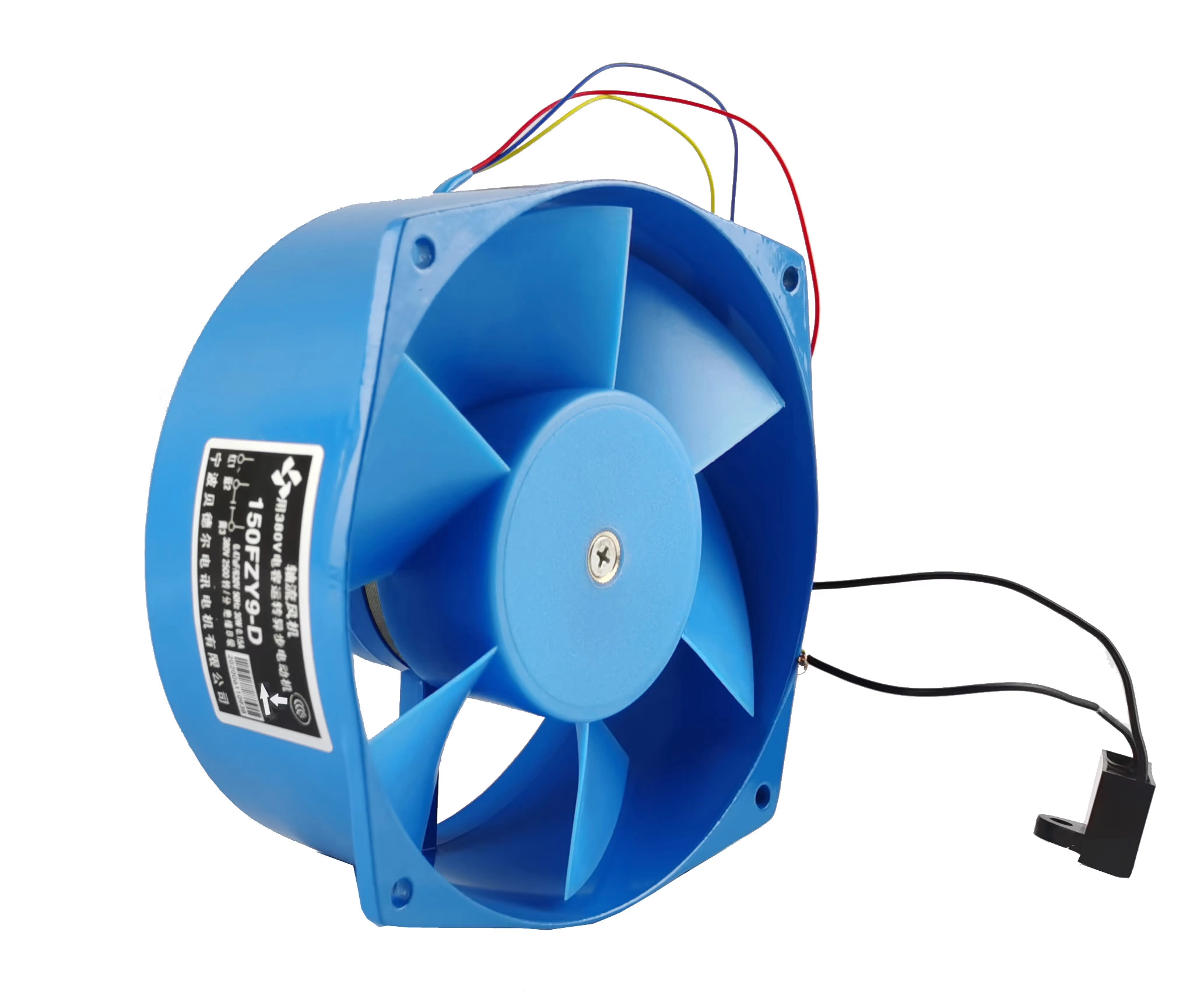

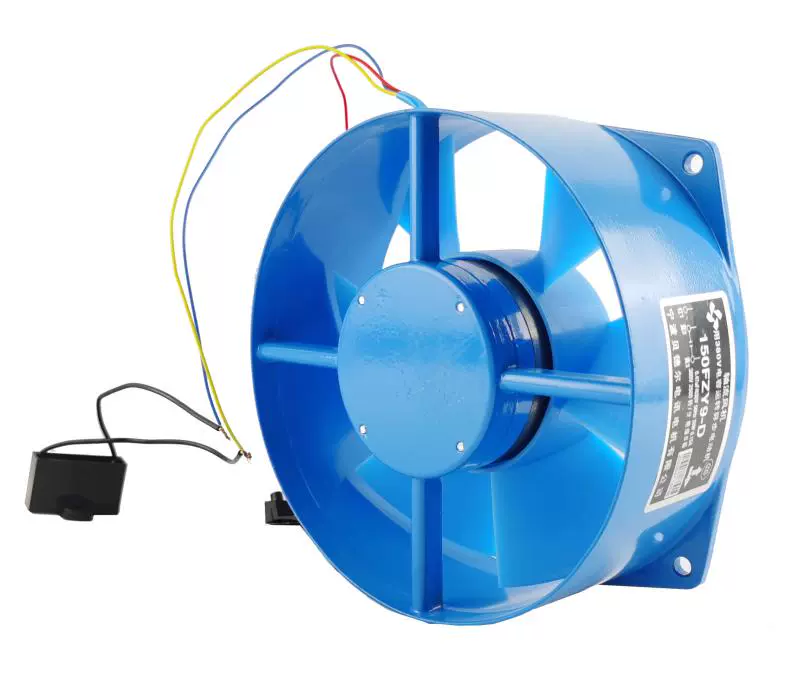

【Original】Beder 150FZY9-D 380V single-phase axial flow fan with capacitance and welding machine fan
1. Basic parameters and design features
Voltage specification: Supports 380V single-phase AC power supply, suitable for industrial power environment
Structural design: Adopts black thin body, compact size, suitable for internal installation of welding machines with limited space
Capacitor configuration: Built-in starting capacitor to ensure stable operation of single-phase motor (specific capacitor parameters need to be consulted with the supplier)
2. Core application scenarios
Welding machine heat dissipation: Designed for inverter modules and single-tube heat dissipation of welding machines of brands such as Ruiling, which can quickly discharge equipment heat
Industrial compatibility: Applicable to industrial equipment with 380V voltage, such as distribution cabinets, inverters and other auxiliary heat dissipation scenarios
