Description

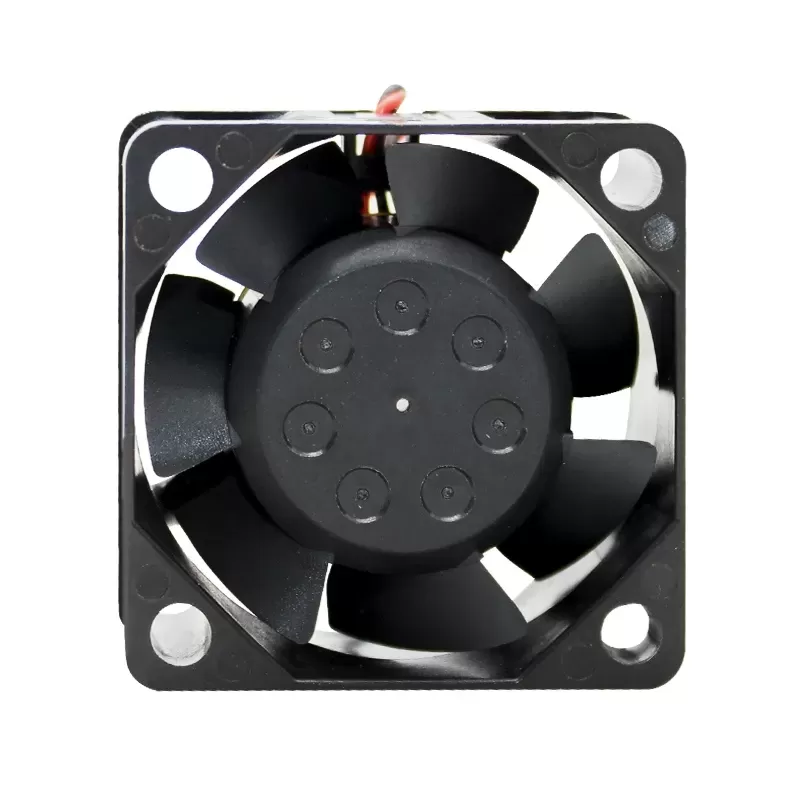

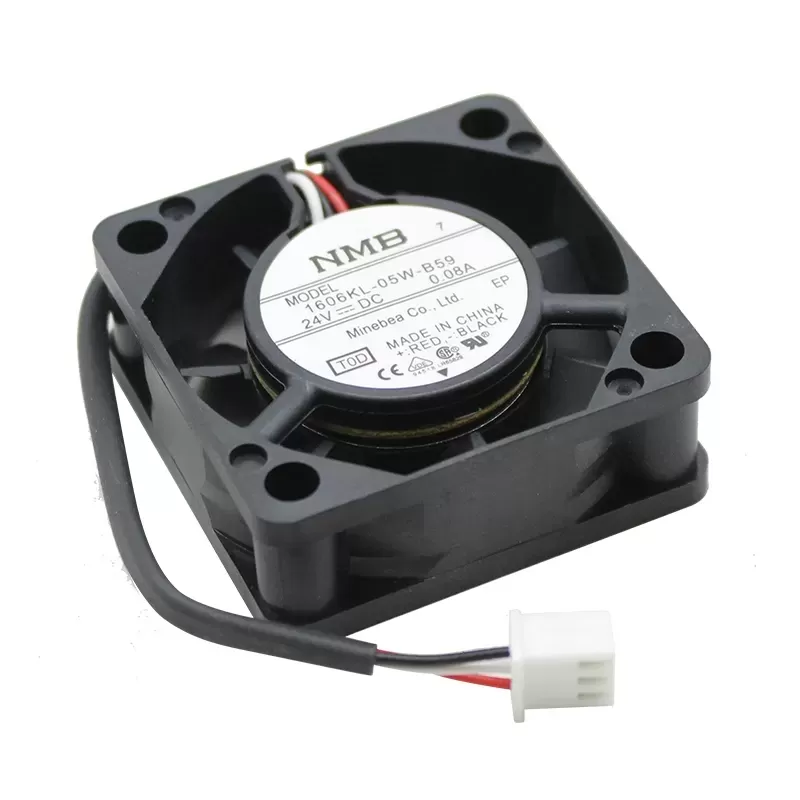

The NMB 1606KL-05W-B59-T0D, now specified with a 0.08A current, represents a more power-efficient variant of this 24V DC axial cooling fan from NMB Technologies. Measuring 40x40x15mm, this fan is designed for compact electronic systems where lower power consumption and quieter operation are prioritized. It operates at 1.92W, achieving a speed of 4500 RPM. This generates a modest 5.4 CFM of airflow and a static pressure of 0.11 inch-H2O, suitable for gentle cooling. Equipped with durable ball bearings, it offers a reliable life expectancy of 70,000 hours at 25°C. Its 3-wire configuration includes a speed sensor for monitoring fan status, ensuring reliable performance at a significantly lower noise level of 23.0 dBA.
Model Number: 1606KL-05W-B59-T0D
Manufacturer: NMB Technologies Corporation
Type: DC Axial Cooling Fan
Rated Voltage: 24V DC
Operating Voltage Range: 12V to 27.6V DC
Rated Current: 0.08A
Rated Power: 1.92W
Speed: 4500 RPM
Airflow: 5.4 CFM / 0.15 m³/min
Static Pressure: 0.11 inch-H2O / 27.3 Pa
Noise Level: 23.0 dBA
Dimensions: 40mm x 40mm x 15mm
Connector: 3-Wire Leads
Bearing Type: Ball Bearing
Life Expectancy: 70,000 hours at 25°C
Operating Temperature: -10°C to 70°C
Frame Material: Plastic
Impeller Material: Plastic
Features: Auto Restart, Speed Sensor, Polarity Protection
