Description

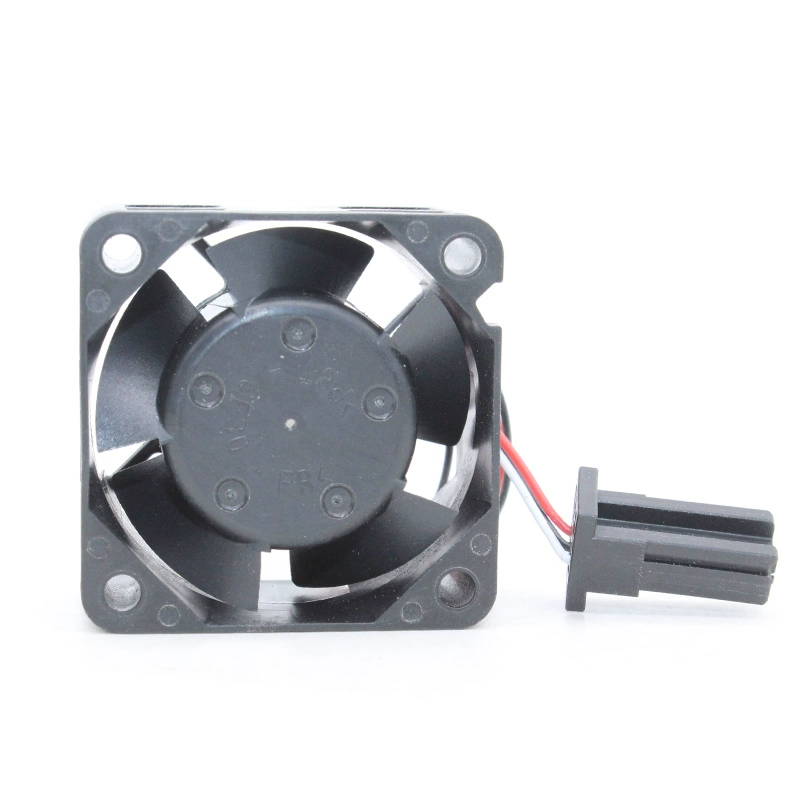

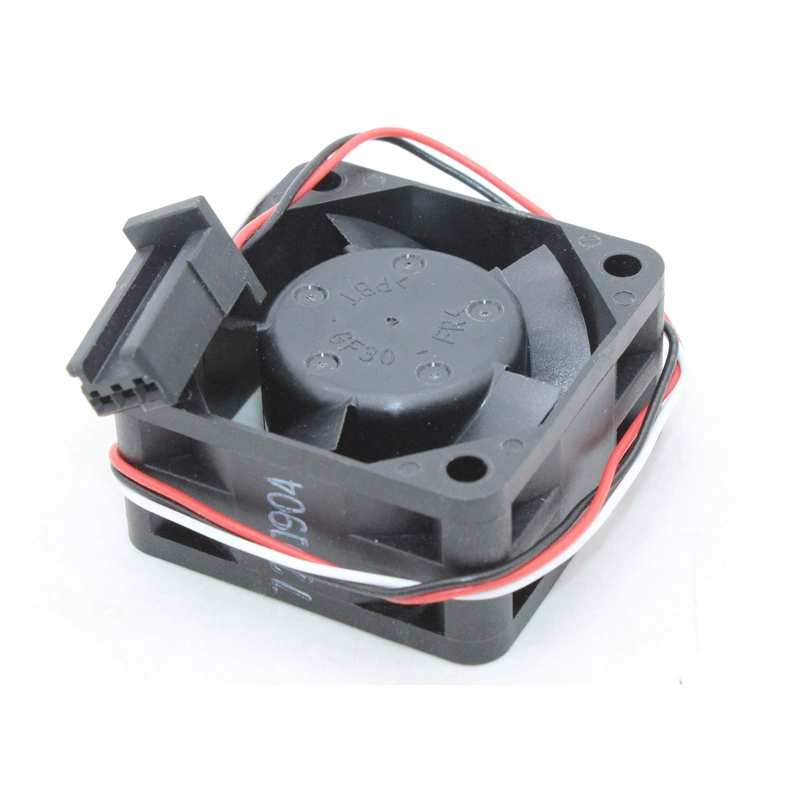

The NMB 1608KL-05W-B39-LQ3 is a compact 24V DC axial cooling fan from NMB Technologies Corporation, measuring 40mm x 40mm x 20mm. Operating at a rated current of 0.07A (1.68W), this fan is designed to provide efficient cooling in confined spaces, often found in industrial control systems and specialized electronic equipment. It achieves a rotational speed of 6500 RPM, delivering 7.4 CFM of airflow and a static pressure of 0.17 inch-H2O, while maintaining a relatively low noise level of 25.5 dBA. Equipped with durable dual ball bearings, it ensures a long operational life of 50,000 hours at 25°C. The fan utilizes 3-wire leads, providing both a locked rotor sensor for fault detection and a speed sensor for monitoring its operational status, making it a reliable component for applications requiring precise thermal management and diagnostic capabilities.
Model Number: 1608KL-05W-B39-LQ3
Manufacturer: NMB Technologies Corporation
Type: DC Axial Cooling Fan
Dimensions: 40mm x 40mm x 20mm
Rated Voltage: 24V DC
Rated Current: 0.07A
Rated Power: 1.68W
Speed: 6500 RPM
Airflow: 7.4 CFM / 0.21 m³/min
Static Pressure: 0.17 inch-H2O / 42.2 Pa
Noise Level: 25.5 dBA
Connector: 3-Wire Leads
Bearing Type: Dual Ball Bearing
Life Expectancy: 50,000 hours at 25°C
Operating Temperature: -10°C to 70°C
Frame Material: Plastic
Impeller Material: Plastic
Features: Locked Rotor Sensor, Speed Sensor
