Description

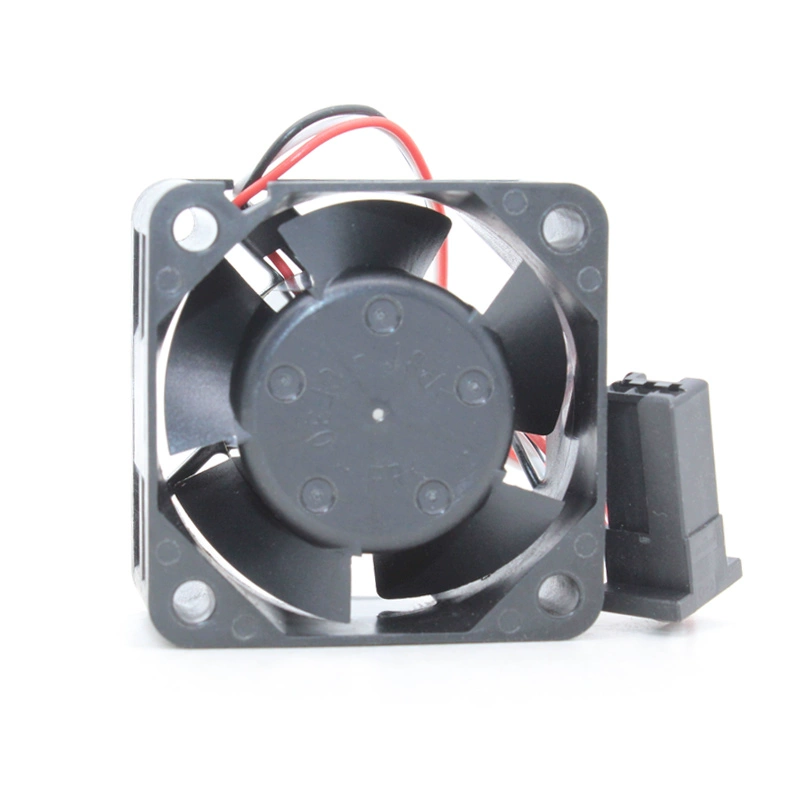

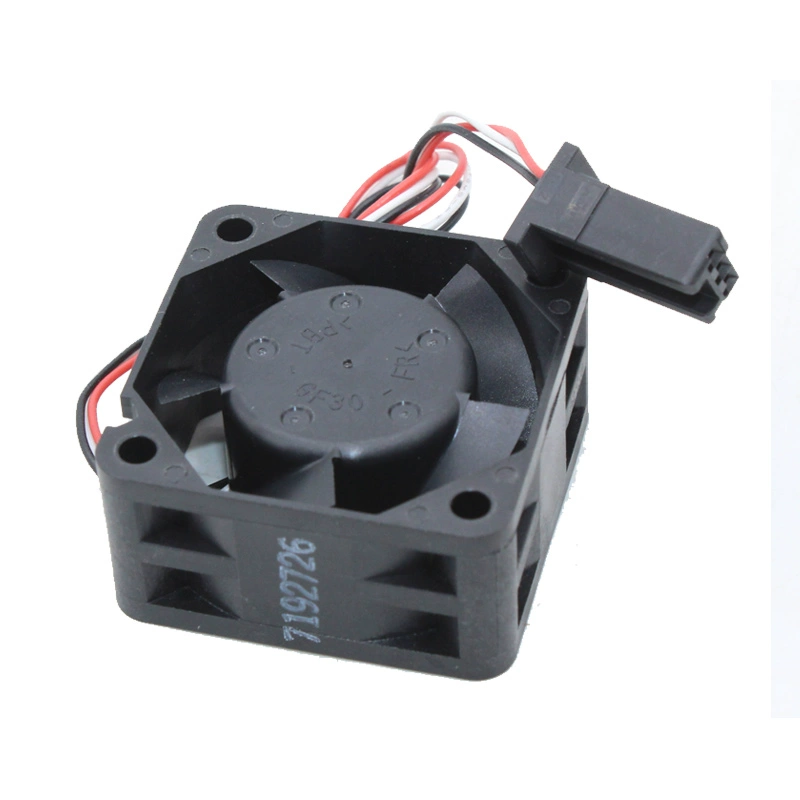

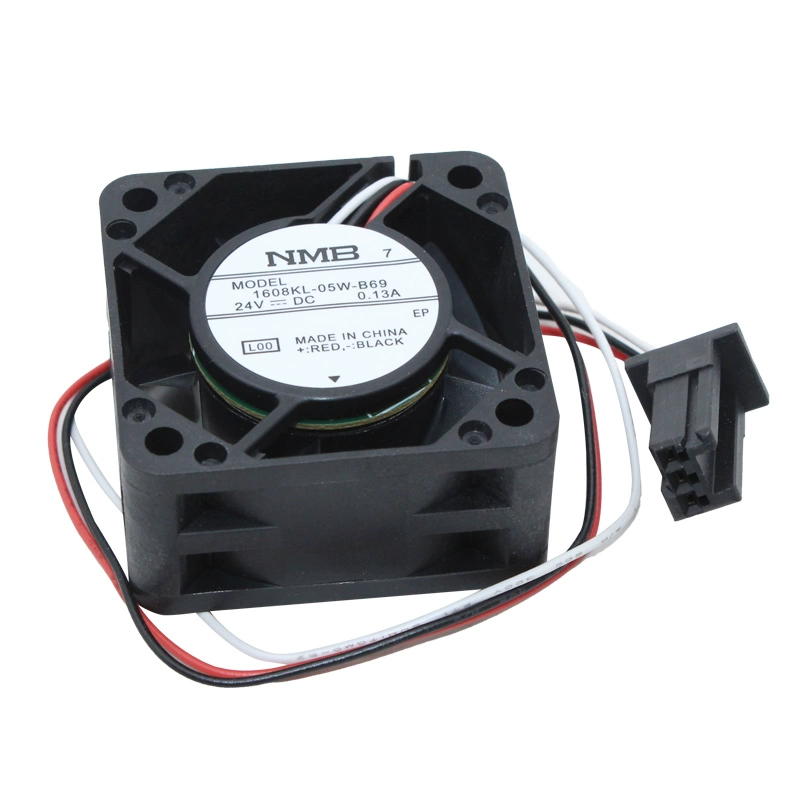

The NMB 1608KL-05W-B69-L00 is a high-performance 24V DC axial cooling fan from NMB Technologies Corporation, measuring 40mm x 40mm x 20mm. Operating at a rated current of 0.13A (3.12W), this fan is designed for efficient cooling in compact electronic assemblies. It achieves a high speed of 9500 RPM, delivering 10.9 CFM of airflow and a static pressure of 0.378 inch-H2O, with a noise level of 36 dBA. Equipped with durable ball bearings, it ensures a long operational life of 60,000 hours at 25°C. The fan utilizes 3-wire leads, providing a locked rotor sensor for status monitoring, along with auto-restart and polarity protection, making it a reliable solution for cooling applications requiring strong airflow in limited spaces, such as in server components or industrial controls.
Model Number: 1608KL-05W-B69-L00
Manufacturer: NMB Technologies Corporation
Type: DC Axial Cooling Fan
Dimensions: 40mm x 40mm x 20mm
Rated Voltage: 24V DC
Rated Current: 0.13A
Rated Power: 3.12W
Speed: 9500 RPM
Airflow: 10.9 CFM / 0.31 m³/min
Static Pressure: 0.378 inch-H2O / 94.2 Pa
Noise Level: 36 dBA
Connector: 3-Wire Leads
Bearing Type: Ball Bearing
Life Expectancy: 60,000 hours at 25°C
Operating Temperature: -10°C to 70°C
Frame Material: Plastic
Impeller Material: Plastic
Features: Locked Rotor Sensor, Auto Restart, Polarity Protection
