Description

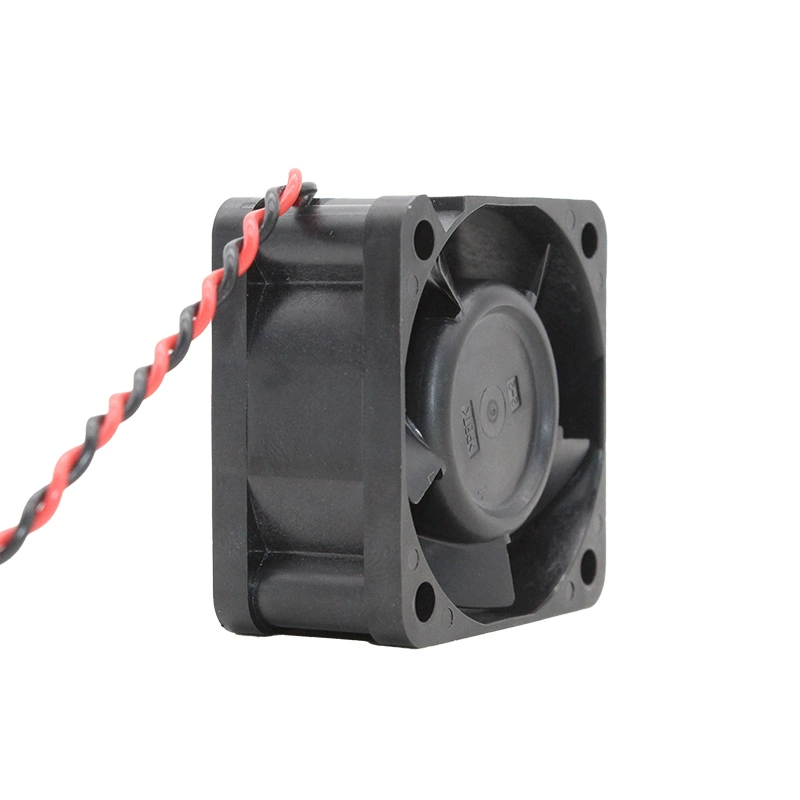

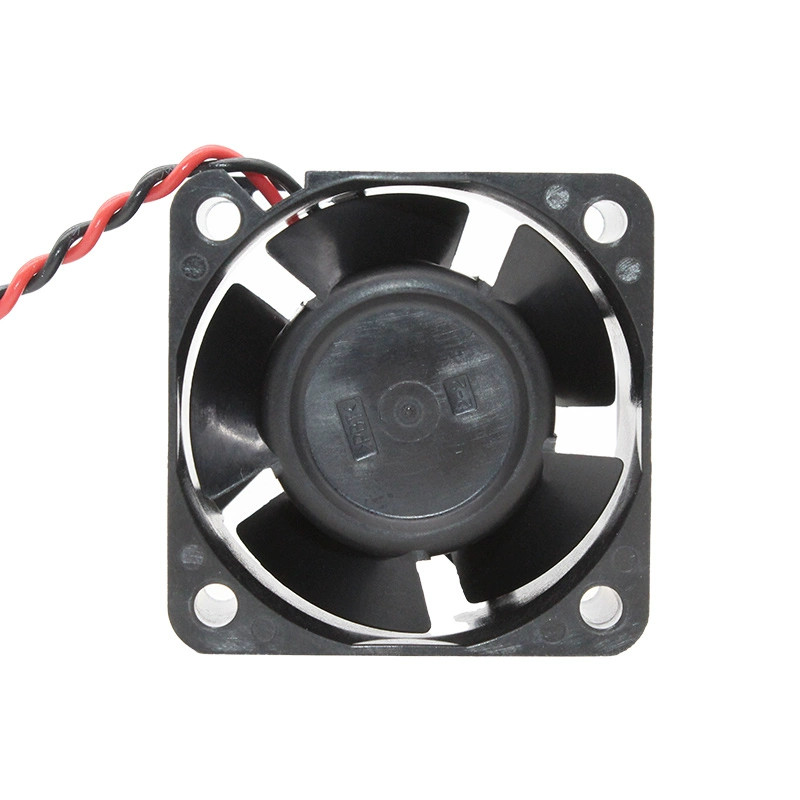

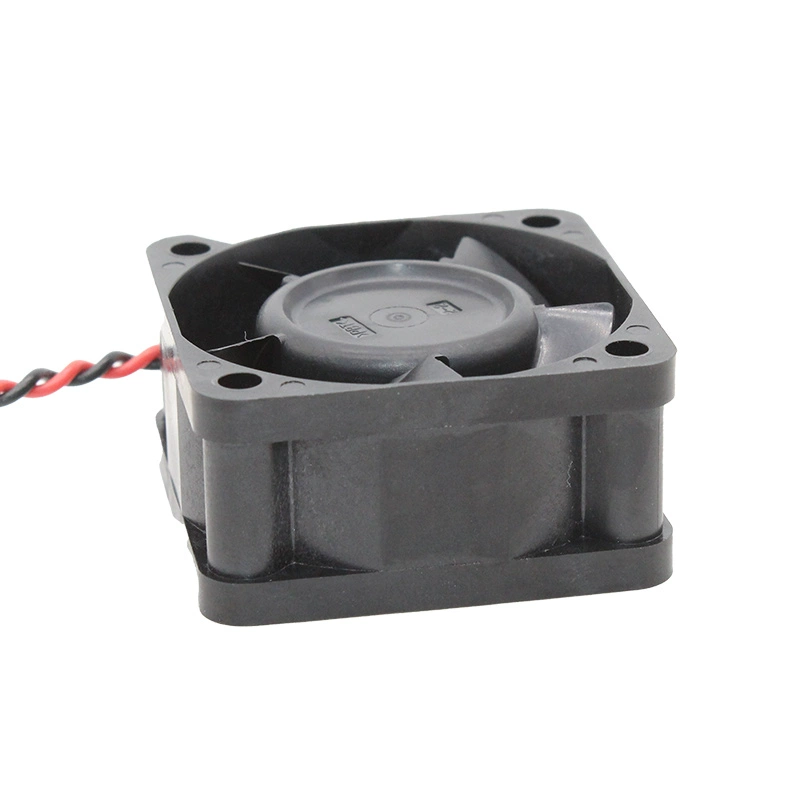

1608VL-05W-B40 NMB 4020 fan 24V 0.07A 04020VL Inverter chassis fan
Model Number: 1608VL-05W-B40
Manufacturer: NMB Technologies Corporation
Series: 1608VL Series
Fan Type: DC Brushless Axial Fan
Dimensions L x H x W: 40 mm x 40 mm x 20 mm
Rated Voltage: 24 VDC
Operating Voltage Range: 14 VDC to 26.4 VDC
Rated Current: 0.07 A
Input Power: 1.2 W
Wiring: 2 Wire Leads
Bearing Type: Ball Bearing
Rotational Speed RPM: 7500 RPM
Maximum Airflow: 8.8 CFM
Maximum Static Pressure: 0.24 in H2O
Noise Level: 29 dB
Frame Material: Plastic
Impeller Blade Material: Plastic
Protection Functions: Auto Restart, Polarity Protection
Operating Temperature Range: -10°C to +70°C
Expected Life L10: 100,000 Hours at 25°C
Mass: 40 g
The NMB 1608VL-05W-B40 is a compact and efficient 40x40x20mm DC axial fan from NMB’s VL Series. Operating on 24VDC, it consumes a low 1.2W of power with a current draw of just 0.07A. This fan features durable dual ball bearings, contributing to a very long expected lifespan of 100,000 hours at 25°C. It delivers 8.8 CFM of airflow at a high speed of 7500 RPM, generating a notable static pressure suitable for small enclosures. With a noise level of 29 dB, it operates relatively quietly for its performance. Key features include auto restart and polarity protection, ensuring reliable operation. The 1608VL-05W-B40 is an ideal choice for cooling various electronic components, small industrial machines, communication equipment, and other devices where space is limited, and efficient, long-lasting thermal management is required.
