Description

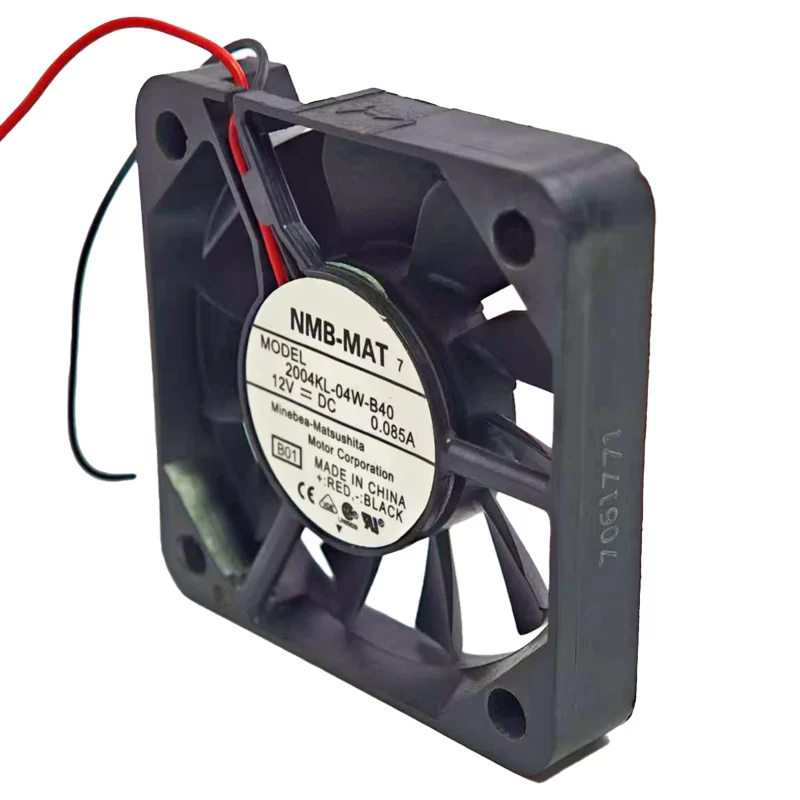

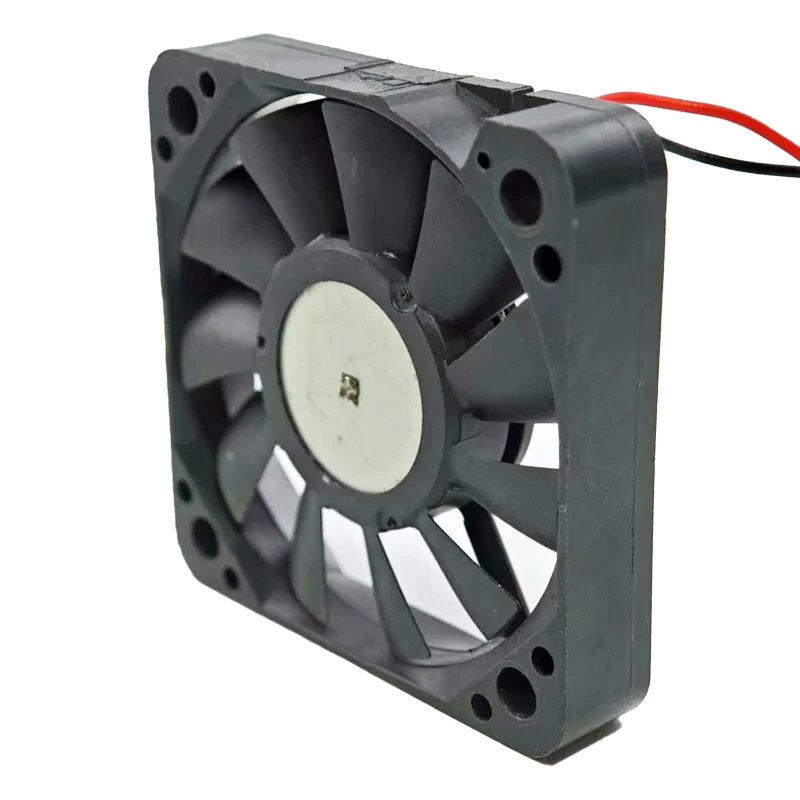

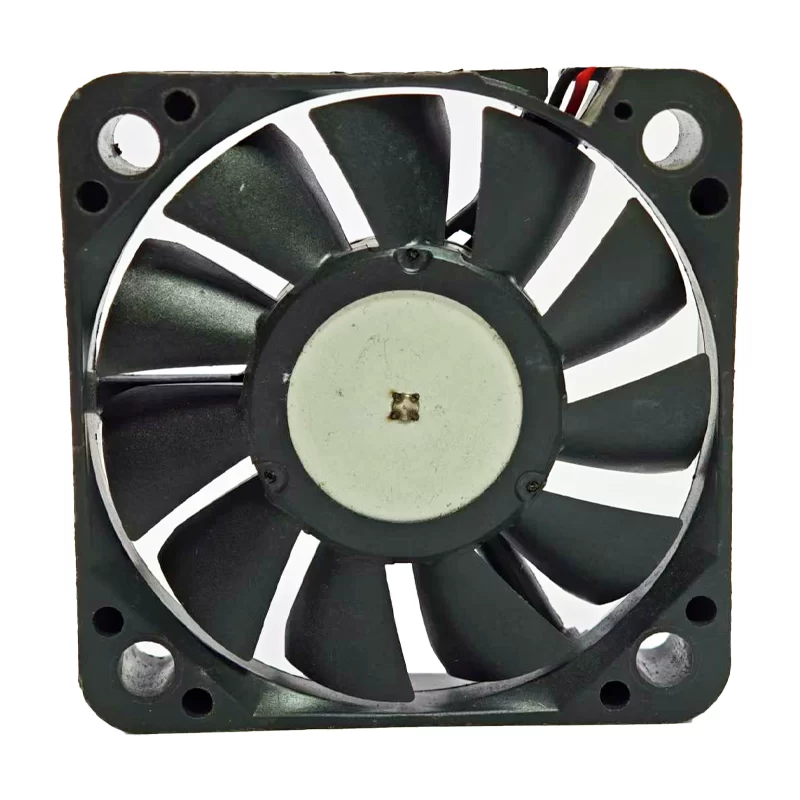

The NMB 2004KL-04W-B40 is a compact and efficient 12V DC axial fan, measuring 50mm x 50mm x 10mm, manufactured by NMB Technologies Corporation. This fan is designed for reliable cooling in space-constrained electronic devices. It features durable ball bearings, contributing to a long operational lifespan of 60,000 hours at 25°C. Drawing 0.085A of current, it consumes 1.02W of power. This fan operates at 4500 RPM, delivering 8.1 CFM of airflow and generating 0.23 inches of H2O static pressure, all while maintaining a moderate 30 dBA noise level. Equipped with 2-wire leads, the NMB 2004KL-04W-B40 is an excellent choice for cooling components in 3D printers, mini PCs, embedded systems, networking equipment, and other compact electronics that require effective and quiet thermal management.
NMB brand new original 2004KL-04W-B40 12V 0.085A 5010 5CM dual ball cooling fan
Model: 2004KL-04W-B40
Manufacturer: NMB Technologies Corporation
Type: DC Axial Fan
Dimensions: 50mm x 50mm x 10mm
Nominal Voltage: 12V DC
Operating Voltage Range: 6V to 13.8V DC
Current: 0.085A
Power Consumption: 1.02W
Speed: 4500 RPM
Airflow: 8.1 CFM (0.23 m³/min)
Static Pressure: 0.23 In H2O (57.5 Pa)
Noise Level: 30 dBA
Bearing Type: Ball Bearing
Life Expectancy: 60,000 Hours (at 25°C, L10)
Termination: 2-wire leads
Frame Material: Plastic
Impeller Material: Plastic
Features: Brushless DC motor, polarity protected, auto-restart.
