Description

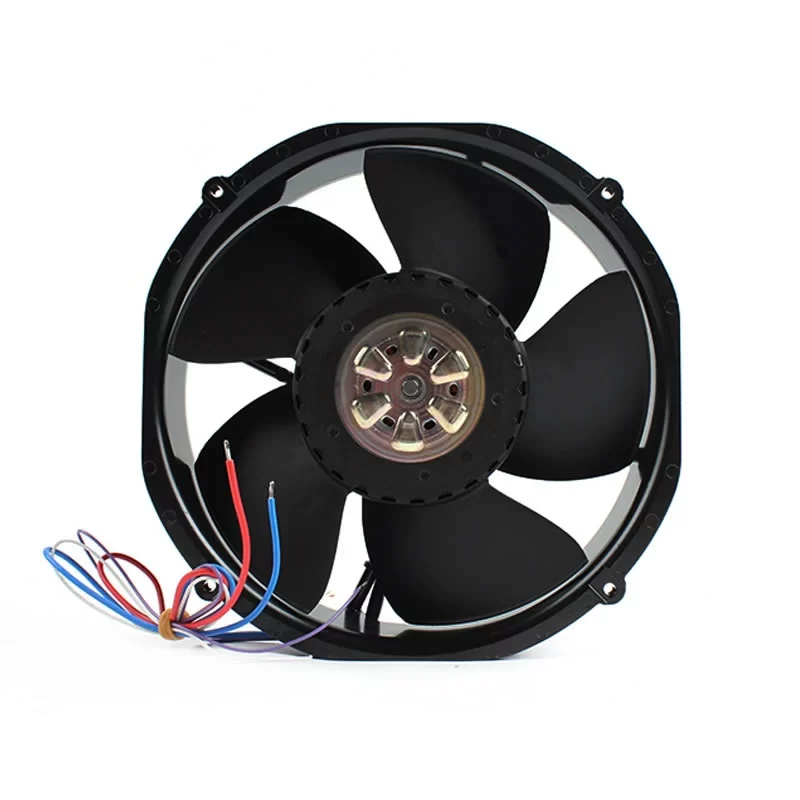

The ebmpapst 2214F/2TDHHO is a high-performance DC Axial Fan built in a 220 x 200 x 51 mm frame. Utilizing a 3-phase EC fan drive for very smooth operation and high efficiency, this fan operates on 24 V DC. It delivers a high airflow of 940 m³/h at 5000 RPM. With a service life of 85,000 hours (at 40 °C) and integrated speed signal and control input capabilities, it is essential for critical, high-density cooling in industrial and telecom systems.
2214F/2TDHHO Fan Parameters
Model: 2214 F/2TDHHO
Manufacturer: ebmpapst
Type: DC Axial Fan
Series: 2000 Series (High Performance, Electronic Commutation)
Dimensions: 220 x 200 x 51 mm
Weight: 1.0 kg
Nominal Voltage: 24 V DC
Operating Voltage Range: 16 V DC to 36 V DC
Speed: 5000 RPM (min⁻¹)
Max. Airflow (Free Air): 940 m³/h
Power Consumption (Max Load): 48 W
Rated Current (Max Load): 2.0 A
Noise Level: 66 dB(A)
Sound Power Level: 7.4 B
Protection Rating: IP20
Electrical Protection: Protected against reverse polarity and locking (Standard)
Bearing Type: Ball Bearing
Motor Design: 3-phase fan drive
Airflow Direction: Exhaust over struts
Direction of Rotation: Counterclockwise, viewed toward rotor
Termination: Leads (AWG 18, 20 or AWG 22)
Control/Signal: Speed signal and control input (AWG 22 leads included)
Housing Material: Die-cast Aluminum (with M4 grounding lug)
Impeller Material: Glass-fiber Reinforced PA Plastic
Life Expectancy (L10 at 40 °C): 85,000 h
Min. Ambient Temperature: -25 °C
Max. Ambient Temperature: 70 °C
Certifications:CE, VDE REGISTERED, EAC, cURus
Application
The ebmpapst 2214F/2TDHHO is engineered for continuous, high-performance cooling applications. It is widely used in telecommunication cabinets and base stations that rely on 24V DC power. The fan’s ability to maintain high airflow (940 m³/h) with a relatively low noise level (66 dB(A)) makes it ideal for cooling high-density electronics, large power supply units, and heat exchangers in critical industrial and IT infrastructure. The integrated speed control feature allows for dynamic thermal management and energy optimization.
