Description

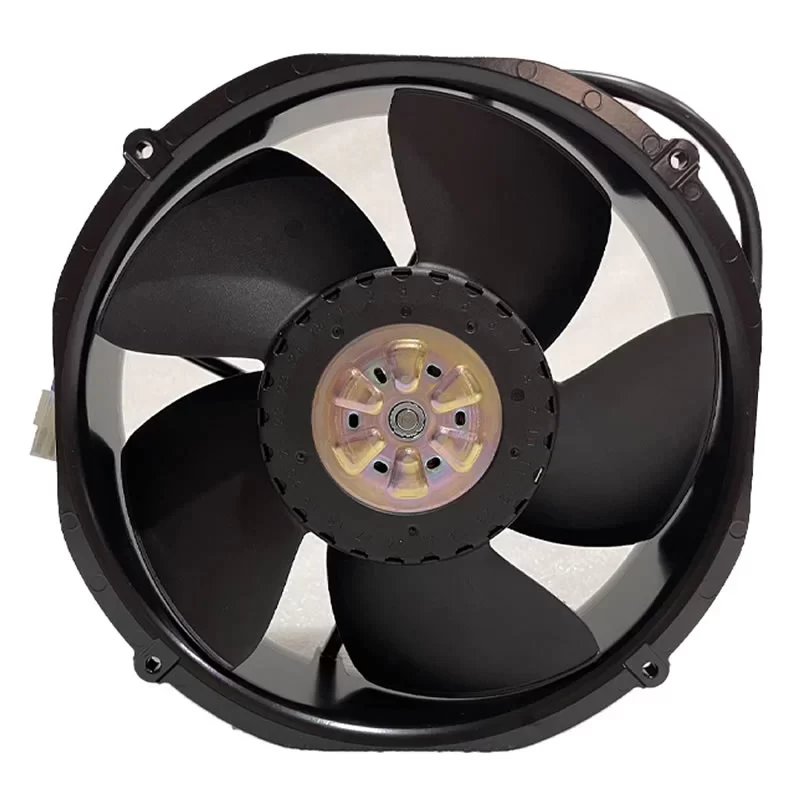

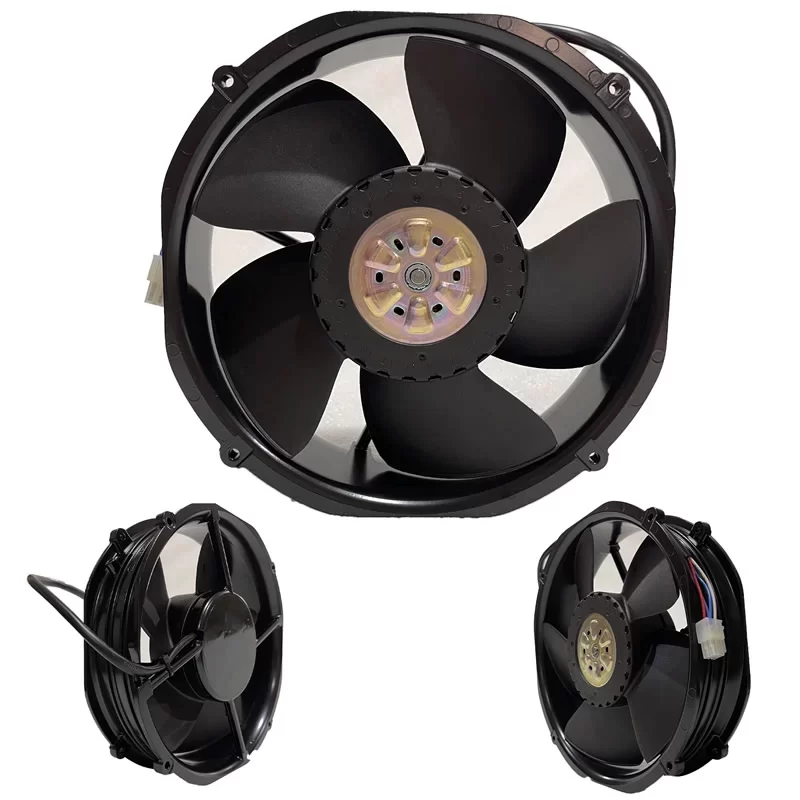

The ebmpapst 2214F/2TDHOU-754 is a high-performance DC Axial Fan with dimensions of 220×200×51 mm. This fan operates on 24 VDC with an operating range of 16 to 30 VDC, delivering a high airflow of 800 m3/h and a high static pressure of 430 Pa at a speed of 4,250 RPM. It features a metal housing, a plastic impeller with 5 blades, ball bearings, and a 4-wire termination, with a rated current of 1.45 A and multiple safety approvals (CE, EAC, UL, VDE, CSA).
2214F/2TDHOU-754 Fan Parameters
Model: 2214F/2TDHOU-754
Manufacturer: ebmpapst
Fan Type: DC Axial Fan
Dimensions: 220×200×51 mm
Nominal Voltage: 24 VDC
Nominal Voltage Range: 16 to 30 VDC
Rated Power: 36 W
Rated Current: 1.45 A
Label Current: 1.5 A
Rated Speed: 4,250 RPM
Airflow: 800 m3/h
Static Pressure: 430 Pa
Noise Level: 62 dB(A)
Bearing System: Ball Bearing
Number of blades: 5
Motor Type: DC Brushless Motor (3-phase fan drive)
Material – Frame: Metal
Material – Impeller: Plastic
Airflow Direction: Exhaust over struts
Operating Temperature: −20 ∘C to 70 ∘C
Service Life L10 at 40 ∘C: 90,000 h
Termination: 4-Wire Leads
Mounting: Flange Mount
Weight: 1.0 kg
Approvals: CE, EAC, UL, VDE, CSA
Application
The 2214F/2TDHOU-754 is an S-Force high-performance DC Axial Fan designed for robust forced air cooling in systems with high heat loads and increased back pressure. Its characteristics, including high static pressure of 430 Pa and a 4−wire control system, make the unit 2214F/2TDHOU-754 an excellent choice for temperature-sensitive applications such as IT/telecom equipment (e.g., servers and switches), large industrial power supplies, and high-power inverter cooling.
