Description

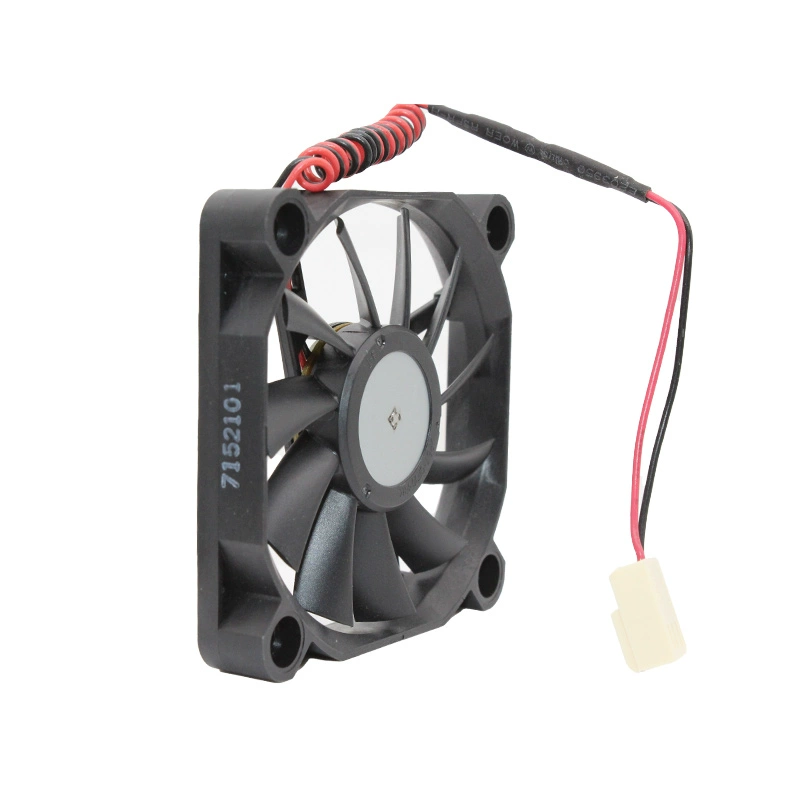

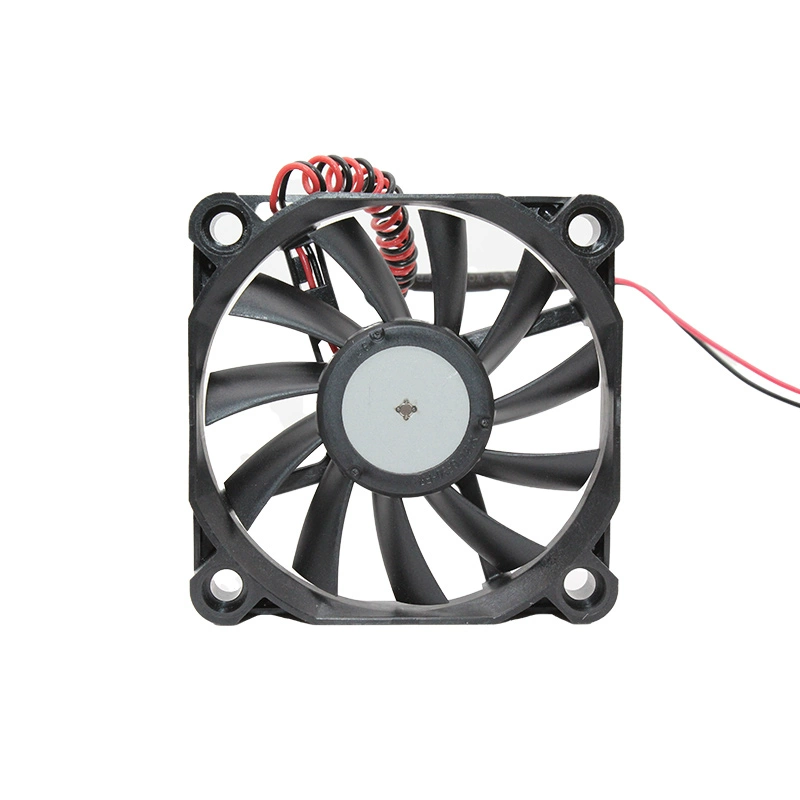

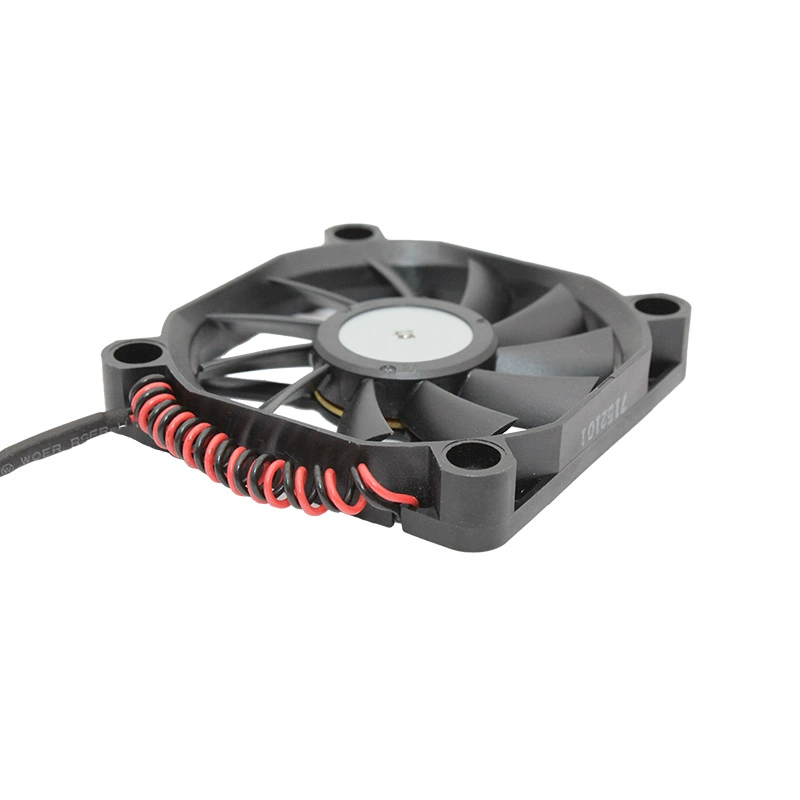

The NMB 2404KL-04W-B40-B00 is a compact 12V DC axial cooling fan. Measuring 60mm x 60mm x 10mm, this fan is designed for efficient cooling in tight spaces within various electronic devices and small enclosures. It operates at a rated voltage of 12V DC and draws a current of 0.25A, resulting in a power consumption of 3.0W. This allows it to achieve a rotational speed of 4900 RPM, delivering an airflow of 19.0 CFM and a static pressure of 0.125 inch-H2O. Its noise level is 37 dBA. The fan features durable ball bearings for an extended operational lifespan of 60,000 hours at 25°C. It comes with 2-wire leads for power connection and includes auto-restart and polarity protection.
Model Number: 2404KL-04W-B40-B00
Manufacturer: NMB Technologies Corporation
Series: 2404KL Series
Type: DC Axial Cooling Fan
Dimensions: 60mm x 60mm x 10mm
Rated Voltage: 12V DC
Operating Voltage Range: 10.2V to 13.8V DC
Rated Current: 0.25A
Rated Power: 3.0W
Speed: 4900 RPM
Airflow: 19.0 CFM (0.54 m³/min)
Static Pressure: 0.125 inch-H2O (31 Pa)
Noise Level: 37 dBA
Connector: 2-Wire Leads
Bearing Type: Ball Bearing
Life Expectancy: 60,000 hours at 25°C
Frame Material: Plastic
Impeller (Blade) Material: Plastic
Features: Auto Restart, Polarity Protection
Operating Temperature: -10°C to +70°C
Weight: 25g
Approvals/Certifications: CE, CSA, UL, VDE, RoHS Compliant
