Description

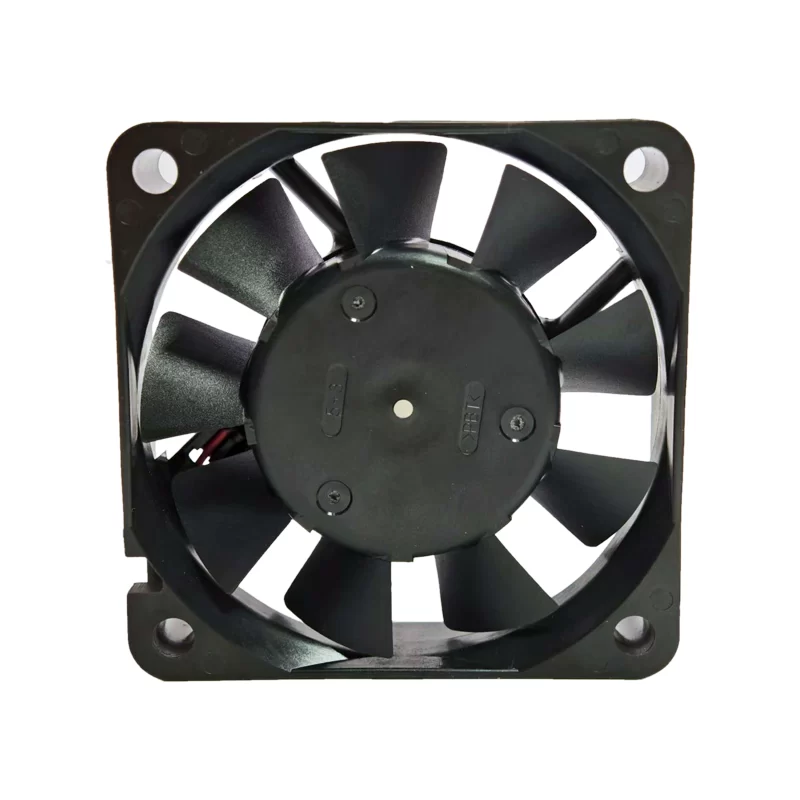

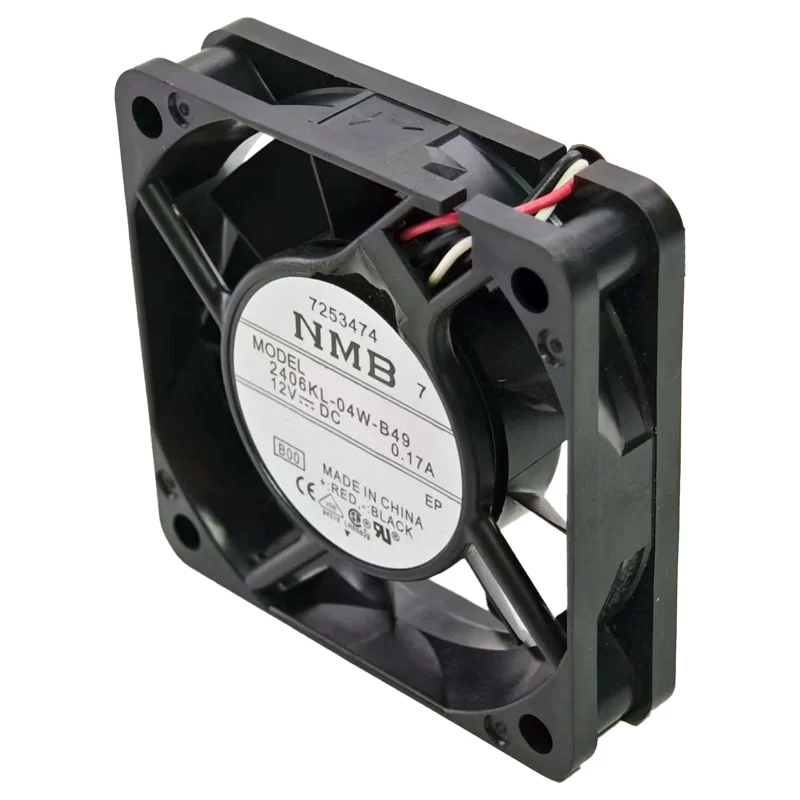

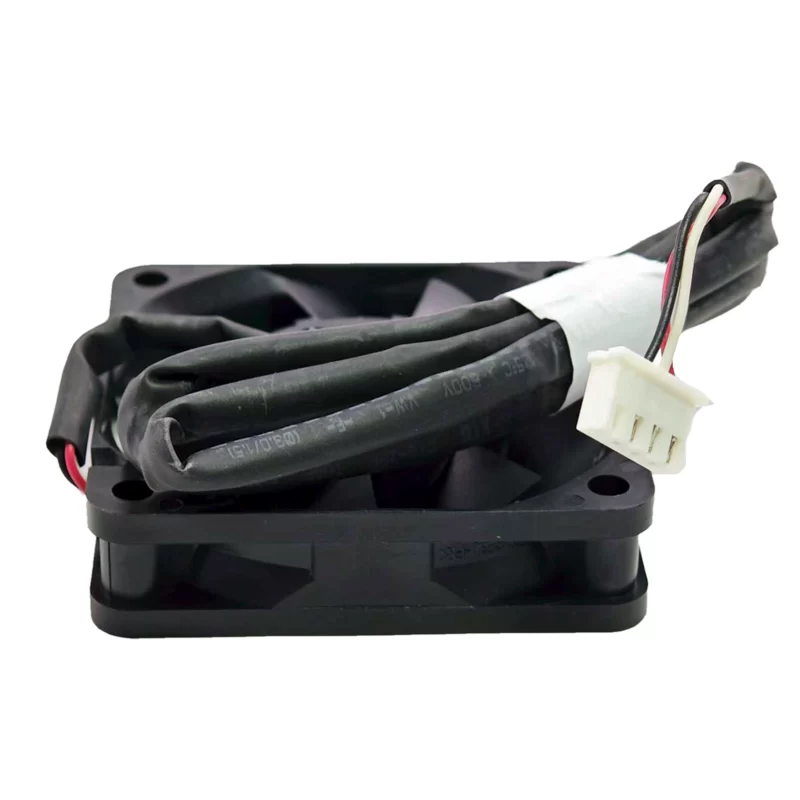

The NMB 2406KL-04W-B49-B00 is a DC Axial Fan with dimensions of 60x60x15mm. It operates on a nominal voltage of 12VDC, drawing 0.17A of current with a power consumption of 1.56W. This fan delivers an airflow of 15.9CFM at a speed of 4100RPM, generating a static pressure of 0.16inH2O, and has a noise level of 31dBA. It utilizes a ball bearing for durability and features 3 wire leads for termination with a locked rotor signal (tachometer output). With a life expectancy of 60,000 hours at 60°C, it’s suitable for cooling compact electronic devices, small servers, and industrial control systems where efficient DC airflow is needed in a slim profile.
2406KL-04W-B49-B00 Fan Parameters
Model: 2406KL-04W-B49-B00
Manufacturer: NMB Technologies Corporation
Type: DC Axial Fan
Dimensions: 60 x 60 x 15 mm
Nominal Voltage: 12 V DC
Operating Voltage: 10.8 – 13.2 V DC
Current Draw: 0.17 A
Power Consumption: 1.56 W
Airflow: 15.9 CFM
Static Pressure: 0.16 in H2O
Speed: 4100 RPM
Noise: 31 dBA
Bearing: Ball bearing
Termination: 3 Wire Leads
Weight: 45 g
Life Expectancy: 60,000 hours at 60°C
Features: Locked Rotor Signal (Tach)
Application: Compact electronic devices, small servers, industrial control systems.
