Description

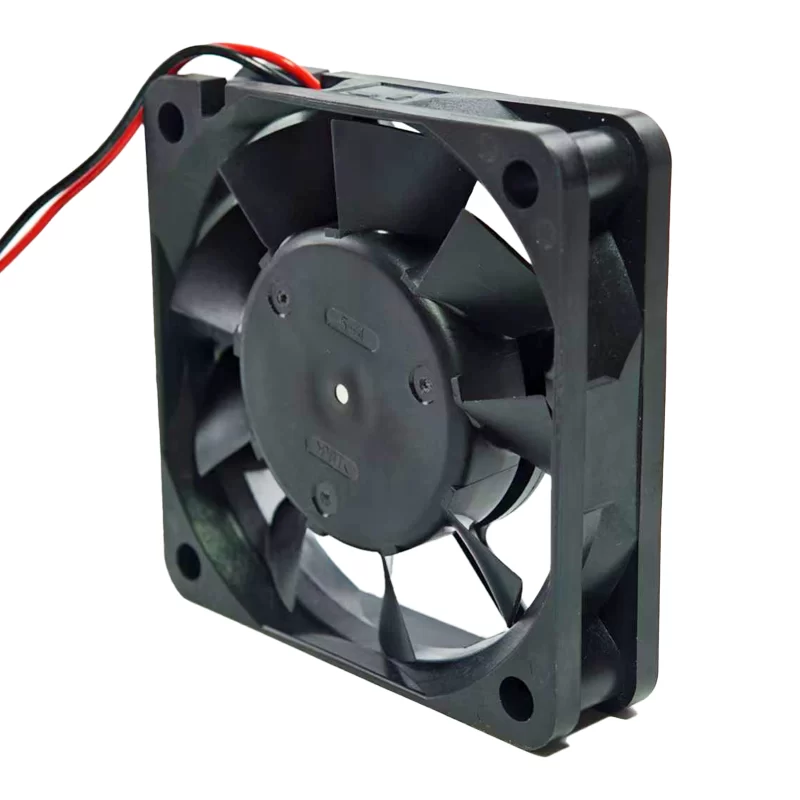

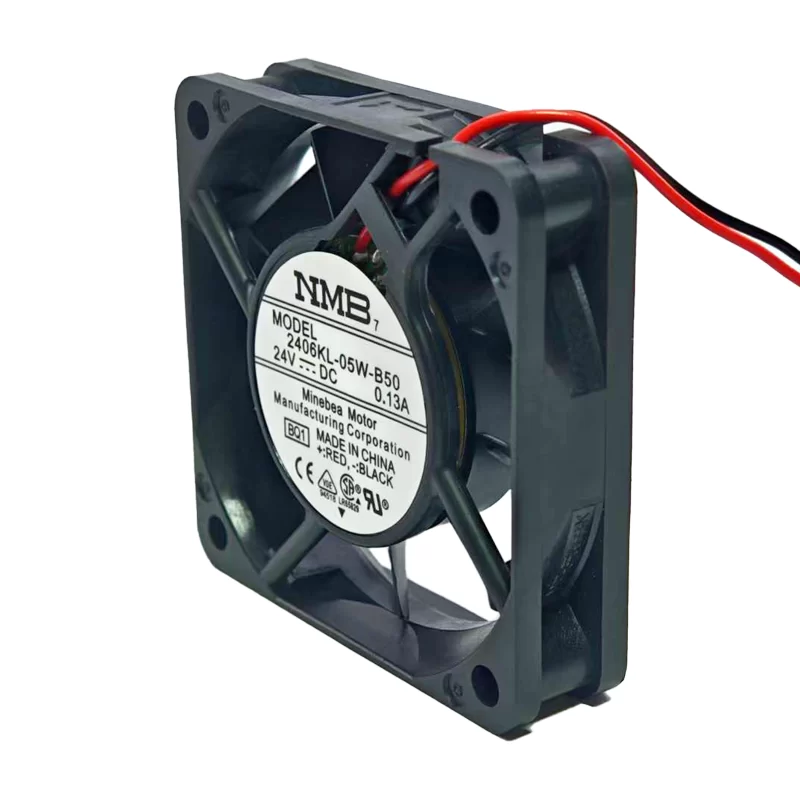

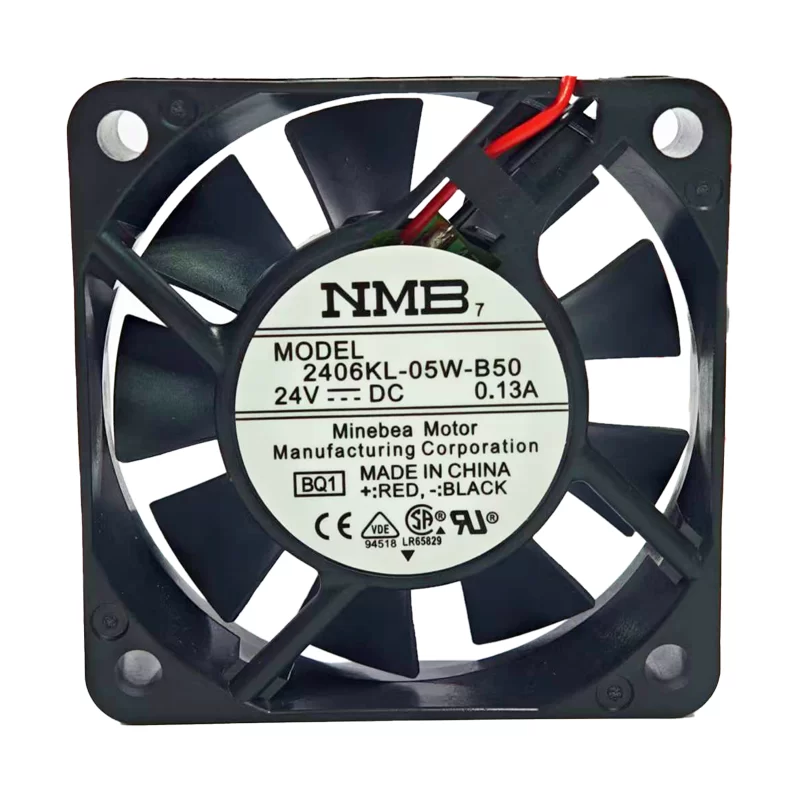

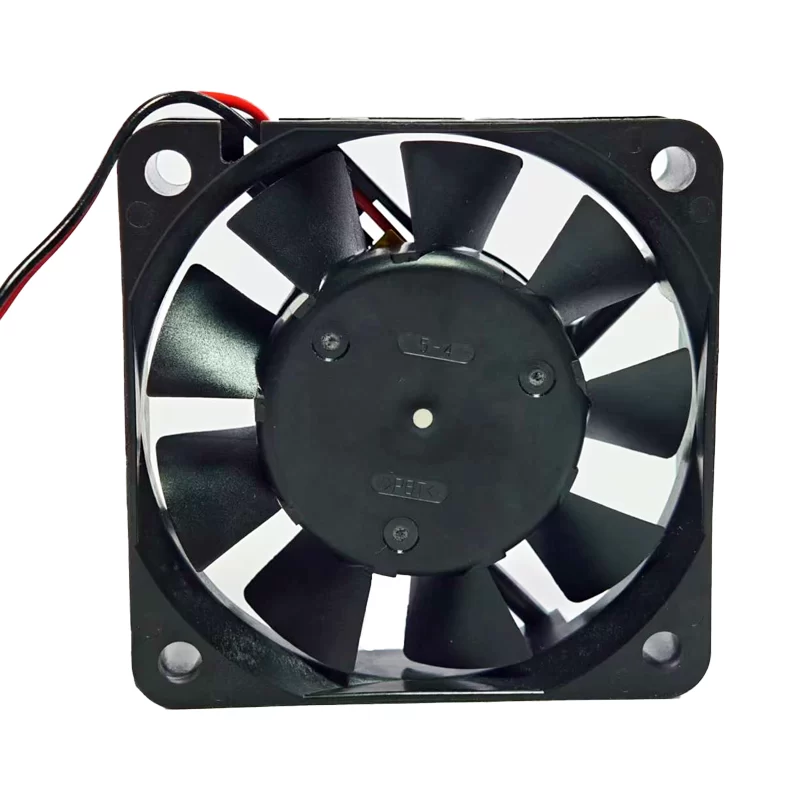

The NMB 2406KL-05W-B50 is a reliable 24V DC axial fan, measuring 60mm x 60mm x 15mm, manufactured by NMB Technologies Corporation. This compact fan is designed for efficient cooling in various electronic applications where a balance of airflow and quiet operation is important. It features durable ball bearings, contributing to a long and reliable operational lifespan of 70,000 hours at 25°C. Drawing 0.13A of current, it consumes 3.12W of power. This fan operates at a speed of 4600 RPM, delivering 18.3 CFM of airflow and generating 0.20 inches of H2O static pressure. It maintains a quiet operation with a 34 dBA noise level. Equipped with 2-wire leads, the NMB 2406KL-05W-B50 is an excellent choice for cooling components in industrial equipment, power supplies, computer systems, and other electronic enclosures that require effective and quiet thermal management in a compact form factor.
NMB brand new original authentic 2406KL-05W-B50 24V 0.13A 6015 frequency converter fan B59
Model: 2406KL-05W-B50
Manufacturer: NMB Technologies Corporation
Type: DC Axial Fan
Dimensions: 60mm x 60mm x 15mm
Nominal Voltage: 24V DC
Operating Voltage Range: 10V to 27.6V DC
Current: 0.13A
Power Consumption: 3.12W
Speed: 4600 RPM
Airflow: 18.3 CFM (0.52 m³/min)
Static Pressure: 0.20 In H2O (51.2 Pa)
Noise Level: 34 dBA
Bearing Type: Ball Bearing
Life Expectancy: 70,000 Hours (at 25°C, L10)
Termination: 2-wire leads
Frame Material: Plastic
Impeller Material: Plastic
Features: Brushless DC motor, polarity protected, auto restart.
