Description

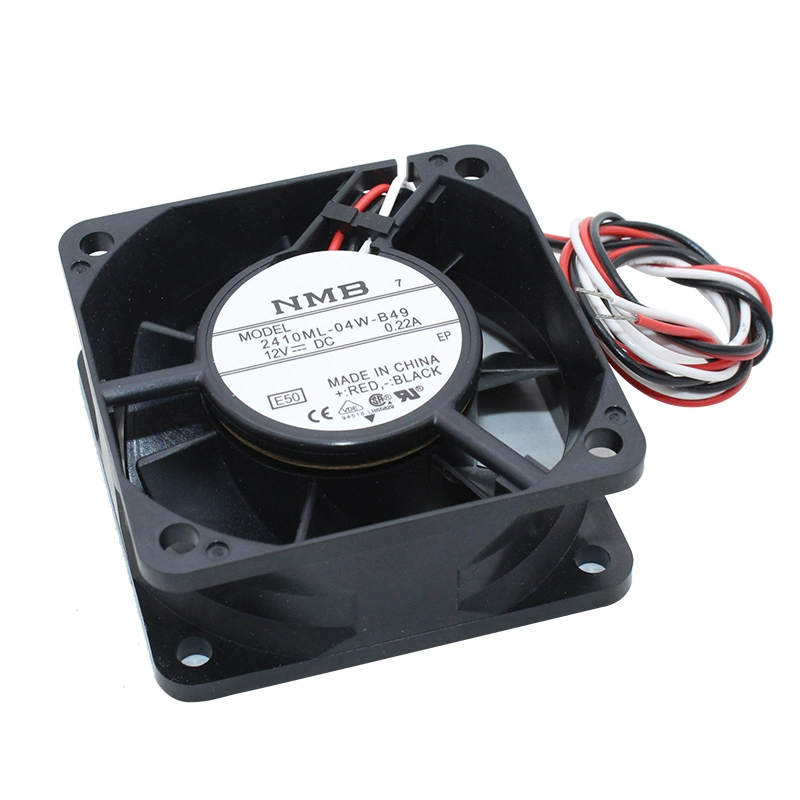

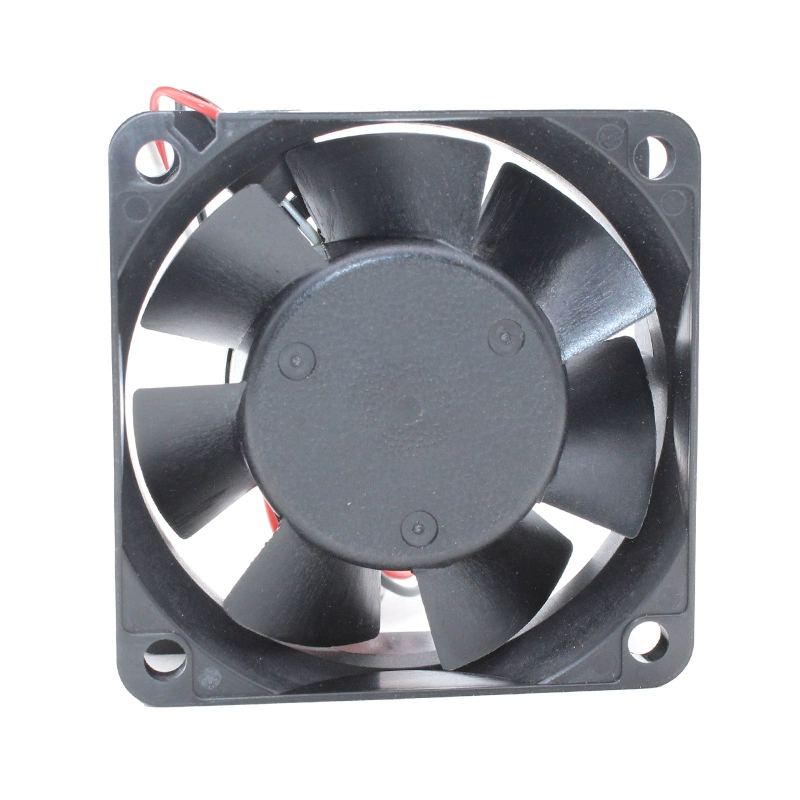

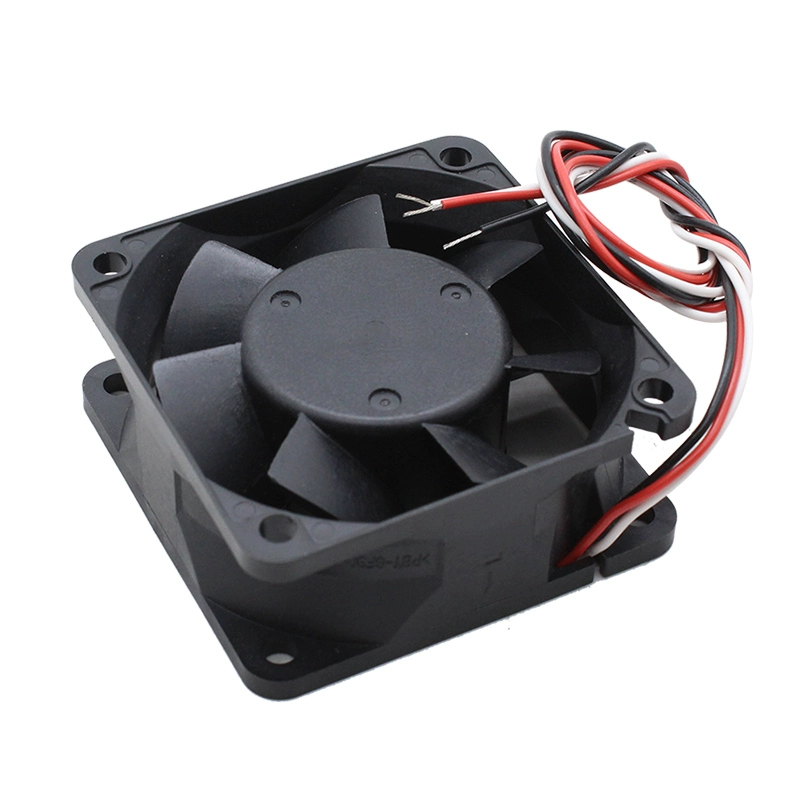

The NMB 2410ML-04W-B49-E50 is a high-performance 12V DC axial cooling fan. Measuring 60mm x 60mm x 25mm, this fan is designed for effective thermal management in compact electronic devices, servers, and other applications where space is limited but efficient cooling is required. It operates at a rated current of 0.22A, consuming 2.64W of power. This allows it to achieve a speed of 4550 RPM, delivering an airflow of 21.5 CFM and a static pressure of 0.20 inch-H2O. Its noise level is 33.5 dBA. The fan features durable ball bearings for an extended operational lifespan of 100,000 hours at 25°C. This model commonly comes with 3-wire leads, including a tachometer output for speed monitoring.
NMB 2410ML-04W-B49-E50 Fan Parameters
Model Number: 2410ML-04W-B49-E50
Manufacturer: NMB Technologies Corporation
Type: DC Axial Cooling Fan
Dimensions: 60mm x 60mm x 25mm
Rated Voltage: 12V DC
Operating Voltage Range: 6.0V to 13.8V DC
Rated Current: 0.22A
Rated Power: 2.64W (calculated: 12V * 0.22A)
Speed: 4550 RPM
Airflow: 21.5 CFM (0.61 m³/min)
Static Pressure: 0.20 inch-H2O (51.9 Pa)
Noise Level: 33.5 dBA
Connector: 3-Wire Leads
Bearing Type: Ball Bearing
Life Expectancy: 100,000 hours at 25°C (L10 Life)
Frame Material: Plastic (Black, UL94V-0)
Impeller (Blade) Material: Plastic (Black, UL94V-0)
Features: Auto Restart / Polarity Protection, Tachometer Output
Operating Temperature: -10°C to +70°C
