Description

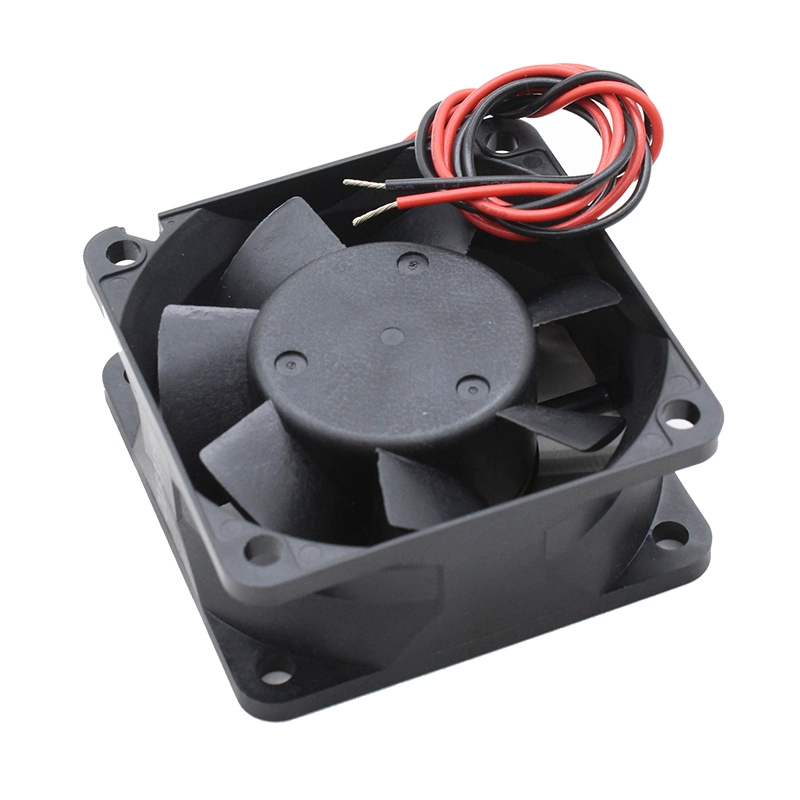

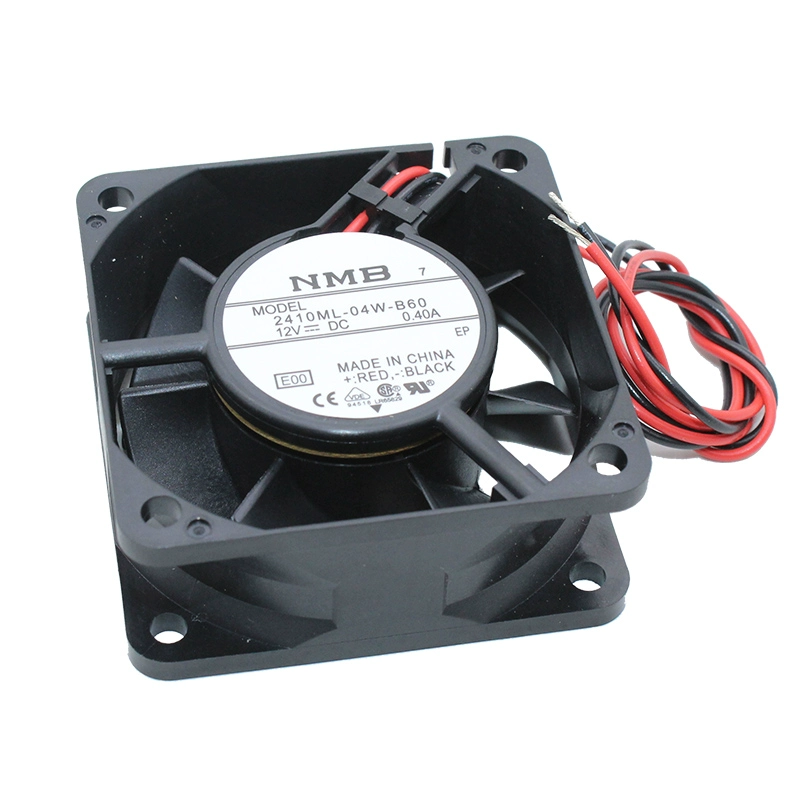

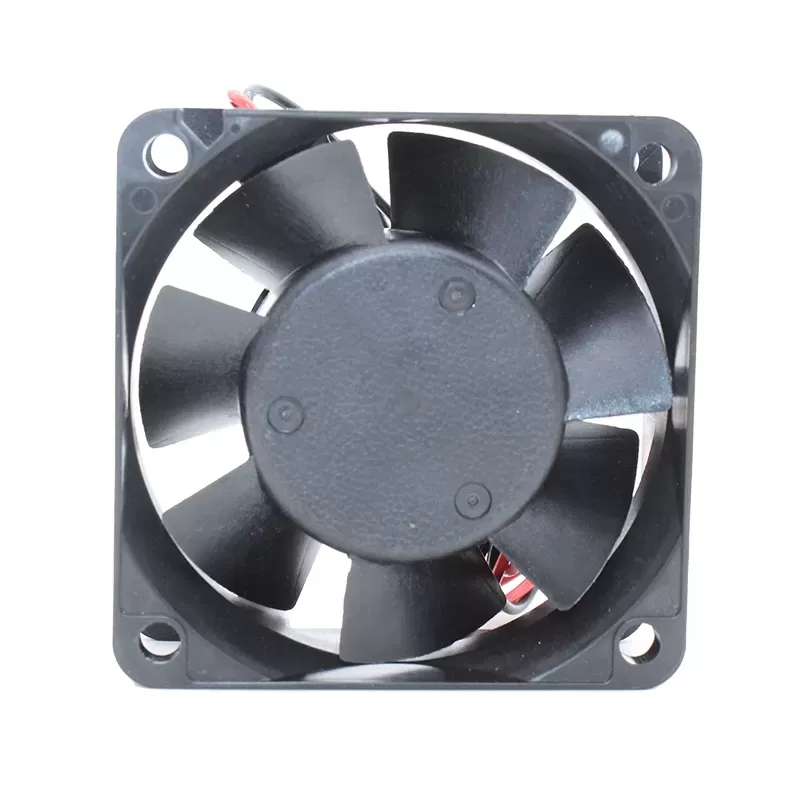

The NMB 2410ML-04W-B60-E00 is a reliable 12V DC axial cooling fan measuring 60mm x 60mm x 25mm. Operating at a rated current of 0.40A (4.8W), this fan is engineered for effective thermal management in electronic equipment. It achieves a rotational speed of 6000 RPM, delivering 38.0 CFM of airflow with a static pressure of 0.62 inch-H2O (154 Pa). Its noise output is 45.0 dBA. The fan is equipped with ball bearings for a long operational life of 60,000 hours at 60°C. Connectivity is via 2-wire leads, and integrated features include auto-restart and polarity protection, ensuring dependable performance.
Model Number: 2410ML-04W-B60-E00
Manufacturer: NMB Technologies Corporation
Type: DC Axial Cooling Fan
Dimensions: 60mm x 60mm x 25mm
Rated Voltage: 12V DC
Operating Voltage: 6.0V to 13.2V DC
Rated Current: 0.40A
Rated Power: 4.8W
Speed: 6000 RPM
Airflow: 38.0 CFM / 1.08 m³/min
Static Pressure: 0.62 inch-H2O / 154 Pa
Noise Level: 45.0 dBA
Connector: 2-Wire Leads
Bearing Type: Ball Bearing
Life Expectancy: 60,000 hours at 60°C
Operating Temperature: -10°C to 70°C
Frame Material: Plastic
Impeller Material: Plastic
Features: Auto Restart, Polarity Protection
