Description

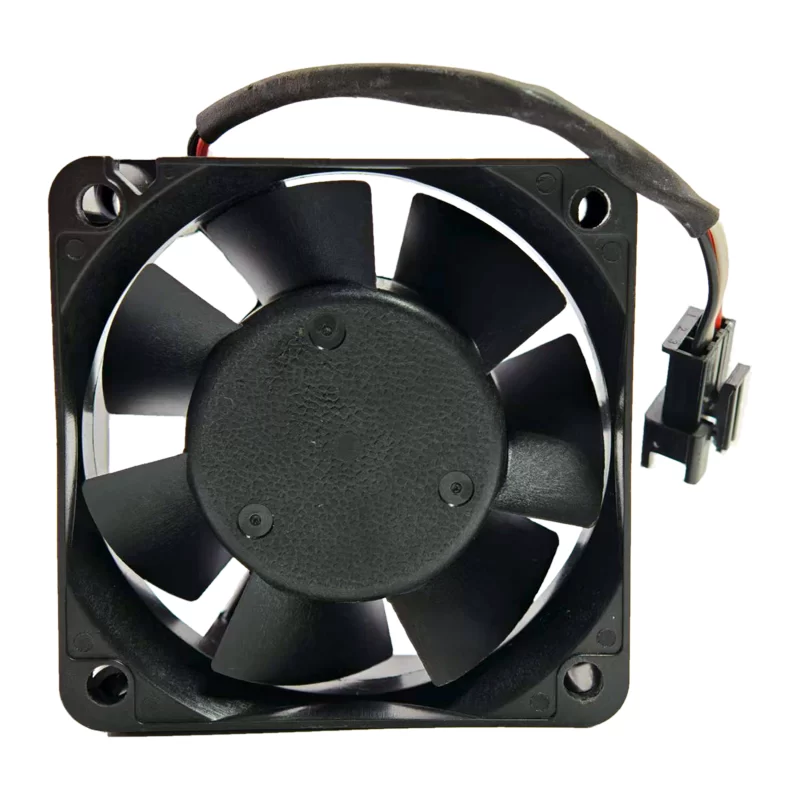

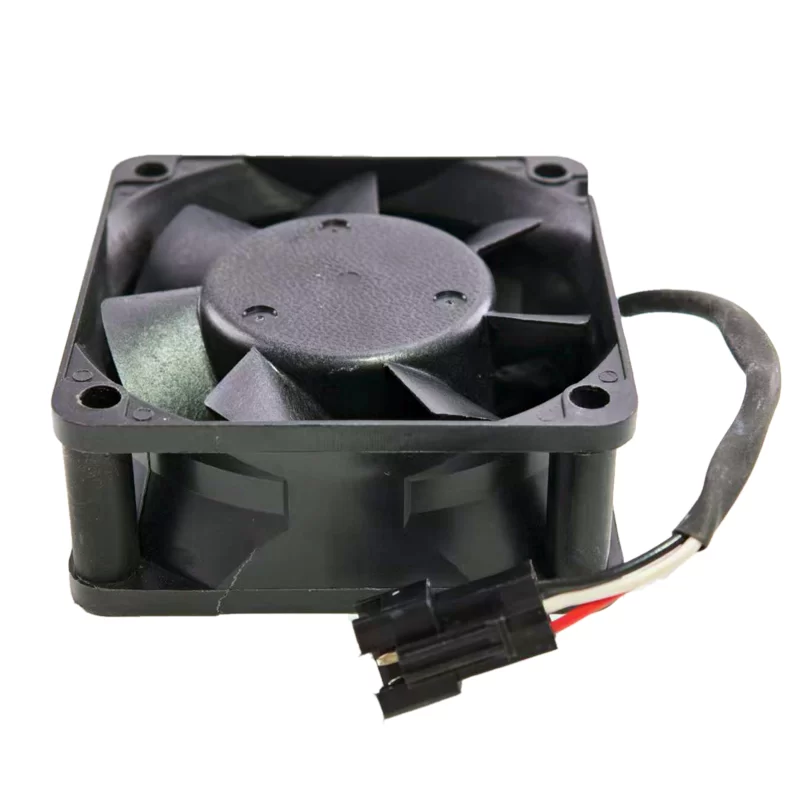

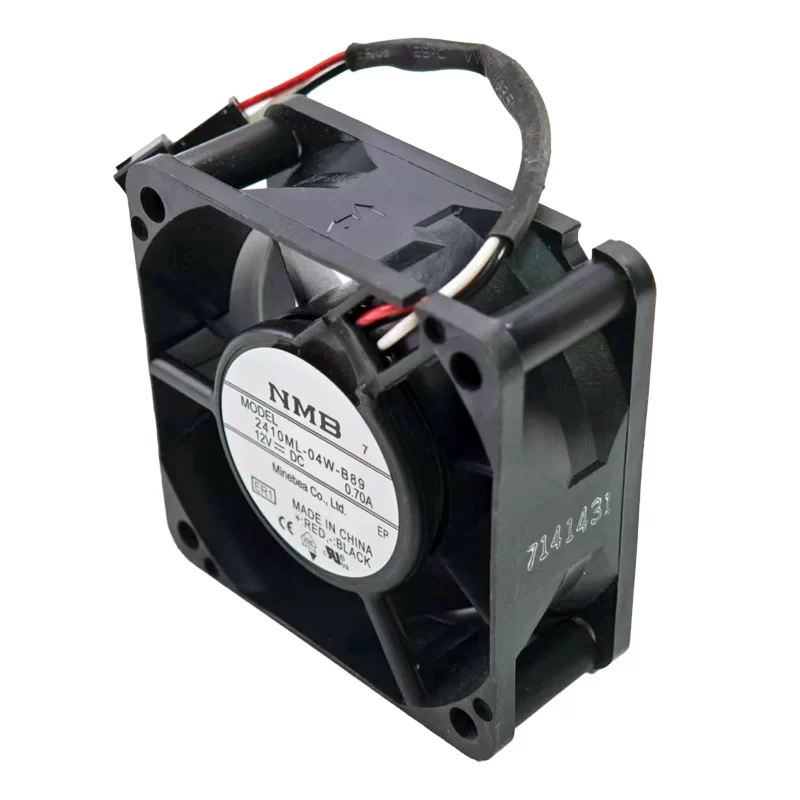

The NMB 2410ML-04W-B89-ER1 is a DC Axial Fan with dimensions of 60x60x25mm. It operates on a nominal voltage of 12VDC, drawing 0.7A of current with a power consumption of 6.2W. This fan delivers an airflow of 37CFM (1.05m³/min) at a high speed of 7800RPM, generating a static pressure of 0.57inH2O (142.5Pa), and has a noise level of 46dBA. It utilizes a ball bearing for long-term reliability and features 3 wire leads for termination with a locked rotor output. With a life expectancy of 100,000 hours at 25°C, it is suitable for high-performance cooling in compact electronic devices, industrial automation, and other applications requiring efficient DC airflow in a small form factor.
2410ML-04W-B89-ER1 Fan Parameters
Model: 2410ML-04W-B89-ER1
Manufacturer: NMB Technologies Corporation
Type: DC Axial Fan
Dimensions: 60 x 60 x 25 mm
Nominal Voltage: 12 V DC
Operating Voltage: 6 – 13.2 V DC
Current Draw: 0.7 A
Power Consumption: 6.2 W
Airflow: 37 CFM (1.05 m³/min)
Static Pressure: 0.57 in H2O (142.5 Pa)
Speed: 7800 RPM
Noise: 46 dBA
Bearing: Ball bearing
Termination: 3 Wire Leads
Weight: 65 g
Life Expectancy: 100,000 hours at 25°C (L10)
Features: Locked Rotor Output
Application: Compact electronic devices, industrial automation, high-performance cooling.
