Description

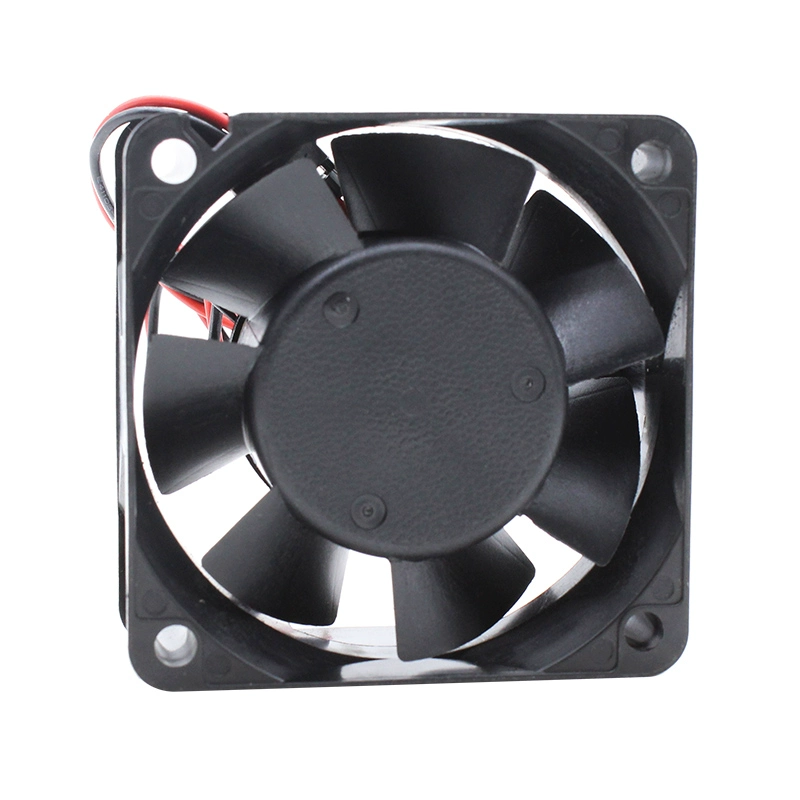

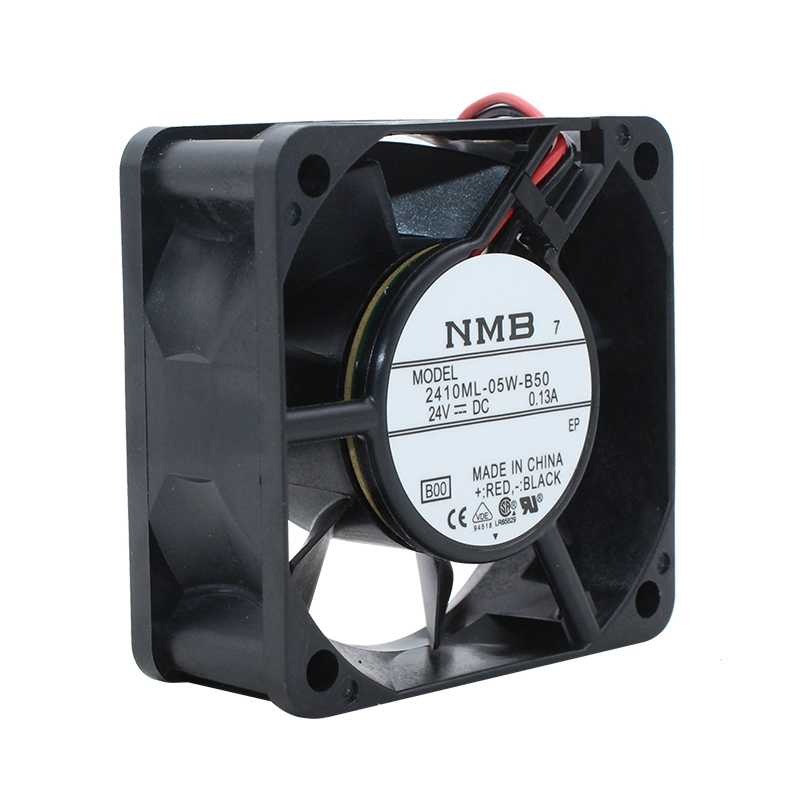

The NMB 2410ML-05W-B50-B00 is a high-performance 24V DC axial cooling fan measuring 60mm x 60mm x 25mm. Operating at a rated current of 0.13A (3.12W), this fan is engineered for effective thermal management in compact electronic equipment, often prioritizing a balance between airflow and noise. It achieves a rotational speed of 5300 RPM, delivering 25.0 CFM of airflow with a static pressure of 0.25 inch-H2O (62.2 Pa). Its noise output is 28.0 dBA, making it a relatively quiet option for its performance class. The fan is equipped with ball bearings for a long operational life of 70,000 hours. Connectivity is via 2-wire leads, and integrated features include auto-restart and polarity protection, ensuring dependable and robust operation.
Model Number: 2410ML-05W-B50-B00
Manufacturer: NMB Technologies Corporation
Type: DC Axial Cooling Fan
Dimensions: 60mm x 60mm x 25mm
Rated Voltage: 24V DC
Operating Voltage: 10.0V to 27.6V DC
Rated Current: 0.13A
Rated Power: 3.12W
Speed: 5300 RPM
Airflow: 25.0 CFM / 0.71 m³/min
Static Pressure: 0.25 inch-H2O / 62.2 Pa
Noise Level: 28.0 dBA
Connector: 2-Wire Leads
Bearing Type: Ball Bearing
Life Expectancy: 70,000 hours
Operating Temperature: -10°C to 70°C
Frame Material: Plastic
Impeller Material: Plastic
Features: Auto Restart, Polarity Protection
