Description

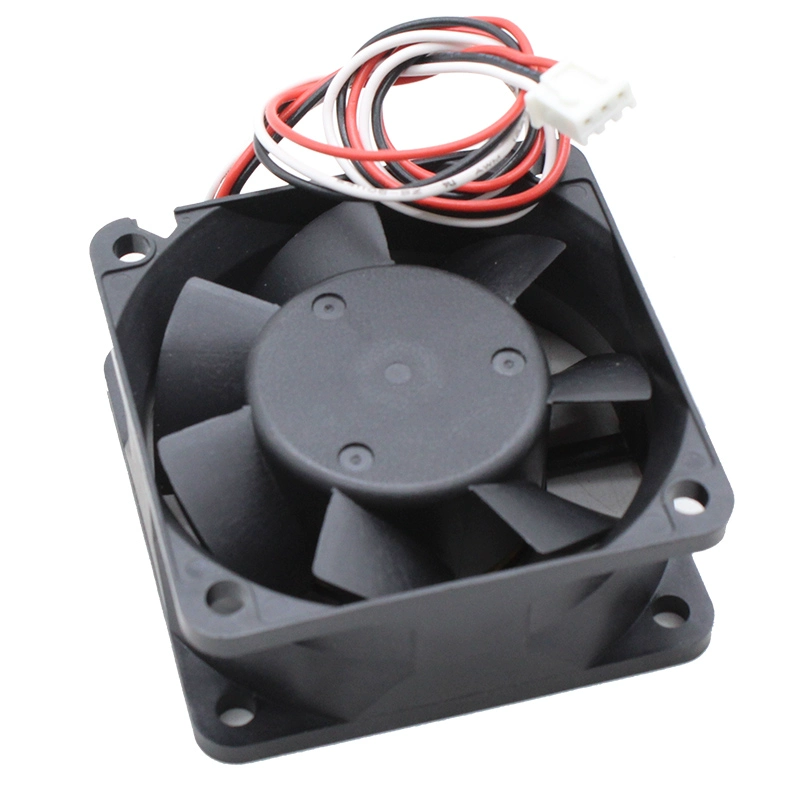

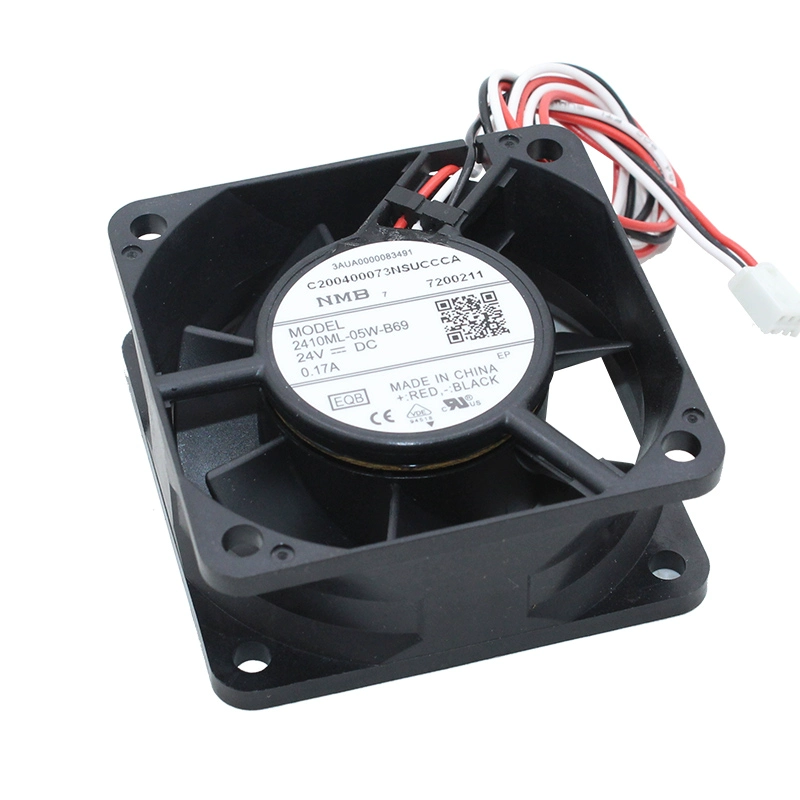

The NMB 2410ML-05W-B69-EQB is a high-performance 24V DC axial cooling fan from NMB Technologies Corporation, measuring 60mm x 60mm x 25mm. Operating at a rated current of 0.17A (4.08W), this fan is specifically designed for robust thermal management in various electronic enclosures, such as inverters, industrial equipment, and server components. It achieves a rotational speed of 5300 RPM, delivering a strong 25.0 CFM of airflow and a static pressure of 0.29 inch-H2O, while maintaining a noise level of 36.0 dBA. Equipped with durable ball bearings, it offers a long operational life. The fan features 3-wire leads, providing a tachometer output for real-time speed monitoring, along with auto-restart and reverse polarity protection, ensuring stable and reliable performance in demanding applications.
Model Number: 2410ML-05W-B69-EQB
Manufacturer: NMB Technologies Corporation
Type: DC Axial Cooling Fan
Dimensions: 60mm x 60mm x 25mm
Rated Voltage: 24V DC
Operating Voltage: 10V to 27.6V DC
Rated Current: 0.17A
Rated Power: 4.08W
Speed: 5300 RPM
Airflow: 25.0 CFM / 0.71 m³/min
Static Pressure: 0.29 inch-H2O / 73.0 Pa
Noise Level: 36.0 dBA
Connector: 3-Wire Leads
Bearing Type: Ball Bearing
Life Expectancy: 60,000 to 100,000 hours
Operating Temperature: -20°C to 70°C
Frame Material: Plastic (UL94V-0 rated)
Impeller Material: Plastic (UL94V-0 rated)
Features: Auto Restart, Reverse Polarity Protection, Speed Sensor (Tachometer Output)
