Description

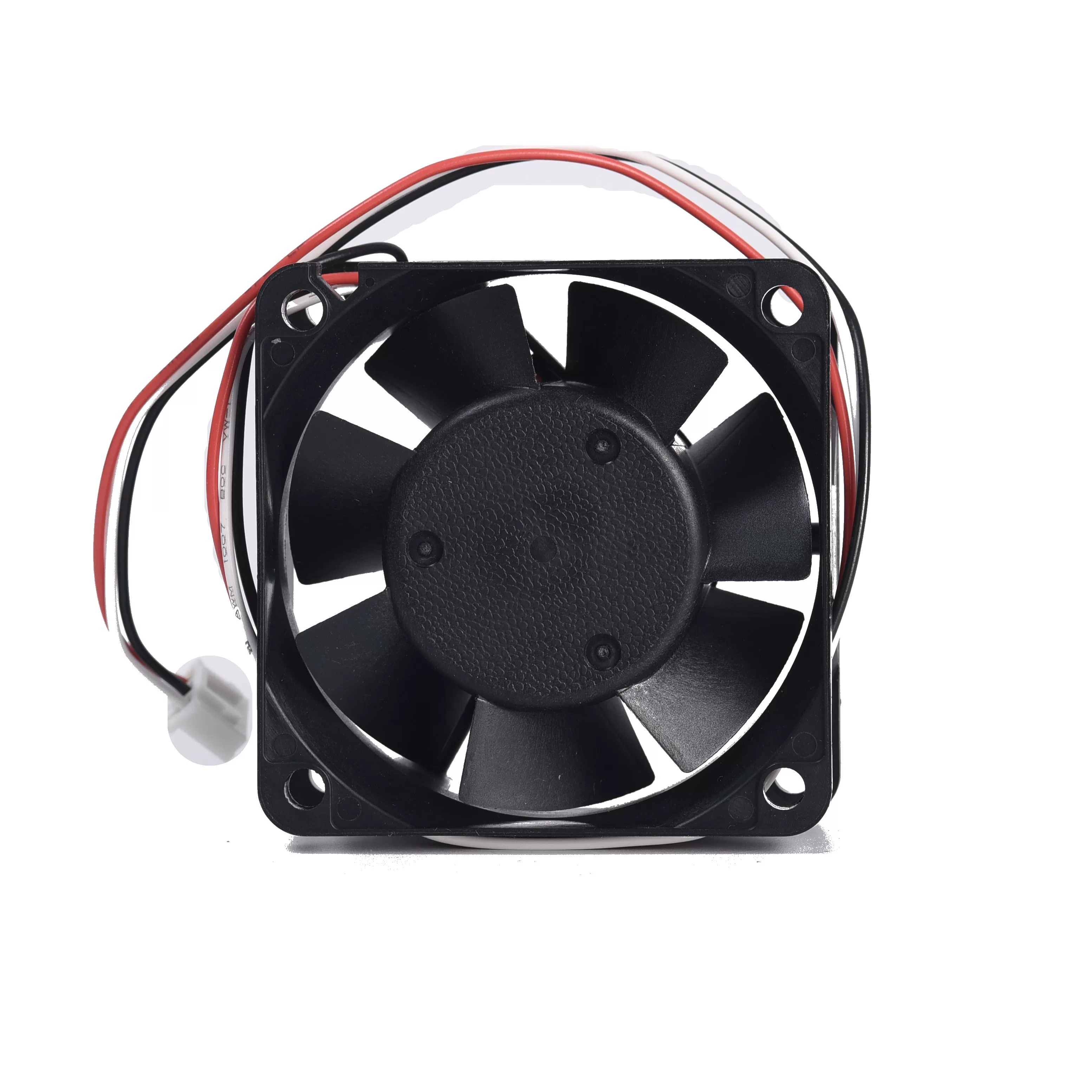

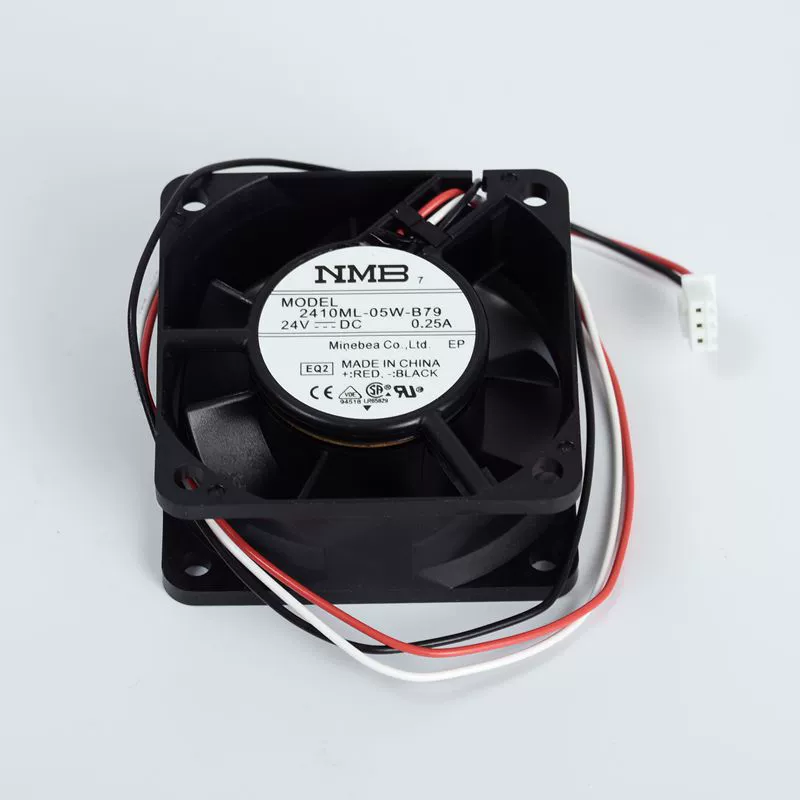

The NMB 2410ML-05W-B79-EQ2 is a compact, high-performance 24V DC axial cooling fan. Measuring 60mm x 60mm x 25mm, this fan is designed for efficient thermal management in electronic systems, industrial equipment, and other applications that require substantial airflow and static pressure. It operates at a rated voltage of 24V DC and typically draws a current of 0.19A, resulting in a power consumption of 4.56W. This allows it to achieve a rotational speed of 6800 RPM, delivering an airflow of 33.1 CFM (0.94 cubic meters/minute) and a static pressure of 0.50 inch-H2O (125 Pa). Its noise level is 45.0 dBA. The fan features durable ball bearings for an operational lifespan of 60,000 hours at 60°C. It comes with 3-wire leads for power, ground, and a tachometer output for speed monitoring, along with auto-restart and polarity protection. It is designed to operate in environments ranging from -20°C to +70°C.
Model Number: 2410ML-05W-B79-EQ2
Manufacturer: NMB Technologies Corporation
Series: ML Series
Type: DC Axial Cooling Fan
Dimensions: 60mm x 60mm x 25mm
Rated Voltage: 24V DC
Operating Voltage Range: 14V to 26.4V DC
Rated Current: 0.19A
Rated Power: 4.56W
Speed: 6800 RPM
Airflow: 33.1 CFM (0.94 m³/min)
Static Pressure: 0.50 inch-H2O (125 Pa)
Noise Level: 45.0 dBA
Connector: 3-Wire Leads
Bearing Type: Ball Bearing
Life Expectancy: 60,000 hours at 60°C
Frame Material: Plastic
Impeller Material: Plastic
Features: Auto Restart, Polarity Protection, Tachometer Output
Operating Temperature: -20°C to +70°C
Weight: 75g
Approvals/Certifications: UL, CSA, CE, RoHS Compliant
